iDatalink HRN-RR-SU1 +ADS-MRR Replacement Interface Harness for 08-14 Subaru
iDatalink HRN-RR-SU1 +ADS-MRR Replacement Interface Harness for 08-14 Subaru
iDatalink plus Subaru
Working in conjunction with the Maestro ADS-MRR module, iDatalink's HRN-RR-SU1 interface harness allows
you to connect a new iDatalink-ready car stereo in select 2008-14 Subaru vehicles. Once connected, you'll retain the
use of your steering wheel audio controls, your Subaru's amplifier and subwoofer (including the fader), and the factory
back-up camera in these vehicles. This installation harness will
not work with car stereos that do not feature an iDatalink serial port.
The package includes connectors that plug in between the Maestro module and your Subaru radio's
wiring plugs. You'll have to solder or splice together this harness's power/ground, illumination, speaker,
and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.
With your iDatalink-ready car stereo, you'll be able to set up gauges on your receiver's screen to monitor
engine performance, tire pressure, and other functions. You'll also be able to read and reset the vehicle's Check Engine codes.
Product highlights:
allows installation of a new iDatalink-ready receiver in select Subaru models (also requires the Maestro ADS-MRR module)
only works with select Alpine, JVC, Kenwood and Pioneer receivers with iDatalink port
retains steering wheel audio controls
retains your Subaru's amplifier and subwoofer (including the fader)
displays engine gauges and Check Engine codes on touchscreen
warranty: 1 year
WHATS IN THE BOX:
Radio/vehicle harness
Sub harness
Backup camera harness
Jumper harness
Blue/white wire harness
OBDII harness
Vehicle Compatibility:
FOR Subaru
2009 - 2013 Forester (Base)
2011 - 2013 Forester (with factory Bluetooth)
2008 - 2011 Imprezza (Base)
2011 - 2011 Imprezza (with factory Bluetooth)
2008 - 2011 Imprezza WRX (Base)
2011 - 2011 Imprezza WRX (with factory Bluetooth)
2010 - 2014 Legacy (Base)
2012 - 2014 Legacy (with factory Bluetooth)
2010 - 2012 Legacy (with factory Navigation and Bluetooth)
2010 - 2012 Legacy (with factory Navigation, Bluetooth and Harmon Kardon audio system)
2010 - 2011 Legacy (with factory Bluetooth and Harmon Kardon audio system)
2010 - 2014 Outback (Base)
2012 - 2014 Outback (with factory Bluetooth)
2010 - 2012 Outback (with factory Navigation and Bluetooth)
2010 - 2012 Outback (with factory Navigation, Bluetooth and Harmon Kardon audio system)
2010 - 2011 Outback (with factory Bluetooth and Harmon Kardon audio system)
2012 - 2014 WRX (Base)
2012 - 2014 WRX (with factory Bluetooth)
2012 - 2014 WRX STi (Base)
2012 - 2014 WRX STi (with factory Bluetooth)

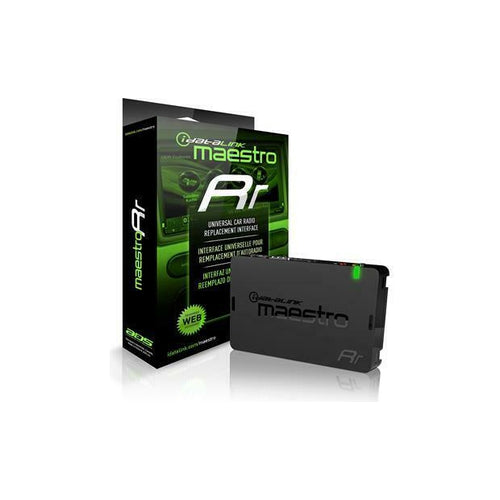

Maestro ADS-MRR Universal Radio Replacement and Steering Wheel Interface
Web-programmable radio replacement interface for integration with factory systems including steering wheel controls,
media player, hands-free telephone, voice commands, and satellite radio modules. Also displays vehicle information
(performance gauges, climate controls, battery voltage, check engine codes and more) with iDatalink-compatible radios.
Basic radio replacement features also available with non-iDatalink-compatible radios.
