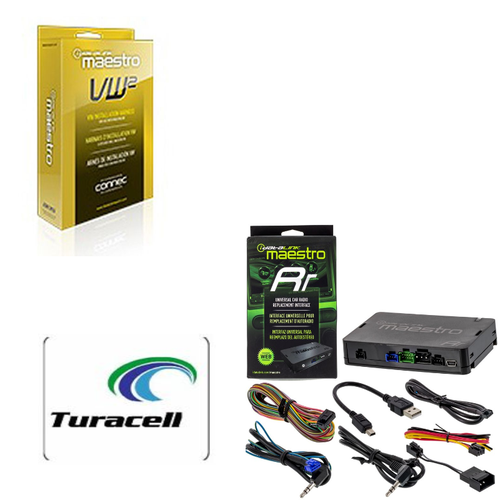

iDATALINK MAESTRO ADS-MRR + HRN-RR-VW2 ADAPTER For 2016 - 2018 VOLKSWAGON
iDATALINK MAESTRO HRN-RR-VW2
iDatalink plus VW
iDatalink's HRN-RR-VW2 interface harness allows you to connect an iDatalink-ready car stereo in select 2016-up
Volkswagen vehicles, working in conjunction with iDatalink's Maestro ADS-MRR module. Once connected,
you'll retain the use of your steering wheel audio controls in these vehicles. You'll also gain the ability to
assign secondary functions to your steering wheel audio controls.
The package includes connectors that plug in between the Maestro module, your Volkswagen's radio's wiring plugs,
and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker,
and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.
It also provides the navigation outputs you'll need if you're connecting a multimedia receiver.
Once the new receiver has been installed, you'll be able to set up gauges on its screen to monitor engine performance,
tire pressure, and other functions. You can even send navigation information from your new
receiver to the multi-function display in your VW's instrument cluster.
Installation note: The HRN-RR-VW2 harness must be used with the
iDatalink Maestro ADS-MRR module to connect a new car stereo to your Volkswagen vehicle.
allows installation of a new iDatalink-ready receiver in select Volkswagen vehicles (also requires the Maestro ADS-MRR module)
retains the use of your steering wheel audio controls
displays engine performance data and other vehicle data on touchscreen
displays radar info onscreen with select radios and detectors
warranty: 1 year

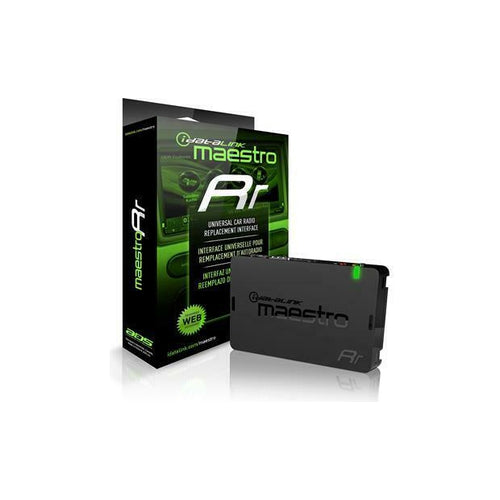

Maestro ADS-MRR Universal Radio Replacement and Steering Wheel Interface
Web-programmable radio replacement interface for integration with factory systems including steering wheel controls,
media player, hands-free telephone, voice commands, and satellite radio modules. Also displays vehicle information
(performance gauges, climate controls, battery voltage, check engine codes and more) with iDatalink-compatible radios.
Basic radio replacement features also available with non-iDatalink-compatible radios.
Allows installation of a new car stereo in select 2006-up Chrysler, Fiat, Ford, GM, Honda, Subaru, Toyota, and VW vehicles
Retains factory convenience features (OnStar, SYNC, Uconnect, and more) with select Kenwood, Alpine, Pioneer, and JVC touchscreen receivers
Displays engine performance data on touchscreen with select Kenwood, JVC, Pioneer, and Alpine multimedia receivers
