iDATALINK MAESTRO ADS-MRR2 + HRN-RR-CH1 Harness Adapter For CHRYSLER Dodge

Idatalink,ADS-MRR-2 Advanced Car Radio Replacement Interface

Advanced Radio Replacement Interface, Enabling Bluetooth Programming For Ios & Androids

Maestro RR2 adds built-in Bluetooth. Like the original RR, installers must flash the device, or download software to match

the car model. With the new Bluetooth version, the installer may flash the device wirelessly from a smartphone.

He no longer needs to be tethered to a computer.

Additionally, the new RR2 allows Kenwood radios to act as the readout screen for two ESCORT radar detectors:

the iX Ci custom-installed detector and the portable MAX Ci. Drivers can receive alerts and adjust radar settings through the car radio.

(The original RR works with K40 detectors).

The RR2 has three programmable outputs so it is able to link side cameras into the turn signals of new cars to add blind spot detection.

It can also trigger LED lighting so, a lightbar might be controlled by a steering wheel button.

RR2 has the ability to work with 2018 and newer vehicles with a gateway at the OBD2, including Chrysler, Dodge and Jeep vehicles.

The device is backwards compatible with earlier aftermarket radios that worked with the original RR and it will work with all existing T-harnesses.

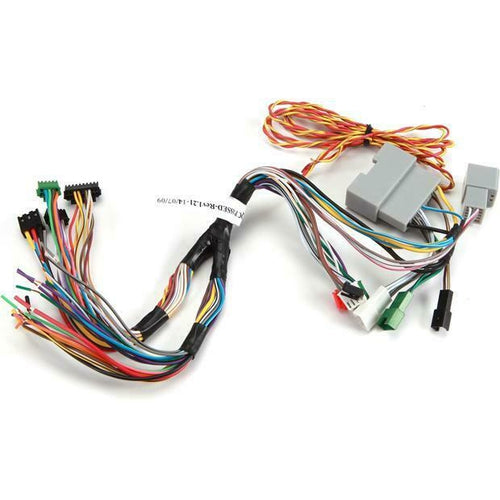

idataLink Maestro HRN-RR-CH1 Radio Replacement and Steering Wheel Interface Harness

Unit includes: Radio replacement harness and Instruction manual

Features:

Allows the installation of an aftermarket car stereo touchscreen receiver and retain OEM features and factory amplied audio system

Plug & Play T-Harness for use with idataLink ADS-MRR Radio Replacement and Steering Wheel Interface module

Provides inputs and output to aftermarket car stereo receiver (Speaker, Power/Ground, Illumination, and Navigation)

Compatible with select 2007 - 2017 Dodge and Chrysler vehicles

Retain factory steering wheel controls and amplifier with aftermarket stereo

Retains Uconnect with voice command and the factory satellite radio with select Alpine, JVC, Kenwood and Pioneer receivers

Displays engine performance data on touchscreen with select Alpine, JVC, Kenwood and Pioneer receivers

To retain factory rear seat entertainment system add the idataLink HRN-AV-CH1 RSE and Back up Camera Retention harness

Instruction manual

Vehicle Compatibility:

For Chrysler

2007 - 2014 200

2008 - 2010 300

2008 - 2009 Aspen

2007 - 2010 Sebring

2008 - 2016 Town and Country

For Dodge

2008 - 2014 Avenger

2009 - 2012 Caliber

2008 - 2014 Challenger

2008 - 2010 Charger

2008 - 2011 Dakota

2008 - 2009 Durango

2011 - 2014 Durango

2008 - 2017 Grand Caravan

2009 - 2010 Journey

2008 - 2008 Magnum

2007 - 2011 Nitro

2009 - 2009 RAM 1500

For Jeep

2008 - 2010 Commander

2009 - 2017 Compass

2008 - 2013 Grand Cherokee

2008 - 2012 Liberty

2009 - 2017 Patriot

2007 - 2018 Wrangler

For Mitsubishi

2008 - 2009 Raider

For RAM

2010 - 2012 1500

2010 - 2012 2500

2010 - 2012 3500

For Volkswagen

2009 - 2014 Routan
