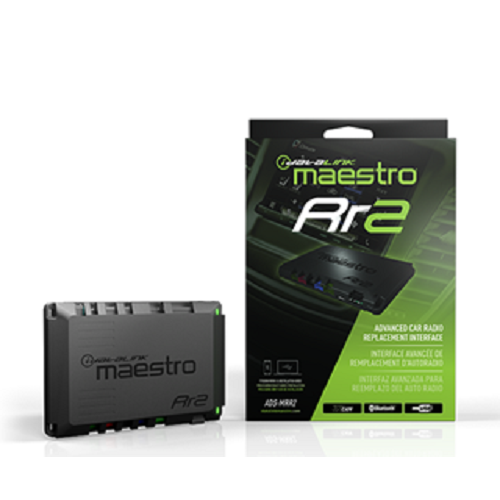

iDATALINK MAESTRO ADS-MRR2 + HRN-RR-FO1 T-Harness For Ford Lincoln Mazda


Idatalink,ADS-MRR-2 Advanced Car Radio Replacement Interface

Advanced Radio Replacement Interface, Enabling Bluetooth Programming For Ios & Androids

Maestro RR2 adds built-in Bluetooth. Like the original RR, installers must flash the device, or download software to match

the car model. With the new Bluetooth version, the installer may flash the device wirelessly from a smartphone.

He no longer needs to be tethered to a computer.

Additionally, the new RR2 allows Kenwood radios to act as the readout screen for two ESCORT radar detectors:

the iX Ci custom-installed detector and the portable MAX Ci. Drivers can receive alerts and adjust radar settings through the car radio.

(The original RR works with K40 detectors).

The RR2 has three programmable outputs so it is able to link side cameras into the turn signals of new cars to add blind spot detection.

It can also trigger LED lighting so, a lightbar might be controlled by a steering wheel button.

RR2 has the ability to work with 2018 and newer vehicles with a gateway at the OBD2, including Chrysler, Dodge and Jeep vehicles.

The device is backwards compatible with earlier aftermarket radios that worked with the original RR and it will work with all existing T-harnesses.

iDatalink Connec HRN-RR-FO1

This HRN-RR-FO1 wiring adapter from iDatalink allows you to connect a new car stereo in select 2006-up Ford, Lincoln, Mercury, and Mazda vehicles, working in conjunction with iDatalink's Maestro ADS-MRR2 module. Once connected, you'll retain the use of your steering wheel audio controls and your factory amp, if present.

The package includes three connectors that plug in between the Maestro module, your Ford radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Product highlights:

allows installation of a new receiver in select Ford-built vehicles (also requires the Maestro ADS-MRR module)

displays engine performance data on touchscreen with select Alpine, JVC, Kenwood and Pioneer receivers

retains the use of your steering wheel audio controls and factory amp


E-series 2008-2014

Edge 2007-2010

Escape 2008-2012

Expedition 2007-2014

Explorer 2006-2010

F-150 2009-2014

F-250 2008-2016

F-350 2008-2016

F-450 2008-2016

F-550 2008-2016

Flex 2009-2012

Focus 2008-2011

Fusion 2006-2012

Mustang 2007-2014

Sport Trac 2007-2010

Taurus 2008-2012


MKS 2009-2012

MKT 2010-2012

MKX 2007-2010

MKZ 2006-2012

Mark Lt 2010-2011

Navigator 2007-2014

Zephyr 2006


Tribute 2007-2011


Mariner 2008-2010

Milan 2006-2011

Mountaineer 2006-2010

Sable 2008-2009
