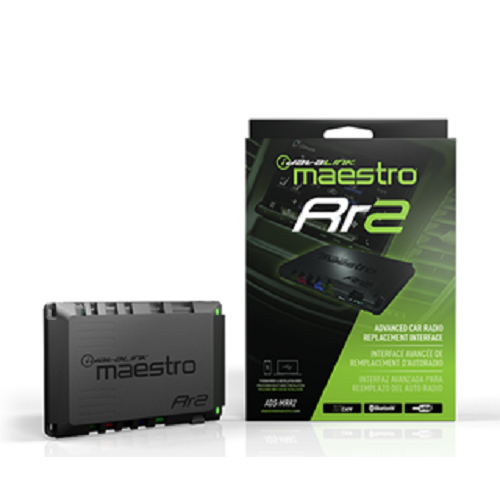

iDATALINK MAESTRO ADS-MRR2 + HRN-RR-GM3 Plug And Play T-Harness For Gm & Chevy

Idatalink,ADS-MRR-2 Advanced Car Radio Replacement Interface

Advanced Radio Replacement Interface, Enabling Bluetooth Programming For Ios & Androids

Maestro RR2 adds built-in Bluetooth. Like the original RR, installers must flash the device, or download software to match

the car model. With the new Bluetooth version, the installer may flash the device wirelessly from a smartphone.

He no longer needs to be tethered to a computer.

Additionally, the new RR2 allows Kenwood radios to act as the readout screen for two ESCORT radar detectors:

the iX Ci custom-installed detector and the portable MAX Ci. Drivers can receive alerts and adjust radar settings through the car radio.

(The original RR works with K40 detectors).

The RR2 has three programmable outputs so it is able to link side cameras into the turn signals of new cars to add blind spot detection.

It can also trigger LED lighting so, a lightbar might be controlled by a steering wheel button.

RR2 has the ability to work with 2018 and newer vehicles with a gateway at the OBD2, including Chrysler, Dodge and Jeep vehicles.

The device is backwards compatible with earlier aftermarket radios that worked with the original RR and it will work with all existing T-harnesses.

iDatalink HRN-RR-GM3 Interface Harness

iDatalink working with GM

iDatalink's HRN-RR-GM3 interface harness allows you to connect an iDatalink-ready car stereo in select 2014-up GM-made vehicles,

working in conjunction with iDatalink's Maestro ADS-MRR2 module. Once connected, you'll retain the use of your steering wheel audio controls,

your OnStar® system with its Bluetooth® capability, your factory backup camera, and your warning chimes. Plus, you'll be able to assign

secondary functions to your steering wheel audio controls.

Keep in touch with your truck

You'll be able to set up gauges on your receiver's screen to monitor engine performance, tire pressure, and other functions. In addition,

you will retain full access to your factory vehicle customization options on your new radio's screen.

Installation

The package includes connectors that plug in between the Maestro module, your vehicle's radio's wiring plugs, and your new car stereo.

You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires

to the corresponding wires on your aftermarket receiver's wiring harness.

Product highlights:

allows installation of a new receiver with an iDatalink port in select GM vehicles (also requires the Maestro ADS-MRR module)

retains the use of your steering wheel audio controls and warning chimes

retains OnStar (with Bluetooth), factory backup cam, vehicle customization options

displays engine performance data on touchscreen

Vehicle Compatibility:

For Chevy

Colorado 2015-2018

Silverado 1500 2014-2018

Silverado 2500 2015-2018

Silverado 3500 2015-2018

Suburban 2015-2018

Tahoe 2015-2018

GMC

Canyon 2015-2018

Sierra 1500 2014-2018

Sierra 2500 2015-2018

Sierra 3500 2015-2018

Yukon 2016-2018

Yukon Denali 2016-2018
