iDATALINK MAESTRO ADS-MRR2 + HRN-RR-GM4 Plug And Play For Cadillac,GM,Chevy

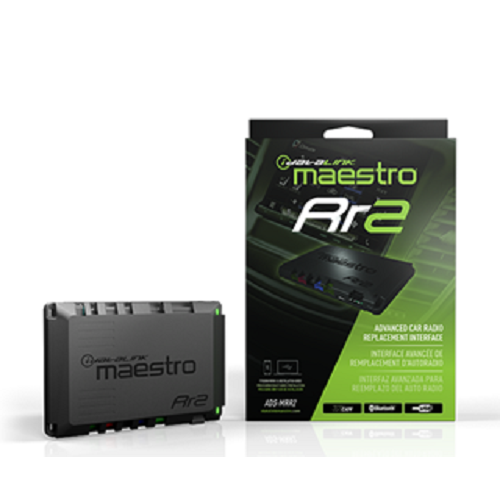

Idatalink,ADS-MRR-2 Advanced Car Radio Replacement Interface

Advanced Radio Replacement Interface, Enabling Bluetooth Programming For Ios & Androids

Maestro RR2 adds built-in Bluetooth. Like the original RR, installers must flash the device, or download software to match

the car model. With the new Bluetooth version, the installer may flash the device wirelessly from a smartphone.

He no longer needs to be tethered to a computer.

Additionally, the new RR2 allows Kenwood radios to act as the readout screen for two ESCORT radar detectors:

the iX Ci custom-installed detector and the portable MAX Ci. Drivers can receive alerts and adjust radar settings through the car radio.

(The original RR works with K40 detectors).

The RR2 has three programmable outputs so it is able to link side cameras into the turn signals of new cars to add blind spot detection.

It can also trigger LED lighting so, a lightbar might be controlled by a steering wheel button.

RR2 has the ability to work with 2018 and newer vehicles with a gateway at the OBD2, including Chrysler, Dodge and Jeep vehicles.

The device is backwards compatible with earlier aftermarket radios that worked with the original RR and it will work with all existing T-harnesses.

IDATALINK HRN-RR-GM4

Keep your GM factory features

iDatalink's HRN-RR-GM4 wiring adapter allows you to connect an iDatalink-ready car stereo in select 2016-up Chevrolet and GMC trucks with 7" screens, working in conjunction with iDatalink's Maestro ADS-MRR module. Once connected, you'll retain the use of your steering wheel audio controls in these vehicles, as well as your warning chimes and backup camera. You'll still retain OnStar service and Bluetooth hands-free operation. You'll also be able to set up gauges on your receiver's screen to measure engine performance, tire pressure, and other vehicle metrics.

Works with the Maestro module

The package includes connectors that plug in between the Maestro module, your factory radio's wiring plugs, and the serial port on your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Installation note: The HRN-RR-GM4 adapter must be used with the iDatalink Maestro ADS-MRR module to connect a new iDatalink-compatible car stereo to your General Motors vehicle. If you plan on using this harness in a GM vehicle with a factory amp, you'll have to either bypass the amplifier or install an aftermarket amp.

Product highlights:

allows installation of a new receiver with an iDatalink port in select GM vehicles (also requires the Maestro ADS-MRR module)

retains the use of your steering wheel audio controls

retains OnStar and Bluetooth hands-free operation

displays engine performance data on touchscreen

warranty: 1 year

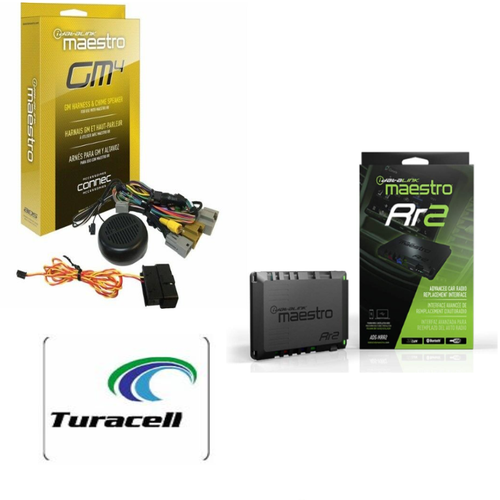

WHATS IN THE BOX:

15" Vehicle harness (for iDatalink Maestro)

External chime module (attached 38" harness)

OBDII harness (attached 48" harness)

3" Jumper harness

Vehicle Compatibility:

FOR Cadillac

2012 - 2014 Escalade (With factory navigation)

FOR Chevrolet

2017 - 2018 Colorado (7" Factory Radio)

2016 - 2018 Silverado 1500 (Long Box with 7" Factory Radio)

2016 - 2018 Silverado 1500 (Short Box with 7" Factory Radio)

2016 - 2018 Silverado 2500 (Long Box with 7" Factory Radio)

2016 - 2018 Silverado 2500 (Short Box with 7" Factory Radio)

2016 - 2018 Silverado 3500 (Long Box with 7" Factory Radio)

2016 - 2018 Silverado 3500 (Short Box with 7" Factory Radio)

FOR GMC

2017 - 2018 Canyon (7" Factory Radio)

2016 - 2018 Sierra 1500 (Long Box with 7" Factory Radio)

2016 - 2017 Sierra 1500 (Short Box with 7" Factory Radio)

2016 - 2018 Sierra 2500 (Long Box with 7" Factory Radio)

2016 - 2018 Sierra 2500 (Short Box with 7" Factory Radio)

2016 - 2018 Sierra 3500 (Long Box with 7" Factory Radio)

2016 - 2018 Sierra 3500 (Short Box with 7" Factory Radio)
