iDATALINK MAESTRO ADS-MRR2 + HRN-RR-HK1 Plug And Play For Hyundai And Kia

Sold out

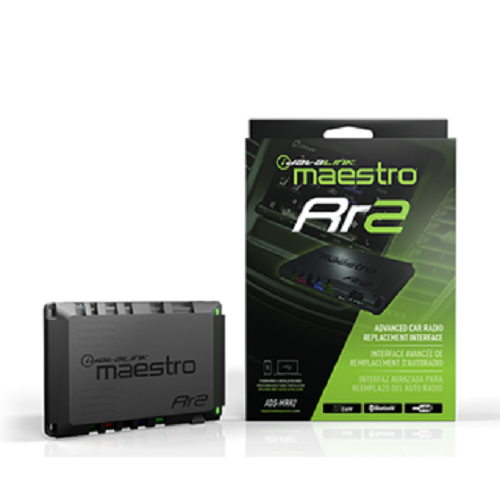

Idatalink,ADS-MRR-2 Advanced Car Radio Replacement Interface

Advanced Radio Replacement Interface, Enabling Bluetooth Programming For Ios & Androids

Maestro RR2 adds built-in Bluetooth. Like the original RR, installers must flash the device, or download software to match

the car model. With the new Bluetooth version, the installer may flash the device wirelessly from a smartphone.

He no longer needs to be tethered to a computer.

Additionally, the new RR2 allows Kenwood radios to act as the readout screen for two ESCORT radar detectors:

the iX Ci custom-installed detector and the portable MAX Ci. Drivers can receive alerts and adjust radar settings through the car radio.

(The original RR works with K40 detectors).

The RR2 has three programmable outputs so it is able to link side cameras into the turn signals of new cars to add blind spot detection.

It can also trigger LED lighting so, a lightbar might be controlled by a steering wheel button.

RR2 has the ability to work with 2018 and newer vehicles with a gateway at the OBD2, including Chrysler, Dodge and Jeep vehicles.

The device is backwards compatible with earlier aftermarket radios that worked with the original RR and it will work with all existing T-harnesses.

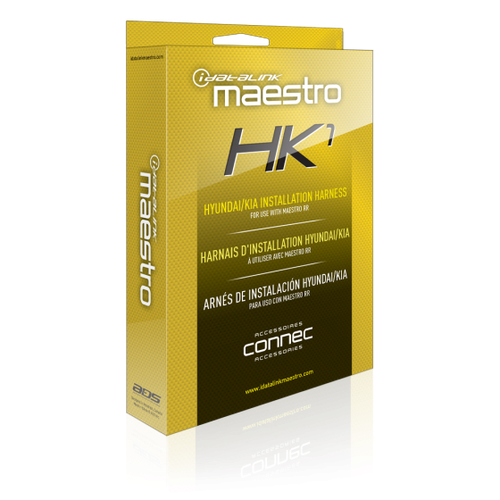

iDatalink HRN-RR-HK1 T harness Plug And Play

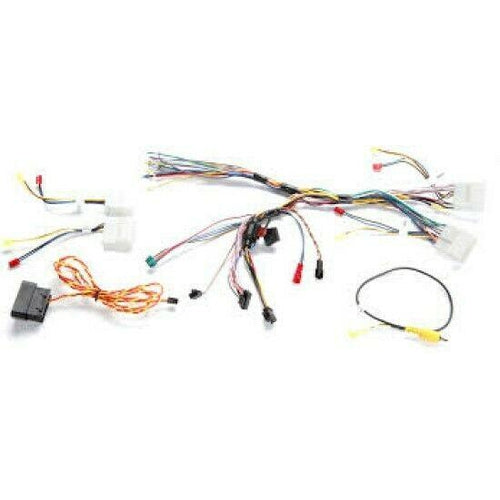

iDatalink's HRN-RR-HK1 wiring adapter allows you to connect a new iDatalink-compatible car stereo in select 2010-up Hyundai and Kia vehicles,

working in conjunction with iDatalink's Maestro ADS-MRR module. Once connected, you'll retain the use of your steering wheel audio controls in these vehicles.

The package includes connectors that plug in between the Maestro module, your factory radio's wiring plugs, and your new car stereo.

You'll have to solder or splice together this harness's power/ground, illumination, speaker,

and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Keeping your factory cameras and more

This harness allows you to retain the backup camera (and even the front camera) in your Hyundai or Kia, as long as your receiver has

the necessary inputs. In addition, you'll also be able to display engine performance data and other vehicle info on your receiver's screen.

Product highlights:

allows installation of new iDatalink-compatible receiver in select Hyundai and Kia vehicles (also requires the Maestro ADS-MRR module)

retains the use of your steering wheel audio controls in select vehicles

retains factory backup camera and front camera (receiver must have a second camera input)

displays engine performance data on touchscreen

warranty: 1 year


Vehicle-specific wiring harness

Backup camera harness

CAM3 harness

CAM4 harness

OBD II harness
