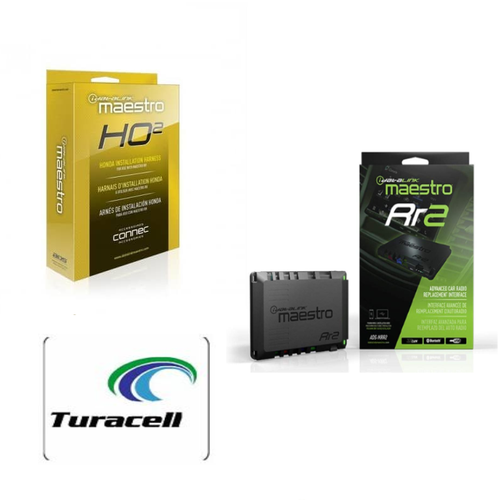

iDATALINK MAESTRO ADS-MRR2 + HRN-RR-HO2 ADAPTER / SELECT HONDA 2008-up

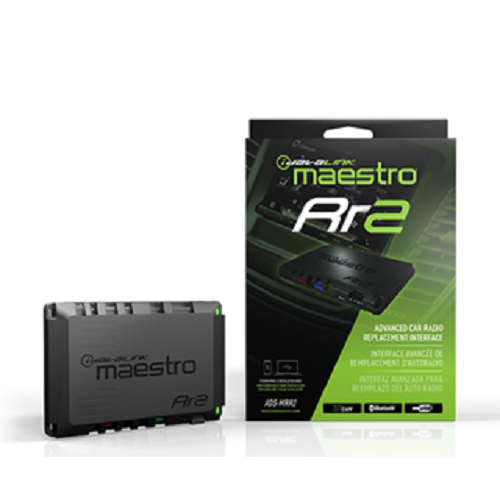

Idatalink,ADS-MRR-2 Advanced Car Radio Replacement Interface

Advanced Radio Replacement Interface, Enabling Bluetooth Programming For Ios & Androids

Maestro RR2 adds built-in Bluetooth. Like the original RR, installers must flash the device, or download software to match

the car model. With the new Bluetooth version, the installer may flash the device wirelessly from a smartphone.

He no longer needs to be tethered to a computer.

Additionally, the new RR2 allows Kenwood radios to act as the readout screen for two ESCORT radar detectors:

the iX Ci custom-installed detector and the portable MAX Ci. Drivers can receive alerts and adjust radar settings through the car radio.

(The original RR works with K40 detectors).

The RR2 has three programmable outputs so it is able to link side cameras into the turn signals of new cars to add blind spot detection.

It can also trigger LED lighting so, a lightbar might be controlled by a steering wheel button.

RR2 has the ability to work with 2018 and newer vehicles with a gateway at the OBD2, including Chrysler, Dodge and Jeep vehicles.

The device is backwards compatible with earlier aftermarket radios that worked with the original RR and it will work with all existing T-harnesses.

HRN-RR-HO2 ADAPTER / SELECT HONDA 2008-up

iDatalink working with Honda

iDatalink's HRN-RR-HO2 wiring adapter works in conjunction with their Maestro ADS-MRR module allowing you to connect a new iDatalink-ready car stereo in select 2008-up Honda vehicles. With your iDatalink-ready car stereo, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select Honda vehicles, including the use of your steering wheel audio controls, factory amplifier, aux input, Bluetooth®, and backup camera, plus your lane watch camera and secondary vehicle display (if equipped). You'll also appreciate the additional features added by the adapter, including the ability to view performance gauges and other vehicle information on your radio's screen.

Maestro module required

The package includes connectors that plug in between the Maestro module and your factory radio's wiring plugs. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Installation Note: The HRN-RR-HO2 adapter must be used with the iDatalink Maestro ADS-MRR module to connect an iDatalink-ready car stereo to your Honda vehicle.

Product highlights:

allows installation of a new iDatalink-ready car stereo in select Honda vehicles (also requires the Maestro ADS-MRR module)

retains the use of your steering wheel audio controls, factory Bluetooth, and aux input, plus factory amp and secondary vehicle display (if equipped)

also retains your Honda backup camera and lane watch camera (if equipped)

displays engine data and vehicle info onscreen

Whats in the box:

Vehicle harness

Sub-out harness

Camera harness

A-harness

B-harness

OBD II harness
