iDatalink Maestro RR ADS-MRR Radio Replacement & Steering Wheel Interface

iDatalink Maestro RR ADS-MRR Radio Replacement & Steering Wheel Interface

allows installation of a new car stereo in select 2006-up Ford vehicles

works with required vehicle-specific harness (sold separately) to retain factory steering wheel audio controls,

retain the factory amp if present, and integrate all car stereo connections

retains factory convenience features (OnStar, SYNC, Uconnect, and more) with select Kenwood,

Alpine, and Pioneer touchscreen receivers

displays engine performance data on touchscreen with select Kenwood and Alpine navigation receivers

dimensions: 4-1/8"W x 3/4"H x 2-7/8"D

Radio replacement interface module

23" Eighteen-pin harness with bare wires on other end

23" Three-pin harness with bare wires on other end

23" Four-pin harness with bare wires on other end

23" Ten-pin harness with bare tin wires on other end (black connector)

23" Ten-pin harness with bare tin wires on other end (green connector)

23" Four-pin harness with a male 3.5mm connector/bare wire on other end

7" mini-USB (type-B) to USB (type-A) cable

4-pin to 4-pin Serial Port Cable

Cable with 3.5mm miniplug

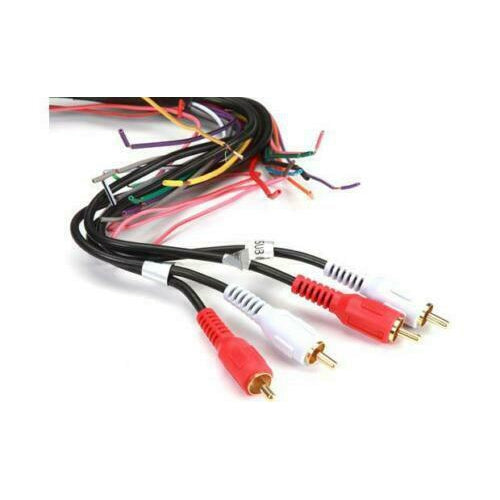

iDatalink Connect HRN-RR-FO1

This HRN-RR-FO1 wiring adapter from iDatalink allows you to connect a new car stereo in select 2006-up Ford, Lincoln,

Mercury, and Mazda vehicles, working in conjunction with iDatalink's Maestro ADS-MRR module. Once connected,

you'll retain the use of your steering wheel audio controls and your factory amp, if present.

The package includes three connectors that plug in between the Maestro module, your Ford radio's wiring plugs,

and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker,

and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

Product highlights:

allows installation of a new receiver in select Ford-built vehicles (also requires the Maestro ADS-MRR module)

displays engine performance data on touchscreen with select Alpine, JVC, Kenwood and Pioneer receivers

retains the use of your steering wheel audio controls and factory amp
