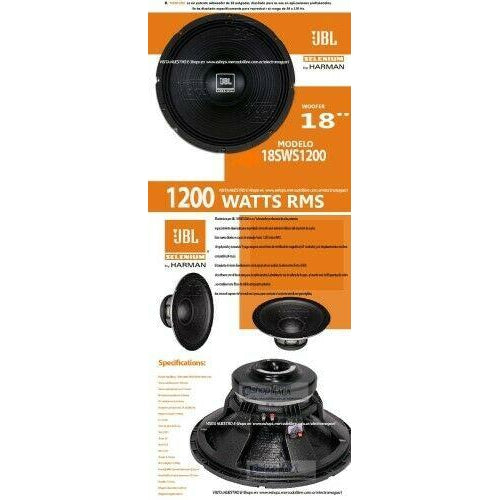

JBL 18SWS1200 Selenium 18" 1200W 8OHM WOOFER SPEAKER BRAND NEW!

JBL 18SWS1200 Selenium 18" 1200W 8OHM WOOFER SPEAKER BRAND NEW!

Regular price $364.99
Regular price Sale price $364.99
Sale Sold out
JBL 18SWS1200 Selenium 18" 1200W 8OHM WOOFER



The Selenium by JBL 18SWS1200 is a high power 18" professional subwoofer specially designed to reproduce sound at the very low end of the audio spectrum. This new design is capable of handling up to 1200 Watts RMS. A bumped and undercut T-yoke assures a minimum of magnetic rectification (off-centering) and a compatible maximum displacement (X-mas). The magnet assembly was designed with the assistance of a Finite Element Analysis (FEA) software in order to ensure optimization. The 4-layer copper voice coil, using over 80 grams of copper, is wound on a fibreglass-composite former, twice the thickness of typical formers, to drive the moving assembly with great rigidity. The non-pressed long fibre pulp cone has the necessary mass and stiffness to withstand the tremendous accelerating forces required, and is precisely centered by two counter-balancing, distortion cancelling, polyester cotton fibre spiders. A triple cooling system consisting of a large diameter center hole surrounded by six smaller holes (directly cooling the gap) and six frame windows (cooling the air trapped between the two spiders) are responsible for an efficient heat transfer mechanism. A highly reinforced aluminum injected frame is effective in absorbing mechanical shocks and acts as a heat sink without interfering with the magnetic field.

Specifications:

· Power handling: 1200 watts RMS/2400 watts max

· Voice coil diameter: 100mm

· Voice coil inductance: 2.22 mH

· Nominal impedance: 8 ohms

· DC resistance: 5.6 ohms

· Frequency response: 37-20,000 Hz

· Magnet weight: 3440g

· Fs: 35 Hz

· SPL: 96 dB 2.83V/1m

· Vas: 253 I

· Qms: 14

· Qes: 0.51

· Qts: 0.37

· Xmax: 6.75mm

· Net weight: 11,400g

· Front Baffle Cutout diameter: 422mm

· Back Baffle Cutout diameter: 412mm

· Depth: 215mm

· Magnet diameter: 220mm

· Magnet height: 24mm

Package Contents:

· 18SWS1200 Selenium Speaker

· Owner's Manual
