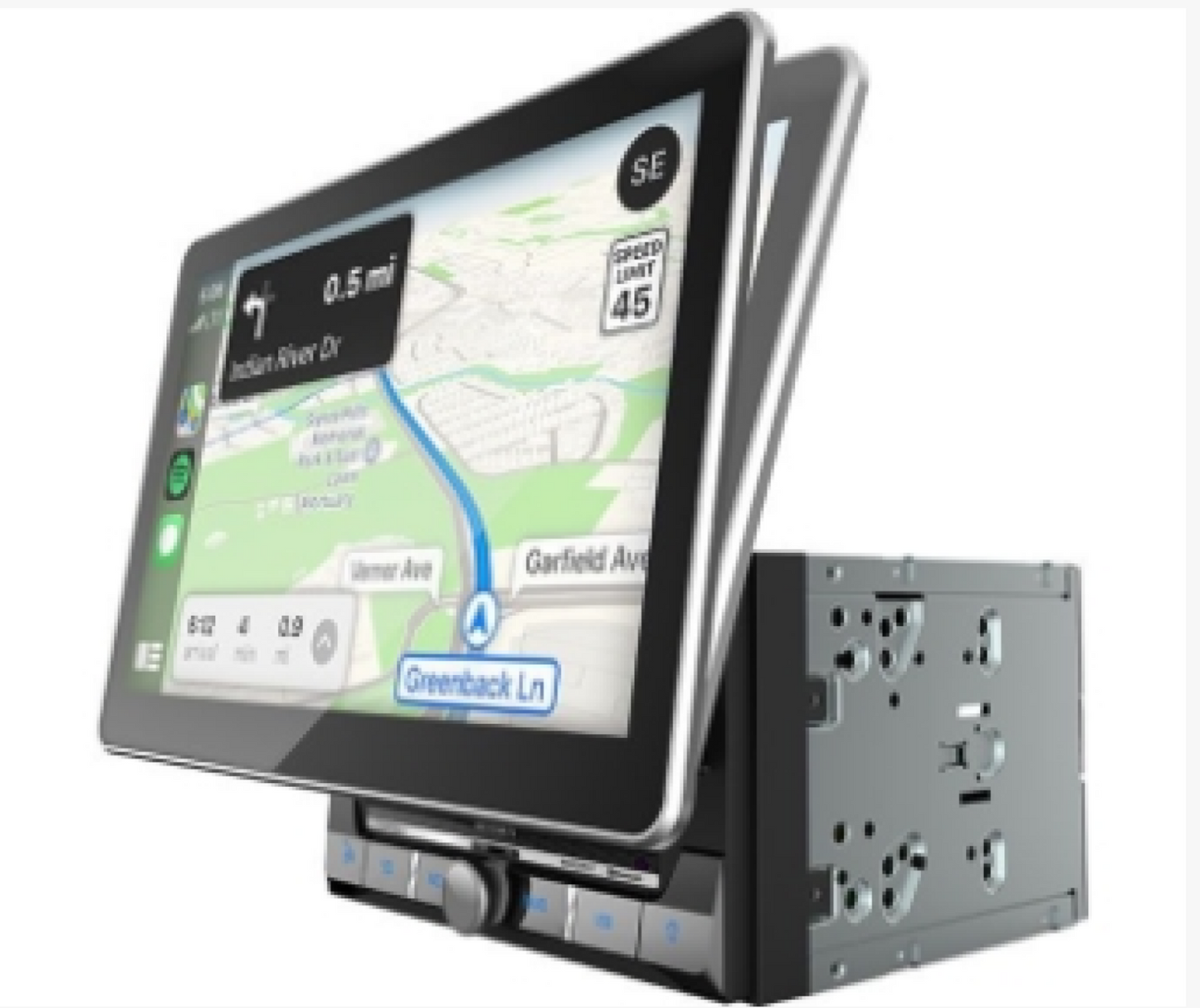

Jensen CAR1000 10.1” Mechless CarPlay Android Auto Media Receiver w/ Bluetooth

Jensen, 10.1" Extra-Large Touchscreen Display

Jensen, 10.1'' Mechless Capacitive TFT Touch Screen, Double Din, Bluetooth

Go big (really big)

Want a huge display? Some folks go as far as custom-mounting an iPad in their dash. Jensen makes it easier with the CAR1000 digital multimedia

receiver, which rocks an incredible 10.1" capacitive touchscreen, along with a front-panel button that gives you instant access to Siri® or Google Assistant.

The receiver's chassis is a fit for the popular 4" tall double-DIN dash opening, while the big screen plugs into the front of the chassis, giving you Apple

CarPlay® and Android Auto™ with easy voice control access in most modern vehicles.

Apple CarPlay

CarPlay integrates your iPhone into the driving experience in a seamless interface, allowing you to access iPhone content with the sound of your voice.

That means easy access to your music library, audiobooks, phone, messages, navigation, and many third-party streaming music apps, too.

Android Auto

If you're an Android user, this receiver is ready for your phone, too. Android Auto integrates your Android device into the driving experience without

distracting you from the job at hand — driving . You'll have easy voice access to Google Maps, weather, music, and apps, not to mention your

text messages. And you can make calls, too, of course.

And Bluetooth

Bluetooth enables wireless streaming for stored music, music services, podcasts, and audiobooks. Of course, you'll be able to take and make

calls too while keeping your hands on the wheel — an awesome safety feature when you're making your daily commute.

System-building tools

You can use the 10.1" touchscreen display for system control, media info, and as a monitor for a connected backup camera (not included, see Accessories),

great for backing into those tight parking spots. The Jensen CAR1000's two USB ports let you connect a smartphone as well as a flash drive loaded with your music.

Jensen also builds in three sets of preamp outputs for amplifiers powering your speakers and subs. An 8-band equalizer and time alignment give you

plenty of options for tweaking the sound in your vehicle.

General Features:

Digital media receiver with 10.1" capacitive touchscreen display

package includes double-DIN radio chassis, separate 10.1" touchscreen monitor, wireless remote, and microphone

built-in AM/FM tuner

Bluetooth for hands-free calling and audio streaming

remote control

Smartphone Features:

Apple CarPlay compatible

Android Auto compatible

front panel button to activate Siri or Google Assistant

Audio/video Features:

8-band EQ and time alignment

subwoofer controls

Expandability:

inputs: front and rear USB inputs, rear (RCA) A/V input, front microSD card slot, rear-view camera input

outputs: 6-channel preamp outputs (4-volt front, rear, sub)

Other Information:

wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)

built-in internal amp (16 watts RMS CTA-2006/50 peak x 4 channels)

compatible with most factory steering wheel audio controls (adapter required)

CTA-2006 compliant

warranty: 1 year

What's in the box:

Digital media receiver chassis (15A fuse)

10" Touchscreen monitor

Wiring harness

Pre-out harness

AV-In harness

Camera input harness

Remote control (CR2025 3V battery installed)

Microphone w/ bracket (attached 9.75' cable terminated by a mono-3.5mm connector

Self-adhesive bracket

Trim-ring

2 Brackets

2 Endcaps

8 Pan-head ISO-screws

8 Counter-sunk ISO-screws

10 Machine screws

Installation/Owner's Manual

Inputs:

Front USB input (1A)

Rear USB input (1.5A fast charging)

microSD card input

Rear RCA A/V input

Back-up camera input (RCA)

Steering Wheel Control input (SWC adapter required)

​ Outputs:

3 Pairs of 4V preamp outputs (F/R/S)

Power: 200 Watts (50 W x 4) MOSFET

Media playback: USB/microSD card

File formats: XviD/MP3/MP4/FLAC

8 Band graphic EQ

8 EQ presets (POP, JAZZ, ROCK, CLASSICAL, BEAT, FLAT, USER and SOFT)

Tuner: AM/FM with 30 stations presets (18FM/12AM)

Display: 10.1” LED Backlit LCD touchscreen (1024p x 600p)

RGB custom button illumination

Wireless remote control

Ibeam Flush Mount Backup Camera With Metal Housing

Flush Mount Backup Camera With Metal Housing

Specifications:
• High quality metal housing
• 110 degree viewing angle
• ¼" CMOS camera
• 0.6 lux night vision
• Water resistant - Rated IP67

Description:

Our iBeam Flush Mount Backup Camera is a fast and easy solution to increasing driver safety. The universal flush mount is integrated

into the body of the vehicle for an unobtrusive camera with only the lens visible. A wide angle lens provides a 110 degree viewing angle

and sharp picture from the ¼" CMOS camera, which has 0.6 lux night vision. The camera is inside high quality

metal housing with water resistant construction.
