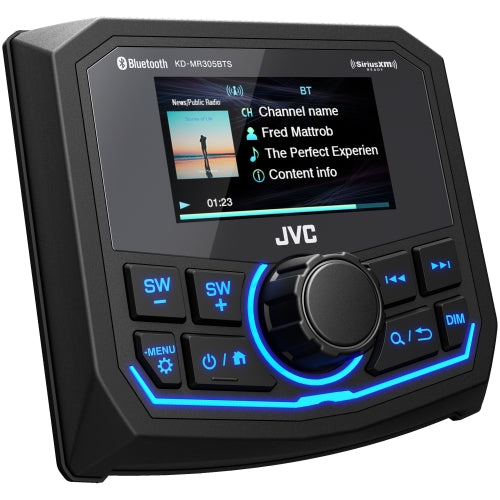

JVC KD-MR305BTS Digital Media Receiver Marine Bluetooth 2.7" Color Display Dust and Waterproof
JVC KD-MR305BTS Digital Media Receiver Marine Bluetooth 2.7" Color Display Dust and Waterproof
Couldn't load pickup availability
Digital Media ReceiverKD-MR305BTS
Digital Media Receiver featuring Bluetooth® / USB / SiriusXM / 2.7" Color Display / Dust-proof & Waterproof (IP66) / UV Protection (ASTM D4329) / Rustproof (ASTM B117) / Global Tuner with Weather Band / 13-Band EQ / Variable Color Illumination
IP66 Waterproof & Dust-proof
Withstands jets of water from any direction thanks to IPX6 waterproof compliance. As a result, the receiver can be safely used not onl y in cars, but also in other types of motor vehicles including marine and motorsports use.
Dustproof structure compliant with IP6X to prevent sand and dust.
ASTM D4329 UV Protection
Designed for use in harsh outdoor environments prone to strong sunlight.
ASTM B117 Rustproof
Saltspray-proof: ASTM B117 salt spray (or salt fog) corrosion test simulates harsh conditions in a saltwater environment to ensure the receiver does not corrode or fail in these harsh conditions.
Vibration-proof
The receiver passes a 3-axis multi-frequency vibration test to ensure its ability to sustain vibrations.
Conformal Coating
A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt-spray, thus preventing corrosion
Weather Band Tuner
Weather band reception for safety information.

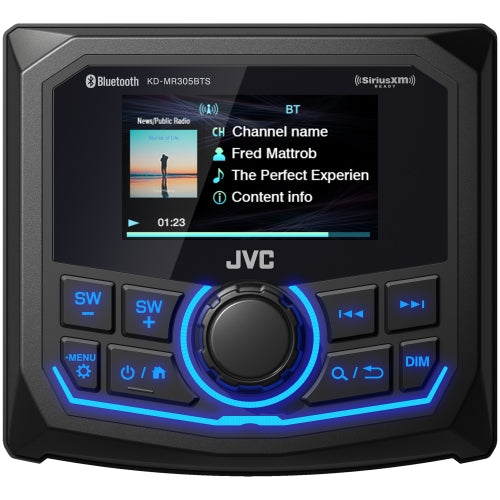

Ready for SiriusXM Radio
(optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
Variable-Color Illumination
You can choose illumination colors from one of 24 presets or customize your own color by adjusting the intensity of RGB (Red, Green, and Blue).
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.

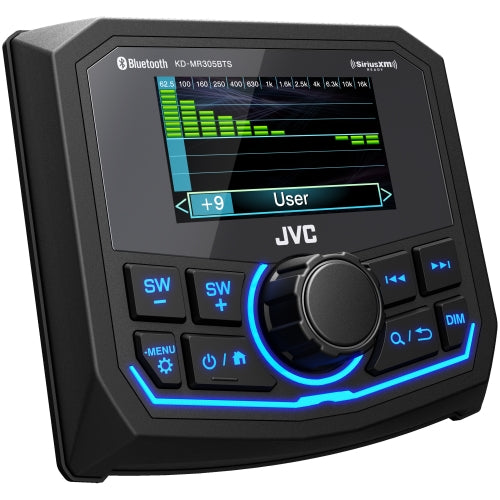

13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Rear View Camera Input Support
KD-MR305BTS is equipped with a rear view camera input. With an optional KV-CM30 camera (or other) connected, you have increased safety while driving UTVs or marine vessels.
System Expansion Ready

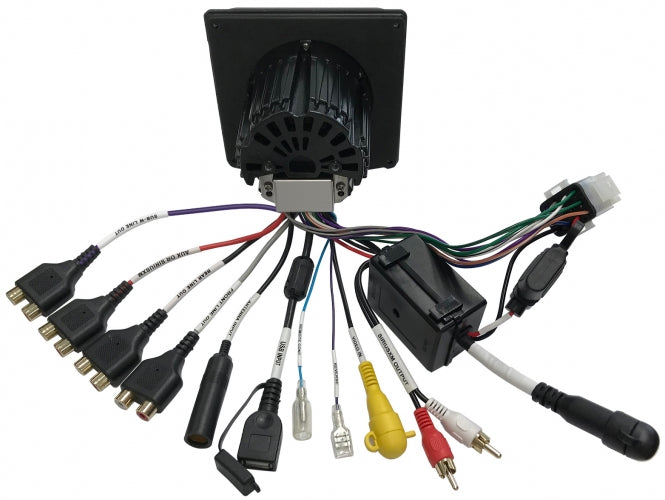

KD-MR305BTS has RCA outputs to expand the system to connect to additional Waterproof amplifiers, speakers & subwoofers.
-
KD-MR305BTS
Monitor
- LCD Type
- 2.7" Color TFT
- Screen Brightness
- Yes (Day / Night mode)
Display
- Key Color
- Variable Color
- Spanish Text Display Compatible
- Yes
- French Text Display Compatible
- Yes
Media Playback
- MP3 Compatible with Tag
- Yes
- WMA Compatible with Tag
- Yes
- AAC Compatible with Tag
- Yes
- FLAC Compatible with Tag
- Yes (Up to 24bit, 48kHz)
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Ver 5.0)
- Audio Streaming & Control (A2DP, AVRCP)
- Yes (AVRCP 1.5)
- Supported Audio Formats
- AAC / SBC
Android Control
- Android Music Playback
- Yes (via Bluetooth)
iPod/iPhone Control
- iPhone Music Playback
- Yes (via USB)
USB
- Position
- Rear
- USB Power Supply
- Yes (1.5A)
Inputs and Outputs
- AUX Input
- Rear (RCA L, R)
- Line Output Terminals (Pair)
- 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level
- 2.0V
- Subwoofer Output with Level/Frequency Control
- Yes (Level 0 - 20)
- Subwoofer Output Level
- 4.0V
Tuner
- SiriusXM Ready
- Yes
- Radio Data Broadcast System (RBDS)
- Yes
- Preset Stations
- 18FM + 12AM + 6WB + 18SXM
- Weather Band Selection
- Yes
- FM
- Frequency Range (Frequency Step)
- 87.9 - 107.9MHz
- AM
- Frequency Range (Frequency Step)
- 530 - 1700kHz
- WB
- Frequency Range
- 162.40MHz - 162.55MHz (USA/Canada)
Audio
- Maximum Power Output
- 50W x 4
- EQ
- 13 Band EQ
- Preset EQ
- Yes (8-Preset)
- Loudness Control
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
General
- Conformal Coating
- Yes
- Waterproof
- Yes (IPX6 - Panel, IPX4 - Chassis)
- Dustproof
- Yes (IP6X)
- Rustproof
- Yes (ASTM B117)
- UV Protection
- Yes (ASTM D4329)
- Vibration-proof
- Yes
- Rear View Camera Input
- Yes
- Back Up Memory
- Yes
- Wired Remote Control
- Ready (RM-RK62M required)
- Dimensions (W x H x D)
- Installation Size
- Front Panel:4-9/16 x 4-3/16 x 1-9/16(115 x 106 x 39mm) , Body:Dia. 3-1/16 x 2-1
- Weight

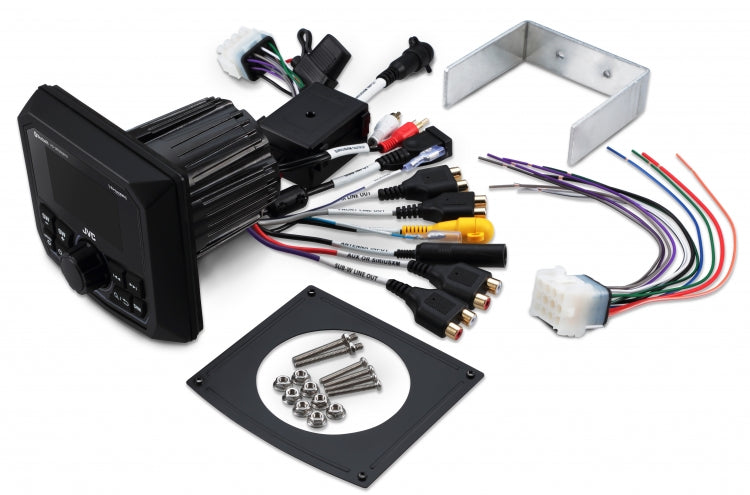

- 2.0 lbs. (0.9kg) includes Trim Bezel, Mounting Plate, Screws
- Unit weight in individual package
- 2.76 lbs. (1.25kg)
