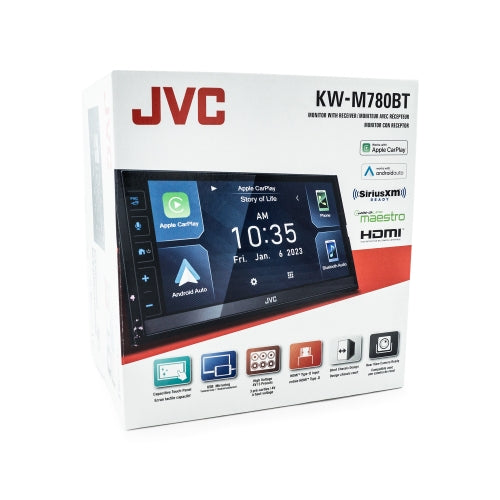

JVC KW-M780BT In Dash Car Media Receiver 6.8" Screen Apple CarPlay Android Auto HDMI
JVC KW-M780BT In Dash Car Media Receiver 6.8" Screen Apple CarPlay Android Auto HDMI
Couldn't load pickup availability
Digital Media Receiver featuring 6.8-inch Capacitive Touch Control Monitor (6.8" WVGA) / Apple CarPlay / Android Auto / USB Mirroring for Android Phones/ iDatalink Maestro Ready / HDMI Input / Bluetooth® / 13-Band EQ / Short Chassis
SMARTPHONE
INTEGRATION
JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.
Apple CarPlay® – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay
Android Auto™ – Connect via USB
Android Auto was designed with safety in mind. With larger touch targets, a simplified interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
*To use Android Auto on your car display, youʼll need an Android phone running Android 6 or higher, an active data plan, and the Android Auto app.
*Some Features, applications, and services are not available in all areas. For details, see:
www.android.com/auto
Mirroring for Android Phone – Connect via USB
By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
HDMI™ Mirroring for Smartphones
Display your smartphone screen on the receiverʼs display via an HDMI cable and third party adapter.
*KS-U70, optional HDMI cable and smartphone specific third party adapter are required (sold separately).
Highlights
3-Camera Input
Enable users to add a reverse (rear facing) camera and an additional 2 front or blind-spot cameras, further enhancing driver safety and convenience.
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
SOUND OPTIMIZATION
From advanced technologies that enable playback of premium High-Resolution Audio sources, to the vast array of sound adjustment functions to fine-tune and customize the acoustics exactly the way you want — count on JVC to deliver the music to your ears.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Sound Response
Cancels time distortion to create clearer sound during the playback of compressed audio files.
Space Enhancement
Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the receiver automatically adjusts the sound effectively.
Sound Lift
Virtually manipulate the height of the speakers by adjusting the sound frequencies.
Volume Link EQ
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Bluetooth® Wireless Technology
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.
Android™ Bluetooth Automatic Pairing
Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.8 Wideband Speech
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.6 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, so you and your friends can take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.
Internet Radio/Digital Radio
SiriusXM Ready
(optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
General
iDatalink Maestro – Advanced Vehicle Integration
iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).
*Available features may vary depending on the vehicle. The iDatalink Maestro RR/RR2 is sold separately by Automotive Data Solutions. To find an authorized dealer please visit http://maestro.idatalink.com/
High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
*Compatibility depends on the smartphone.
4.0V High-Voltage 3 Pre-Outs
Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.
Short Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Tech Specs
KW-M780BT
Monitor
- Screen Size
- 6.8"W VGA Screen
- Touch Panel
- Capacitive
- Gesture Touch Control
- Yes
- Customizable GUI
- Yes
- Key Illumination Color
- Variable
- Dimmer
- Yes
- Multilingual Display
- Yes[4]
- Wallpaper Capture
- Yes
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- MKV Compatible
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Wired-Mic included)
- Hands Free Call
- Yes (HFP1.8 Wideband Speech)
- 2 Phones Full-Time Connection
- Yes
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Supported Audio Formats
- AAC / SBC
- 5 BT-Audio Connection
- Yes
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Alphabetical Search for Phone Book
- Yes
- Auto Pairing for iPhone/Android
- Yes (Android only)
Android Control
- Android Auto[2]
- Yes (via USB)
- Mirroring for Android
- Yes (via USB) *Need mirroring App
- Android Music Playback
- Yes (via Bluetooth(R))
iPod/iPhone Control
- CarPlay[3]
- Yes (via USB)
- iPhone Music Playback
- Yes (via USB(CarPlay) or Bluetooth(AVRCP))
USB
- USB Port
- x 1 (High speed)
- Position
- Rear
- USB Power Supply
- Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory)
- Yes
Radio Tuner
- SiriusXM Ready
- Yes
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 20(FM:15ch, AM:5ch)
- FM
- Frequency Range
- 87.9 - 107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 50Wx4
- Full Bandwidth Power (Front & Rear)
- 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (8Preset + 4user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- 3-Way X'over
- Yes
- Digital Track Expander
- Yes
- Space Enhancement
- Yes
- Sound Response
- Yes
- Sound Lift
- Yes
- Volume Link EQ
- Yes
- Time Alignment
- Yes
Inputs and Outputs
- AV Input
- mini jack (AV-IN or Camera-IN switchable) x 1
- Video Out
- RCA x 1
- HDMI Terminal
- Yes
- Rear view camera Input
- Yes
- Front view camera Input
- Yes
- Line Output Terminals
- 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance
- 4.0V / 10k ohms
General
- iDatalink Maestro Ready
- Yes
- Back Up Memory
- Yes
- Face Type
- Viewing Angle Adjustment
- Yes (0 - 20 degree, default : 0 degree)
- Short Chassis
- Yes (2-15/16inch, 75mm)
- Wireless Remote Control
- Ready (RM-RK258 required)
- Steering Remote Control Ready
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7-1/16" x 3-15/16" x 2-15/16" (180 x 100 x 75 mm)
- Weight
- 2.7 lbs. (1.2kg) Including Sleeve and Trim plate
- Unit weight in individual package
- 4.2 lbs. (1.9kg)
