JVC

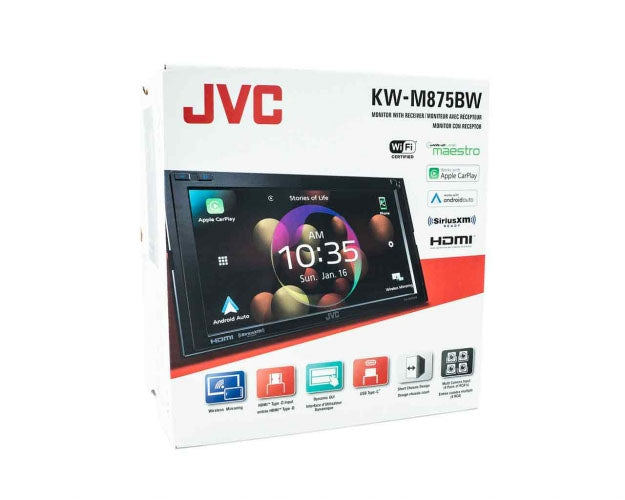

JVC KW-M875BW In Dash Multimedia Car Receiver 6.8" Screen Wireless Carplay and Android Auto
JVC KW-M875BW In Dash Multimedia Car Receiver 6.8" Screen Wireless Carplay and Android Auto
Couldn't load pickup availability
Multimedia Receiver featuring 6.8" Clear Resistive Touch Monitor / Wireless Apple CarPlay / Wireless Android Auto / HDMI Input / 4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ / USB Type-C
WiFi Certified
Android Auto
Appple Carplay
Wifi Mirroring
HDMI
Bluetooth
Maestro Ready
SiriusXM Ready
SMARTPHONE
INTEGRATION
JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.
Android Auto™ – Connect Wirelessly or via USB
Android Auto is a simpler, safer way to use your phone in the car. Just plug in your phone – or in select models, connect wirelessly – and youʼll access your favorite music, media, and messaging apps in the car. Check out all the Apps for Android Auto at g.co/androidauto
*To use Android Auto on your car display, youʼll need an Android phone running Android 6 or higher, an active data plan, and the Android Auto app.
*To wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan. You can check which smartphones are compatible at g.co/androidauto/requirements.
*Some Features, applications, and services are not available in all areas. For details, see:
www.android.com/auto
Wireless Mirroring for Android Phones
Wireless Mirroring for Android Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
HDMI™ Mirroring for Smartphones
Display your smartphone screen on the KW-M875BW’s display via an HDMI cable and third party adapter.
*KS-U70, optional HDMI cable and smartphone specific third party adapter are required (sold separately).
Dynamic GUI
Various information including time, photos, album art images, or iDatalink Maestro and more, can be displayed on the home screen in a big, easy-to-view way. Swiping the monitor with two fingers lets you split the screen or change the information window.
4-Camera Input
Enable users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.
Live Wallpaper
Synchronize background visual and color with music.
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
High-Resolution Audio Playback
You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.
High-Quality Bluetooth® Streaming with LDAC™
LDAC™ sends approximately three times more data (at the maximum 990 kbps transfer rate) than conventional Bluetooth® audio for superior wireless listening. Unlike other Bluetooth compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content *1, and allows approximately three times more data *2 than those other technologies to be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.
*1: excluding DSD format contents
*2: in comparison with SBC (Subband Coding) when the bitrate of 990kbps (96/48kHz) or 909kbps (88.2/44.1kHz) is selected
*LDAC and LDAC logo are trademarks of Sony Corporation.
* “Hi-Res Audio” Logo and “Hi-Res Audio Wireless” Logo are used under license from Japan Audio Society.
K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Sound Response
Cancels time distortion to create clearer sound during the playback of compressed audio files.
Space Enhancement
Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the receiver automatically adjusts the sound effectively.
Sound Lift
Virtually manipulate the height of the speakers by adjusting the sound frequencies.
Volume Link EQ
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Bluetooth® Wireless Technology
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.
iPhone®/Android™ Bluetooth Automatic Pairing
Just connect your iPhone or Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.7 Wideband Speech
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.6 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, so you and your friends can take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.
Internet Radio/Digital Radio
SiriusXM Ready
(optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
General
iDatalink Maestro – Advanced Vehicle Integration
iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).
*Available features may vary depending on the vehicle. The iDatalink Maestro RR/RR2 is sold separately by Automotive Data Solutions. To find an authorized dealer please visit http://maestro.idatalink.com/
JVC Portal App Compatible
Display the image data saved on your smartphone on the KW-M875BW with JVC Portal App now available for both iOS and Android. You can set your favorite image on the wallpaper of the receiver and enjoy the slide show.
*JVC Portal App
For more information, visit here.
Remote Control App
Control the music directly from the smartphone using simple finger gestures with "JVC Remote S" app* now available for both iOS and Android.
* ”JVC Remote S” App
Detachable USB Type-C® with High Current 3.0A Charging
Rapidly charge your smartphone using the USB Type-C port, with up to a maximum of 3.0A.
Single rear USB Type-C port with detachable extension cable and USB Type-C to USB Type-A adapter included.
*Compatibility depends on the smartphone.
5.0V High-Voltage 3 Pre-Outs
Equipped with three RCA terminals for pre-outs with 5.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.
Short Body
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
SPECS
KW-M875BW
Monitor
- Screen Size
- 6.8" Wide VGA
- Touch Panel
- Clear Resistive
- Gesture Touch Control
- Yes
- Customizable GUI
- Yes
- Key Illumination Color
- Blue
- Dimmer
- Yes
- Multilingual Display
- Yes[4]
- Wallpaper Capture
- Yes
- Live Wallpaper
- Yes
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- AVI/MKV Compatible
- USB
- JPEG File Playback
- USB
- PNG File Playback
- USB
- BMP File Playback
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Version 5.0, Wired-Mic included)
- Hands Free Call
- Yes (HFP1.7 Wideband Speech)
- 2 Phones Full-Time Connection
- Yes
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Supported Audio Formats
- LDAC / AAC / SBC
- 5 BT-Audio Connection
- Yes
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Alphabetical Search for Phone Book
- Yes
- Auto Pairing for iPhone/Android
- Yes
Wi-Fi Control
- Built-in Wi-Fi
- Yes
Android Control
- Android Auto[2]
- Yes (via Wi-Fi or USB)
- Mirroring for Android
- Yes (via Wi-Fi or HDMI)
- Android Music Playback
- Yes (via Bluetooth(R))
iPod/iPhone Control
- CarPlay[3]
- Yes (via Wi-Fi or USB)
- iPod/iPhone Music Playback
- Yes (via USB or Bluetooth(R))
USB
- USB Port
- x 1 (Type-C)
- Position
- Rear
- USB Power Supply
- 5V / 3A (USB type-C Current 3A) or 5V / 1.5A (USB BC1.2)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory)
- Yes
Radio Tuner
- SiriusXM Ready
- Yes
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 20(FM:15ch, AM:5ch)
- Auto Memory Entry
- Yes
- FM
- Frequency Range
- 87.9 - 107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 50Wx4
- Full Bandwidth Power (Front & Rear)
- 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (8Preset + 4user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- 3-Way X'over
- Yes
- High-Resolution Audio
- Yes
- K2 Technology
- Yes
- Space Enhancement
- Yes
- Sound Response
- Yes
- Sound Lift
- Yes
- Volume Link EQ
- Yes
- Time Alignment
- Yes
Inputs and Outputs
- AV Input
- Video:RCA, Audio:mini-jack (AV-IN or CAM4 switchable)
- Video Out
- RCA
- HDMI Terminal
- Yes
- Rear view camera Input
- Yes
- Front view camera Input
- Yes
- 3rd Camera Input
- Yes
- Line Output Terminals
- 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance
- 5.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Yes
General
- iDatalink Maestro Ready
- Yes
- USB Extension Cable
- x 1 (Type-C)
- USB Type-C to USB Type-A adaptor
- Yes
- JVC Portal App
- Yes
- Remote Control Application
- Yes
- Back Up Memory
- Yes
- Face Type
- Viewing Angle Adjustment
- Yes (0 - 20 degree, default : 0 degree) 4 steps
- Short Chassis
- Yes
- Wireless Remote Control
- Ready (RM-RK258 required)
- Steering Remote Control Ready
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7" x 3-15/16" x 3-3/8" (178 x 100 x 85 mm)
- Weight
- 2.9 lbs. (1.3kg) Including Sleeve and Trim plate
- Unit weight in individual package
- 1.9kg
