Kenwood

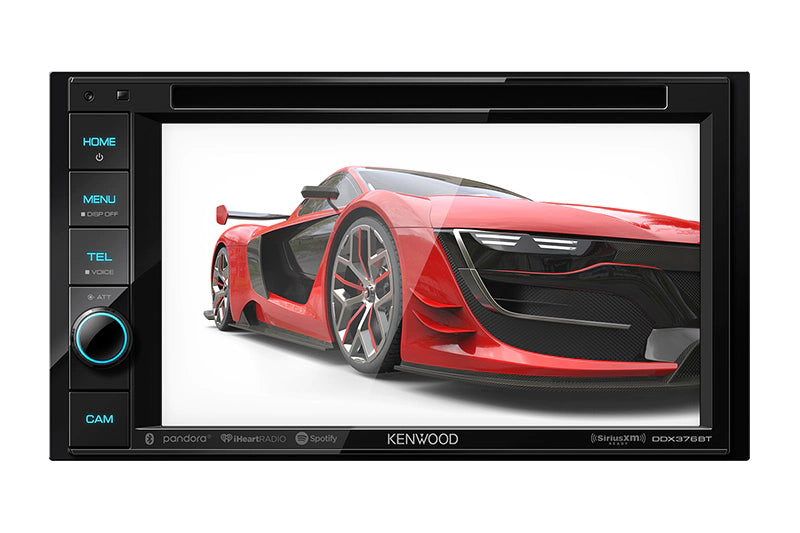

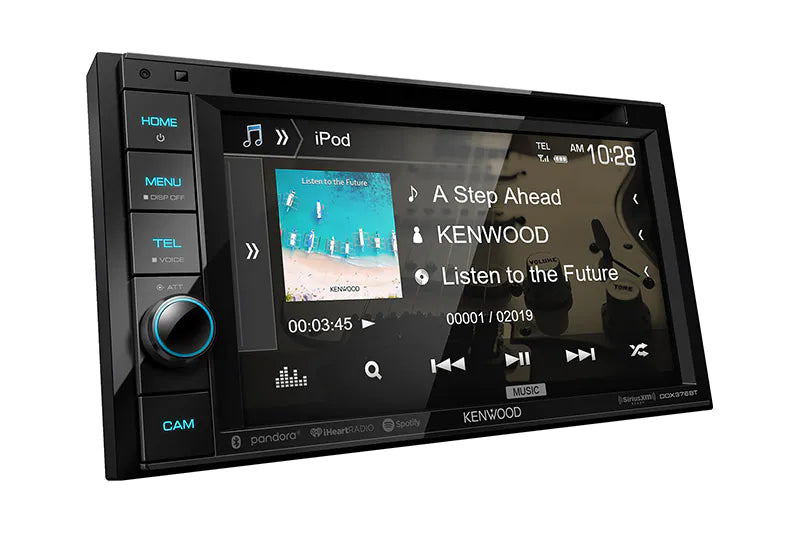

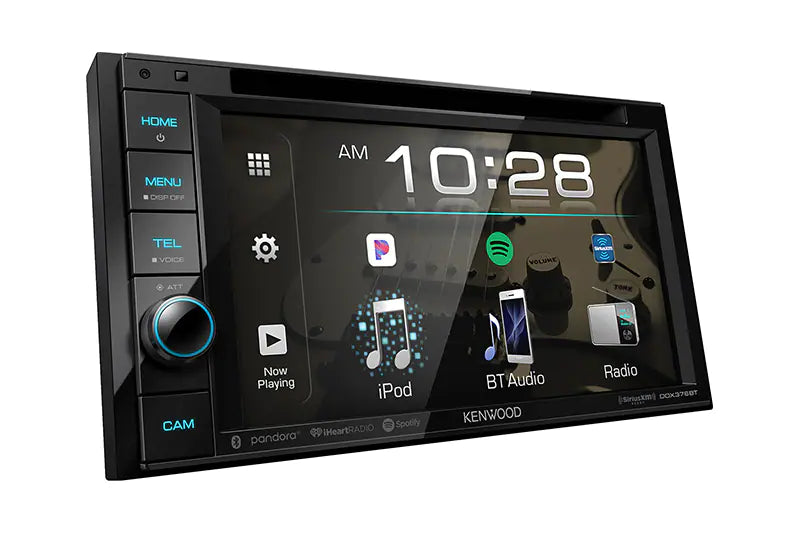

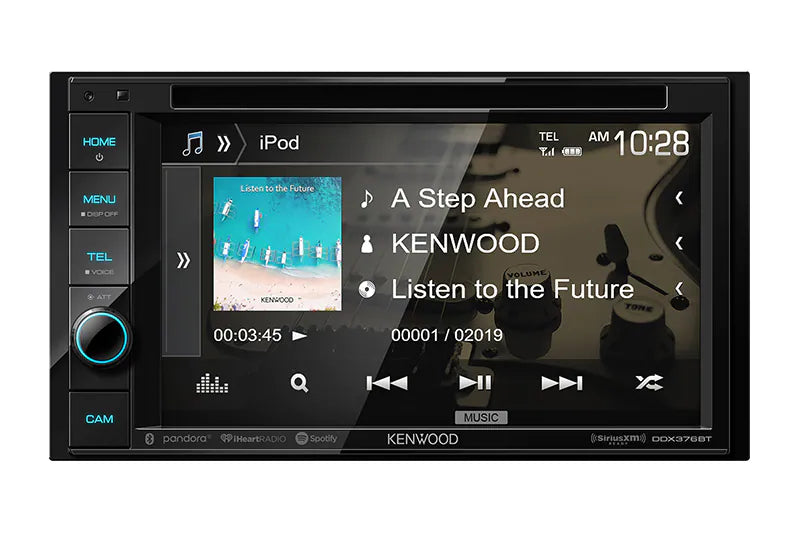

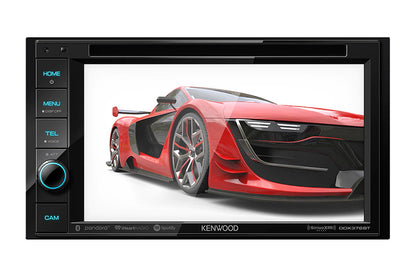

Kenwood DDX376BT Double DIN DVD Receiver 6.1" Touch Screen Bluetooth Maestro Remote App
Kenwood DDX376BT Double DIN DVD Receiver 6.1" Touch Screen Bluetooth Maestro Remote App
- 6.2” WVGA Clear Resistive Touch Panel
- Enhanced Cosmetic Design
- 1 A/V Input (Optional CA-C3AV)
- Illuminated Rotary Volume Knob
- 3 Preouts 4.0V
- Rear View Camera Input with Parking Guidelines
- 1 Video Output
-
Clear Resistive Touch Panel
A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation
-
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
-
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
-
Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
-
Android Music Playback (AOA2)
Supporting AOA2, install the KENWOOD Music Play app and connect your smartphone to the receiver via USB, and control your music directly from the receiver.
-
Android Rapid Charge
Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.
-
Wireless Music Browsing (AVRCP 1.5 / 1.6)
Search and select songs from your music collection through a Bluetooth connection.
-
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
-
Drive EQ
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
-
FLAC Supported
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
-
Parking Guide Lines
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
-
Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,
built-in Bluetooth for hands-free calls and streaming music,
as well as the ability to use your smartphone like a wireless remote controlEquipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Music Application Controls
Connect your iPhone or Android device to access and control the most popular music application sources. Simply install the Spotify, Pandora, and/or iHeartAuto apps on your device, then connect iPhone (USB or Bluetooth) or Android (Bluetooth only) to enjoy music playback.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

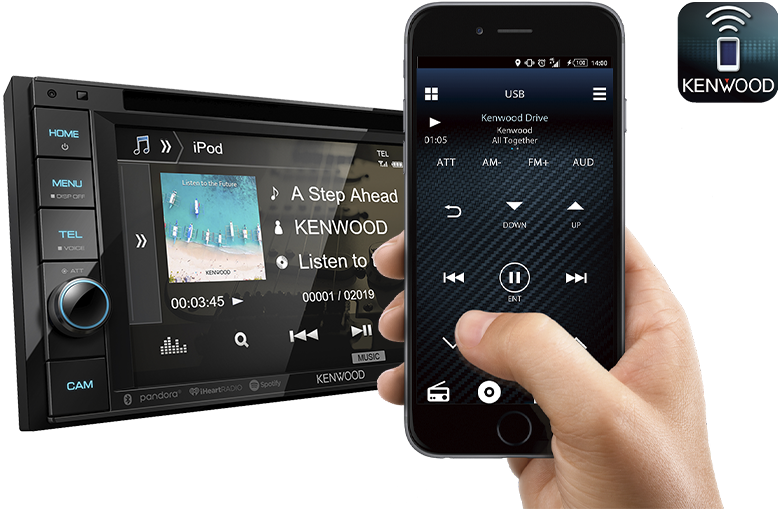

Control the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
FLAC Support
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Enjoy the Many Infotainment Features Available on the iDatalink Maestro RR
When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Vehicle information such as HVAC, performance information, and TPMS can also be displayed.
Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Specs
Monitor Section Picture size 6.2 inches(diagonal) wide W x H 5-7/16 x 3-1/16 Display system Transparent TN LCD panel Drive system TFT active matrix system Number of pixels 800H x 480V x RGB Pixel arrangement RGB striped arrangement Back lighting LED DVD Section D/A Converter 24Bit Audio Decoder Linear PCM Dolby Audio MP3/WMA/AAC(.m4a)/WAV Video Decoder MPEG1/MPEG2/JPEG Wow & Flutter Below Measurable Limit Frequency response 96k Sampling 20 - 22,000 Hz 48k Sampling 20 - 22,000 Hz 44.1k Sampling 20 - 20,000 Hz Total harmonic distortion 1kHz 0.0001 Signal to Noise ratio 90dB Dynamic range 90dB DISC Format DVD-Video/VIDEO-CD/CD-DA Sampling frequency 44.1kHz/48kHz 96kHz Quantifying bit number 16/20/24bit USB I/F Section USB Standard USB2.0 Full Speed / High Speed Compatible Devices Mass storage class File System FAT 16/32 Maximum Power Supply Current DC5V (DC logo) = 1.5A D/A Converter 24bit Audio Decoder MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC Video Decoder MPEG1/MPEG2/JPEG Bluetooth Section Technology Bluetooth V3.0 Frequency 2.402 - 2.480 GHz RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2 Maximum Communication range Line of sight approx.10m (32.8ft) Audio Codec SBC/AAC Profile HFP(Hands Free Profile) 1.6 A2DP(Advanced Audio Distribution Profile) 1.3 AVRCP(Audio/Video Remote Control Profile) 1.5 GAP(Generic Access Profile) PBAP(Phonebook Access Profile) 1.2 SDP(Service Discovery Profile) SPP(Serial Port Profile) 1.2 FM Frequency range 87.9 MHz - 107.9 MHz (Frequency step) (200 kHz) Usable sensitivity 7.2 dBf S/N:30 dB 0.63 μV / 75 Ohms Quieting sensitivity 15.2 dBf S/N:50 dB 1.58 μV / 75 Ohms Frequency response 30 Hz - 15 kHz (±3.0 dB) S/N (dB) 68 dB(MONO) Selectivity Over 80 dB(±400 kHz) Stereo separation 40 dB(1 kHz) AM Frequency range 530 kHz - 1700 kHz (Frequency step) (10 kHz) Usable sensitivity 29 dBμ Video Color system of external video input NTSC/PAL External video input level (mini jack) 1Vp-p / 75Ohms External audio max input level (mini jack) 2V / 25kOhms Video Input level for Rear Camera (RCA jack) 1Vp-p / 75Ohms Video Output level (RCA jacks) 1Vp-p / 75Ohms Audio Maximum Power (Front&Rear) 50Wx4 Full Bandwidth Power (Front&Rear) 22Wx4 (at less than 1%THD) Preout level(V) 4V / 10kOhms Preout Impedance(Ω) =< 600 Ohms Speaker Impedance(Ω) 4-8 Ohms Equalizer BAND 13Band Frequency(Hz) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB] Q factor 1.35/1.5/2.0 2Way X'Over Tweeter Frequency(Hz) 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] Front (HPF) Frequency(Hz) Through/30/40/50/60/70/80/90/100/120/150/180/220/250 Slope -6/-12/-18/-24 [dB/Oct.] Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] Rear (HPF) Frequency(Hz) Through/30/40/50/60/70/80/90/100/120/150/180/220/250 Slope -6/-12/-18/-24 [dB/Oct.] Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] SW (LPF) Frequency(Hz) 30/40/50/60/70/80/90/100/120/150/180/220/250/Through Slope -6/-12/-18/-24 [dB/Oct.] Phase Normal/Reverse Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] 2Way: Front / Rear /Subwoofer Delay 0 - 20.0ft (0.07ft Step) Gain -8 to 0dB Subwoofer Level -50 to +10dB General Operating voltage 12 V DC car battery Installation Dimensions WxHxD 7 x 3-15/16 x 6-3/8 inch Weight Main unit 3.8 lbs
