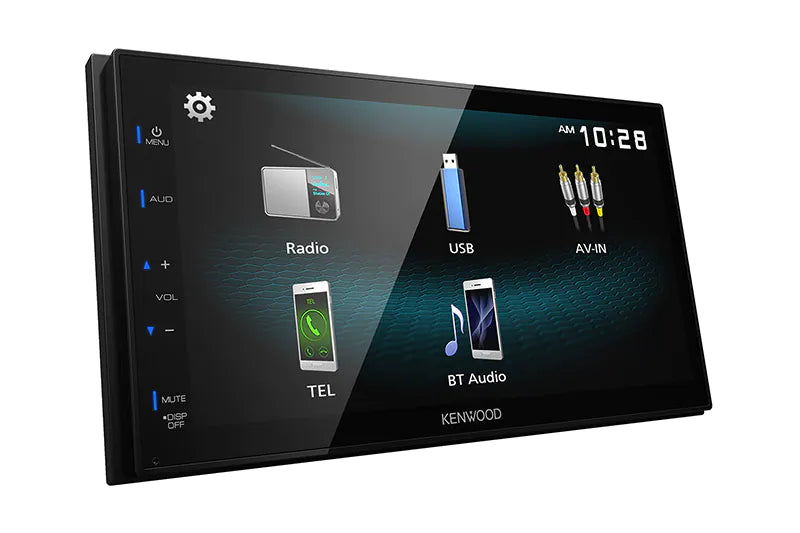

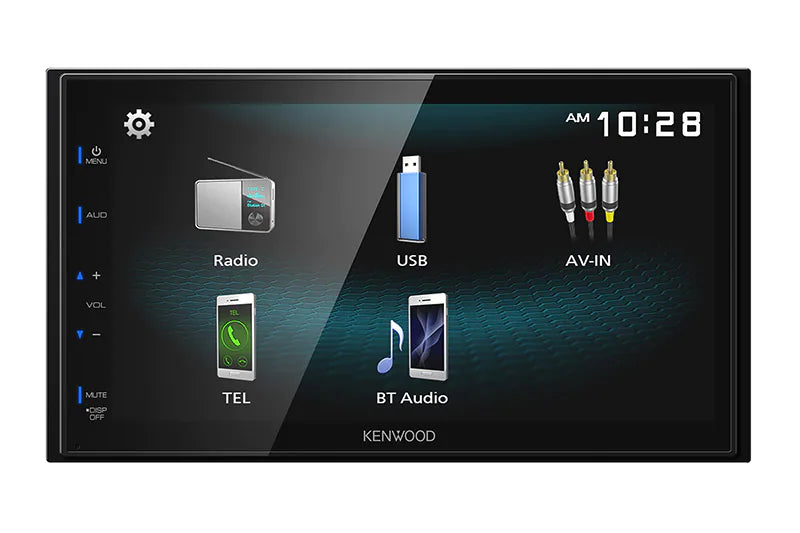

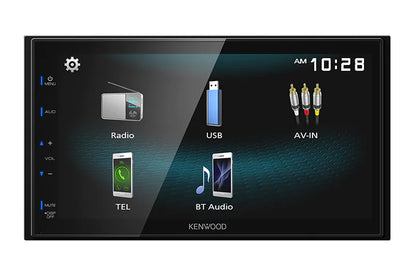

Kenwood DMX125BT Digital Media Receiver with Bluetooth 6.8" Touch Screen Bluetooth USB Mirroring for Android
Kenwood DMX125BT Digital Media Receiver with Bluetooth 6.8" Touch Screen Bluetooth USB Mirroring for Android
Couldn't load pickup availability
DMX125BT Digital Multimedia Receiver with Bluetooth
- USB Mirroring Ready for Android
- 13 Band EQ with Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- 2 Preouts 2V with Subwoofer Out
- (NO CD / NO DVD)
Smartphone Connectivity
Enjoy convenient control and access to Bluetooth hands-free calls and streaming music,
as well as the ability to mirror select Android smartphones on the receiver’s scr
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.
-
Capacitive Touch Panel
Clear glass display provides superior picture and touch panel control.
-
Android USB Mirroring Ready
Allows you to display and control* your Android smartphone (Android OS 7.0+) on the screen of the receiver via USB. *Control functionality varies by device.
-
Wireless Music Browsing (AVRCP 1.5 / 1.6)
Search and select songs from your music collection through a Bluetooth connection.
-
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
-
FLAC Supported
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
-
Parking Guide Lines
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
-
Short Chassis
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Smartphone Connectivity
Android USB Mirroring Ready
Allows you to display and control* your Android smartphone (Android OS 7.0+) on the screen of the receiver via USB. *Control functionality varies by device.
＊Before starting, just install the free app “Mirroring OB for KENWOOD” on your smartphone and connect it to DMX125BT via a USB cable and Bluetooth.
The Best Audio Experience
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
FLAC Support
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
| File format | High-Resolution Audio | Compression | Frequency |
|---|---|---|---|
| WAV | 〇 | - | ～96kHz / ～24bit |
| FLAC | 〇 | Lossless compression | |
| MP3 | - | Lossy compression | ～48kHz / ～16bit |
Safe Driving
Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Additional Features
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text.
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text.
Playable FULL HD Video Files
You can play back from USB devices audio and video files compressed in various formats.
| Video Codec | Playable up to |
|---|---|
| MPEG4 | 1920 × 1080p |
| H.264 | 1920 × 1080p |
| MKV | 1920 × 1080p |
Short Chassis
With multimedia receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Remote Control (Optional)
This receiver unit can be operated using the optional remote control KNA-RCDV331.
| Monitor Section | ||
|---|---|---|
| Picture size | 6.75inches(diagonal) wide | |
| W x H | 151.8mm x 79.7mm, 5-15/16. x 3-1/8 inch | |
| Display system | Transparent TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 1,152,000 800H x 480V x RGB |
|
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| USB I/F Section | ||
| USB Standard | USB2.0 High Speed | |
| File System | FAT 16 / 32 / NTFS | |
| Maximum Power Supply Current | DC 5V = 1.0A | |
| D/A Converter | 24Bit | |
| Audio Decoder | MP3/ WMA/ WAV/ AAC/ FLAC | |
| Video Decoder | MPEG1/ MPEG2/ MPEG4/ H.264/ MKV | |
| Frequency response | 96k Sampling | 20 - 20,000 Hz |
| 48k Sampling | 20 - 20,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Bluetooth Section | ||
| Technology | Bluetooth V4.2 | |
| Frequency | 2.402 – 2.480 GHz | |
| RF Output Power (E.I.R.P.) | +8dBm (MAX), Power Class 1 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC | |
| Profile | HFP(Hands Free Profile) 1.6 | |
| A2DP(Advanced Audio Distribution Profile) | ||
| AVRCP(Audio/Video Remote Control Profile) 1.5 | ||
| PBAP(Phonebook Access Profile) | ||
| SPP(Serial Port Profile) | ||
| DSP Section | ||
| Graphics equalizer | BAND | 13Band |
| frequency(Hz) (BAND1-13) | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k | |
| Gain | -9 to +9 (-9dB to +9dB) | |
| X'Over | HIGH PASS FILTER frequency | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz |
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | |
| LOW PASS FILTER frequency | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through | |
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |
| Position | Front / Rear /Subwoofer Delay | 0 to 20.01ft (0.03 or 0.04ft Step) |
| Gain | -8 to 0dB | |
| FM | ||
| Frequency range (Frequency step) |
87.9 - 107.9 MHz (200kHz) |
|
| Usable sensitivity | 16.2dBf | |
| S/N30dB | 1.8μV/75 Ohms | |
| Frequency response(±3.0 dB) | 30 Hz - 14 kHz | |
| S/N( dB) | 50 dB(MONO) | |
| Stereo separation | 35 dB(1 kHz) | |
| AM | ||
| Frequency range (Frequency step) |
530 - 1700 kHz (10 kHz) |
|
| Usable sensitivity | 99μV (40dBμ) | |
| Video | ||
| Color system of external video input | NTSC / PAL | |
| External video input level (RCA jacks) | 1.0Vp-p / 75 Ohms | |
| External audio max input level(RCA jacks) | 1.5V / 25k Ohms | |
| Video Input level (RCA jacks) | 1.0Vp-p / 75 Ohms | |
| Video Output level (RCA jacks) | 1.0Vp-p / 75 Ohms | |
| Audio | ||
| Maximum Power (Front&Rear) | 45Wx4 | |
| Full Bandwidth Power (Front&Rear) | 16Wx4 | |
| Output frequency band | 20 - 20,000Hz | |
| Preout level(V) | 2V / 10k Ohms | |
| Preout impedance(Ω) | 1.4k Ohms | |
| Speaker Impedance(Ω) | 4-8 Ohms | |
| General | ||
| Operating voltage | 12V DC Car Battery | |
| Installation Dimensions WxHxD | 182mm x 112mm x 75mm 7-3/16 x 4-7/16 x 3inch |
|
| Main Unit Installation size W x H x D(w/o sleeve) | 178mm x 100mm x 75mm 7-1/16 x 3-15/16 x 3inch |
|
| Weight | Main unit | 1.2 kg |
| (Including Sleeve and Trim plate) | 2.7lbs | |
