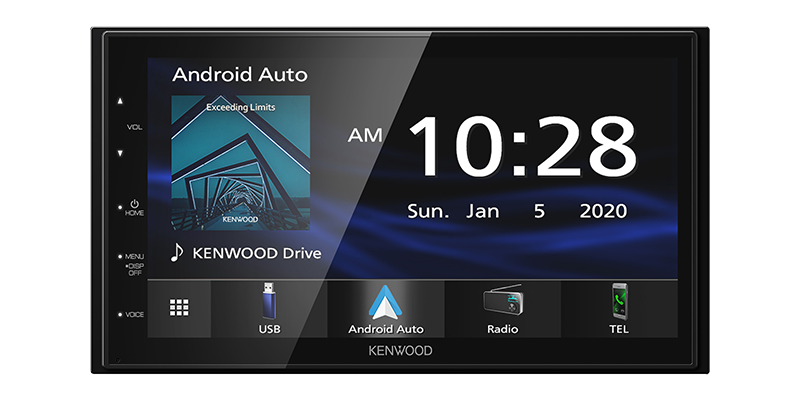

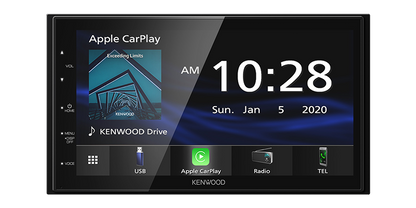

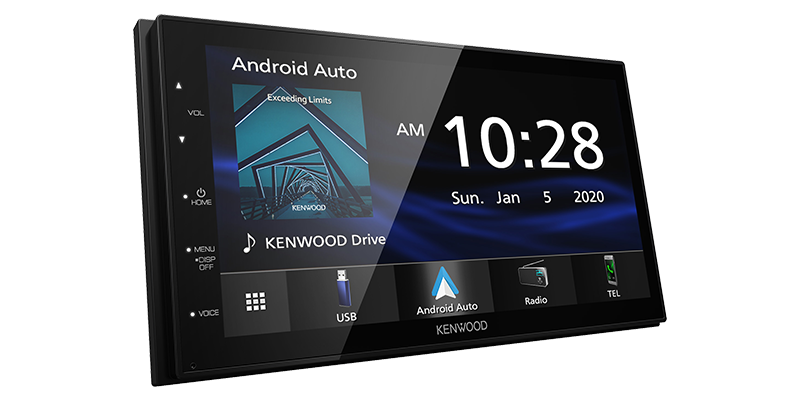

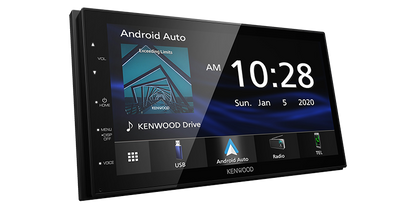

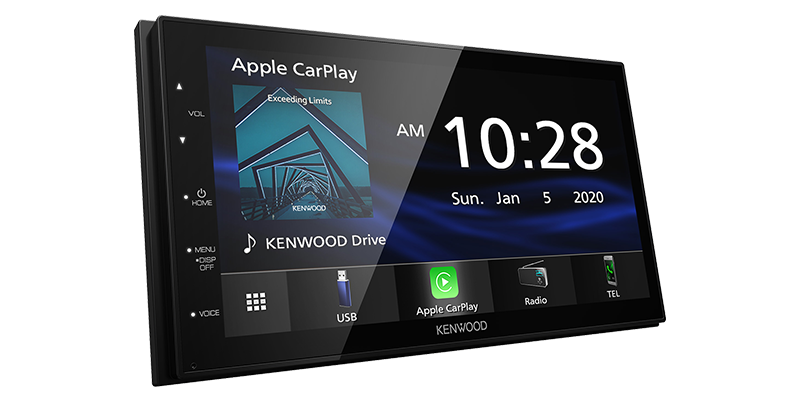

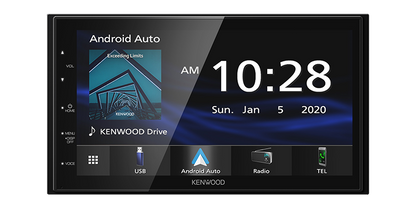

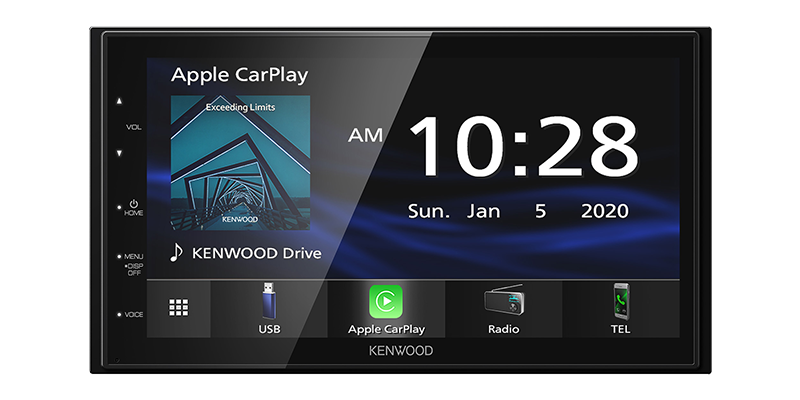

Kenwood DMX4707S Digital Media Receiver 6.8" Capacitive Touch Screen, Bluetooth Apple CarPlay, Android Auto
Kenwood DMX4707S Digital Media Receiver 6.8" Capacitive Touch Screen, Bluetooth Apple CarPlay, Android Auto
Couldn't load pickup availability
- 6.8" WVGA Monitor with Capacitive Touch Panel
- Apple CarPlay™ & Android Auto™
- USB Mirroring for Android
- 13 Band EQ with Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- Short Chassis
- 2 Preouts 2V + Subwoofer Out
- (No CD / NO DVD)
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,
built-in Bluetooth for hands-free calls and streaming music,
as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.
-
Capacitive Touch Panel
Clear glass display with swipe functionality that provides superior picture and touch panel control.
-
Android USB Mirroring
Solution for seamlessly displaying and controlling your smartphone apps on a screen via a USB connection on select Android devices.
-
Parking Guide Lines
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
-
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
-
FLAC Supported
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
-
Short Chassis
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Smartphone Connectivity
Safe, Smart and Comprehensive Control with Apple CarPlay™
Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze.
- To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app.
True Mirroring via USB, 2-Way Touch Control for Android
It allows you to display and control your Android smartphone on the screen of the head unit. You can enjoy your favorite apps on a large display and with impressive sound quality.
Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD Receiver via a USB cable and Bluetooth.
The Best Audio Experience
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
FLAC Support
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
| File format | High-Resolution Audio | Compression | Frequency |
|---|---|---|---|
| WAV | 〇 | - | ～96kHz / ～24bit |
| FLAC | 〇 | Lossless compression | |
| MP3 | - | Lossy compression | ～48kHz / ～16bit |
Playable FULL HD Video Files
You can play back from USB devices audio and video files compressed in various formats.
| Video Codec | Playable up to |
|---|---|
| MPEG4 | 1920 × 1080p |
| H.264 | 1920 × 1080p |
| MKV | 1920 × 1080p |
| WMV | 640 × 480p |
USB sources are available on rear monitor via video output.
| Music Codec | Playable up to |
|---|---|
| FLAC | ～96kHz / ～24bit |
| WAV | ～96kHz / ～24bit |
Safe Driving
Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Additional Features
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Short Chassis Design
Only 2-15/16" (75mm) of depth for more flexible installation.
Remote Control (Optional)
This receiver unit can be operated using the optional remote control KNA-RCDV331.
| Monitor Section | Picture size | 6.75inches(diagonal) wide |
| W x H | 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch | |
| Display system | Transparent TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 1,152,000 | |
| 800H x 480V x RGB | ||
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| USB I/F Section | USB Standard | USB2.0 High Speed |
| File System | FAT 16/32 , exFAT | |
| Maximum Power Supply Current | DC5V=1.5A | |
| D/A Converter | 24Bit | |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / .mkv | |
| Frequency response 192k Sampling | 20 - 20,000 Hz | |
| 96k Sampling | 20 - 20,000 Hz | |
| 48k Sampling | 20 - 20,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Total harmonic distortion 1kHz | 0.2 | |
| Signal to Noise ratio | 75dB | |
| Dynamic range | 75dB | |
| Bluetooth Section | Technology | Bluetooth Ver4.1 |
| Frequency | 2.402 – 2.480 GHz | |
| RF Output Power (E.I.R.P.) | +8dBm (Avg.), Power Class 1 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC / AAC | |
| Multi Profile Support | Multi Profile | |
| Profile | HFP (V1.6) (Hands Free Profile) | |
| SPP (Serial Port Profile) | ||
| A2DP (Advanced Audio Distribution Profile) | ||
| AVRCP (V1.5) (Audio/Video Remote Control Profile) | ||
| PBAP (Phonebook Access Profile) | ||
| DSP Section | Graphics equalizer | |
| BAND | 13 Band | |
| frequency (Hz) (BAND1-13) | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k | |
| Gain | -09 to +09 (-9dB to +9dB) | |
| 2Way X'Over | ||
| HIGH PASS FILTER frequency (Hz) | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 | |
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |
| LOW PASS FILTER frequency (Hz) | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through | |
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |
| Position | ||
| Front / Rear /Subwoofer Delay | 0 to 6.1m (0.01m Step) | |
| Gain | -8 to 0dB | |
| Subwoofer Level | -40 to +6dB | |
| FM | Frequency Range | 87.9 - 107.9 MHz |
| (Frequency step) | (200kHz) | |
| Usable sensitivity | 16.2dBf | |
| S/N:30dB | 1.8μV/75 Ohms | |
| Quieting sensitivity | - | |
| DIN S/N 46dB | - | |
| Frequency response | 30Hz - 14kHz | |
| (±3.0dB) | ||
| S/N (dB) | 50dB (MONO) | |
| Selectivity | - | |
| Stereo separation | 35dB (1kHz) | |
| AM | Frequency Range | 530 - 1700 kHz |
| (Frequency step) | (10kHz) | |
| Usable sensitivity | 99μV(40dBμ) | |
| Video | Color system of external video input | NTSC/ PAL |
| External video input level (Mini jacks) | 1.0Vp-p / 75 Ohms | |
| External audio max input level (RCA jacks) | 1.5V / 25k Ohms | |
| Video Output level (RCA jacks) | 1.0Vp-p / 75 Ohms | |
| Audio | Maximum Power Output (Front&Rear) | 45Wx4 |
| Full Bandwidth Power | 21Wx4 | |
| (at less than 1%THD) | ||
| Output frequency band | 20 - 20,000Hz | |
| Preout level (V) | 2.0V / 10k Ohms | |
| Preout impedance (Ω) | 1.4k Ohms | |
| Speaker Impedance (Ω) | 4-8 Ohms | |
| General | Operating voltage | 12V DC Car Battery |
| Installation Dimensions WxHxD | 182 x 112 x 75 (mm) | |
| 7-3/16 x 4-7/16 x 2-15/16 (inch) | ||
| Main Unit Installation size W x H x D(w/o sleeve) | 178 x 100 x 75 (mm) | |
| 7 x 3-15/16 x 2-15/16 (inch) | ||
| Weight Main unit | 1.1 kg / 2.4 lbs | |
| (Including Sleeve and Trim plate) | 1.3 kg / 2.8 lbs | |
