Kenwood

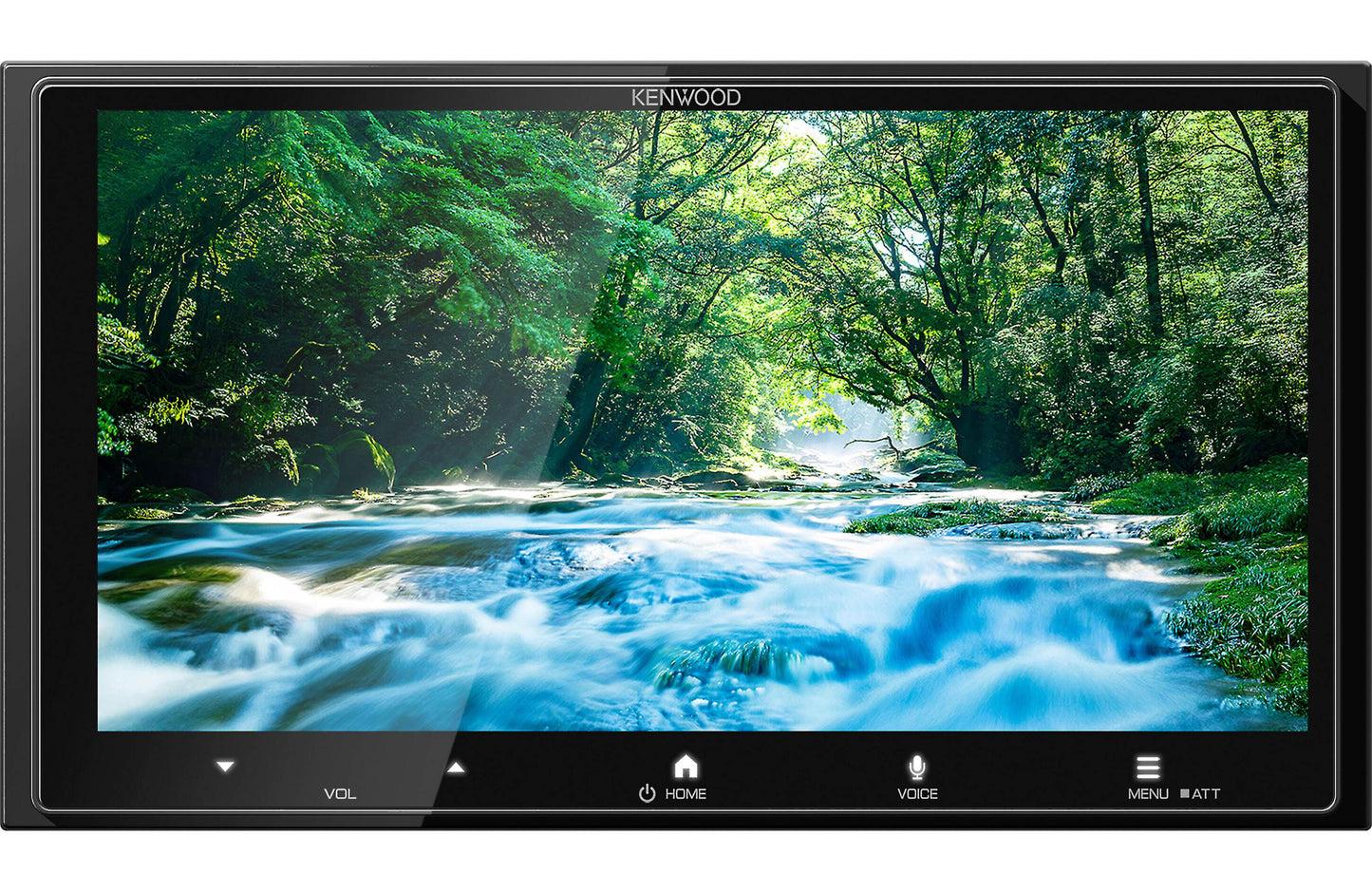

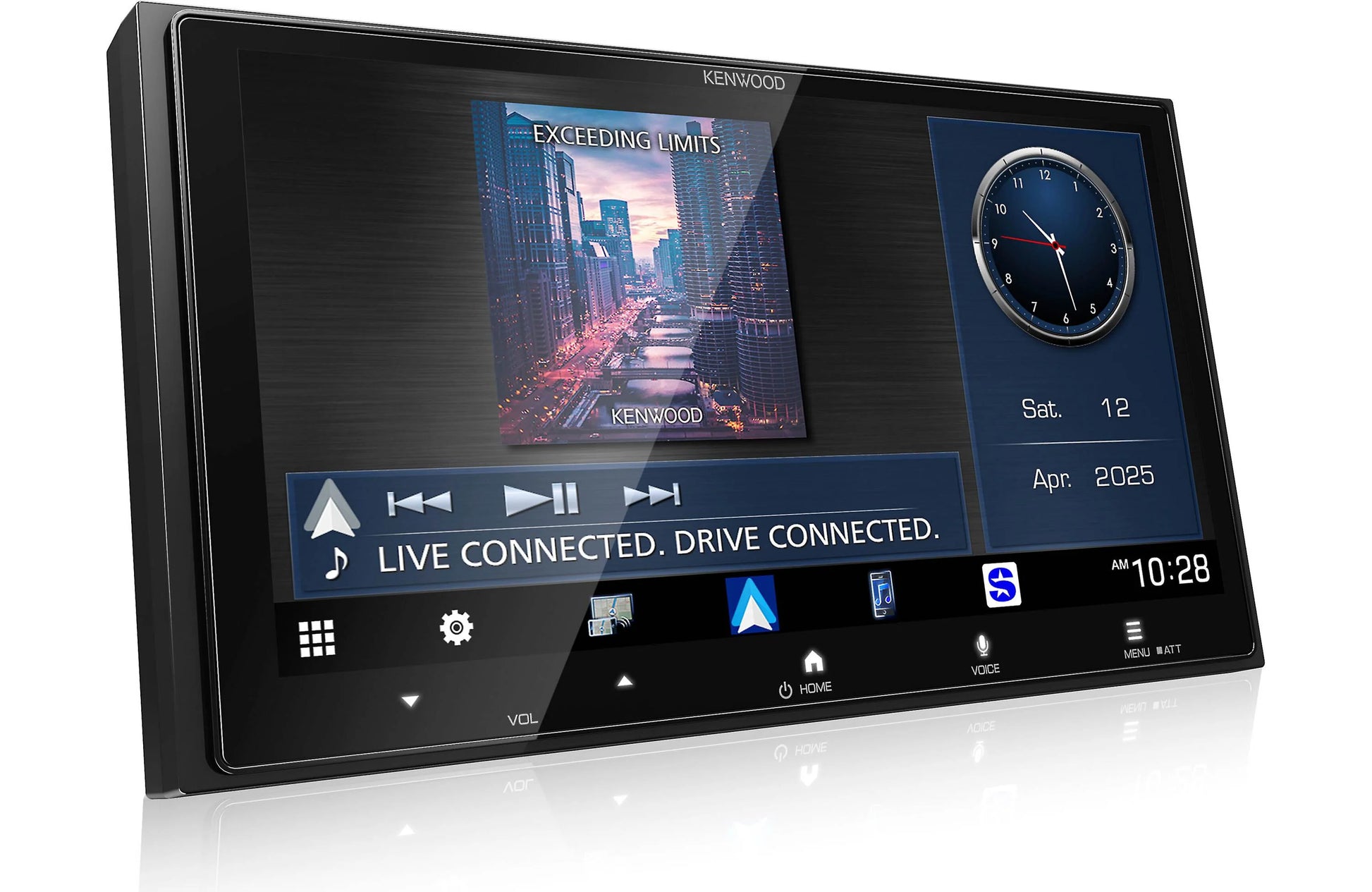

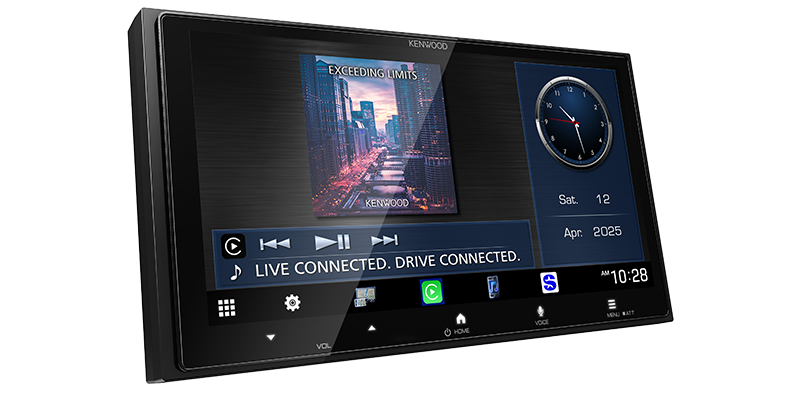

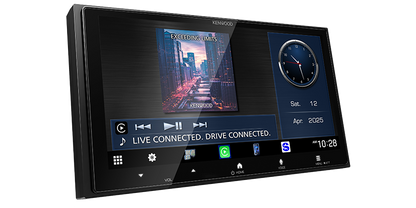

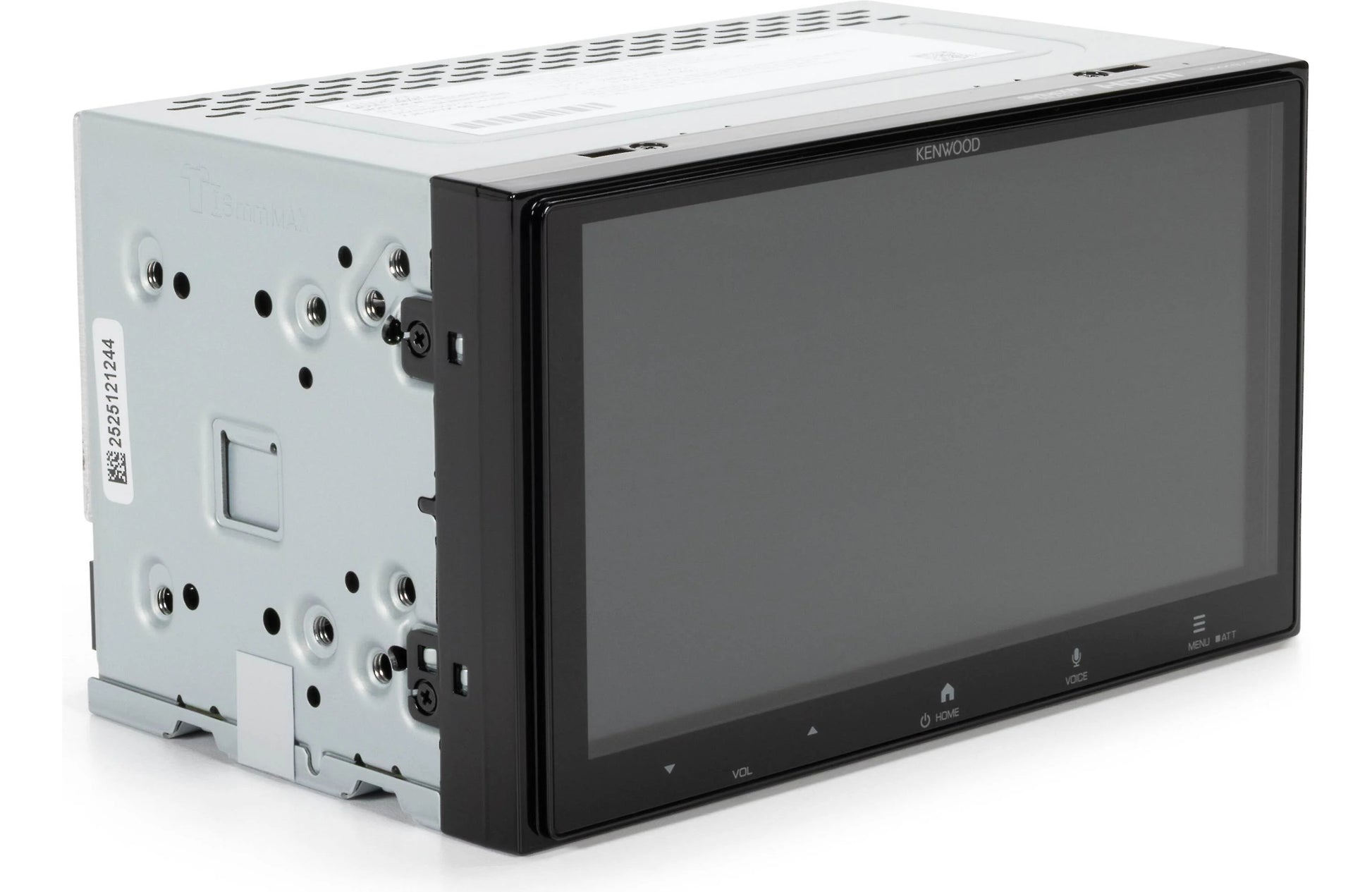

Kenwood DMX8710S Monitor with Receiver 6.92" Digital Multimedia Receiver CarPlay Android Auto

Kenwood DMX8710S Monitor with Receiver 6.92" Digital Multimedia Receiver CarPlay Android Auto

$549.00
$549.00
Sale Sold out

DMX8710SMonitor with Receiver
6.92" Digital Multimedia Receiver

  • 6.92" High Definition Monitor with Capacitive Touch Panel
  • Android Auto™ & Android Auto™ Wireless
  • Wired and Wireless Apple CarPlay®
  • Wireless Mirroring for Smartphones
  • SiriusXM Radio Ready
  • iDatalink Maestro Ready
  • 2 Camera Inputs
  • HD Rear Camera Ready
  • HDMI Input
  • Built-in Bluetooth & Wi-Fi
  • 3 Preouts 3V



  • Wireless Mirroring for Smartphone

    Wireless Mirroring

    Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select smartphone devices.

  • 6.92 HD Display

    HD (1280 x 720)

    The High Definition display reproduces approximately 2.4 times higher resolution than the conventional WVGA display.

  • HD REAR Camera Ready

    HD Rear Camera Input

    HD Rear Camera (CMOS-740HD) can be connected for High Definition viewing.

  • PARKING Guidelines

    Parking Guidelines

    Parking guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

  • USB 2.1A CHARGING

    2.1A Rapid Charge

    Rapidly charge your compatible smartphone with the USB port, up to a maximum of 2.1A

  • 13 Band EQ

    13 Band Graphic EQ

    You can adjust the level of each frequency band and create an original equalizer curve to match the in-car environment or your specific preference.

  • Time Alignment

    Digital Time Alignment

    Virtually adjusts your listening position to the centre of the car.

  • DUAL PHONE CONNECTION

    Dual Phone Connection

    While you are connected through Bluetooth, with a touch of a button you can switch between two phones



    High Definition Display

    HD 1280x720 DISPLAY

    High Definition
    — Overwhelming Power of Expression —

    6.92" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

    2.4x Resolution
    of the WVGA Display

    Smartphone Connectivity

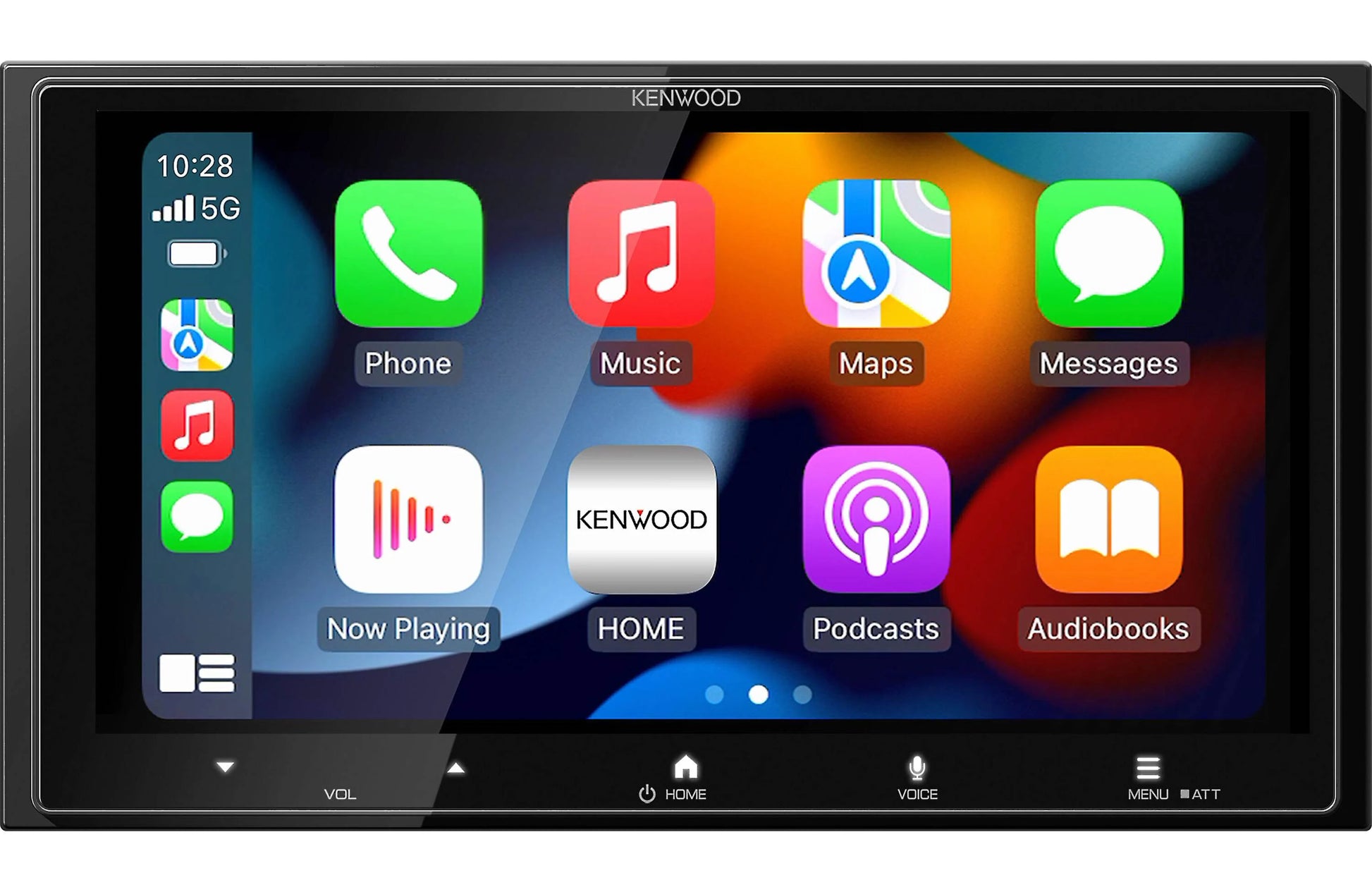

    Apple CarPlay® – Connect Wirelessly or via USB

    A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

    *Some features, applications, and services are not available in all areas.
    For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

    Works with Apple CarPlay

    Android Auto ™ – Connect Wirelessly or via USB

    Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

    *Compatible Android phone and compatible active data plan required.
    *Some features and devices may not be available in all countries. Subject to availability.

    *Selected mobile phones only.

    Works with Android Auto

    Wireless Mirroring for Smartphones

    By installing the “CarbitLink-EasyConnection” app, your smartphones seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram.

    *Selected smartphones only

    • CarbitLink
    • Download on the App Store
    • GET IT ON Google Play

    HDMI Mirroring for Smartphones

    Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 6.92" monitor. KCA-HD200 optional HDMI cable sold separately.

    The Best Audio Experience

    Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

    Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

    Playable Video & Audio Files

    You can play back from USB devices audio and video files compressed in various formats.

    Audio Format Video Format

    Safe Driving

    ENHANCED VEHICLE INTEGRATION

    Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles. For added convenience, radar detector information can be shown on the screen when paired with a compatible K40 radar detector system (sold separately). With the iDatalink Maestro RR2, you can also integrate an Escort radar detector system (sold separately) for a seamless driving experience.

    *Available features vary by vehicle

    maestro

    Dual Camera Inputs and Parking Guide Lines

    Two camera inputs provide users the ability to add both a front and rear camera for enhanced driver safety and convenience. Built-in, adjustable parking guidelines further add to its effectiveness.
    By installing a rear camera at the front of the vehicle and using the receiver's Mirror function, you can invert the image and use it as a front camera.

    HD Rear Camera Input

    The optional CMOS-740HD camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.

    WVGA Camera

    HD Camera

    Additional Features

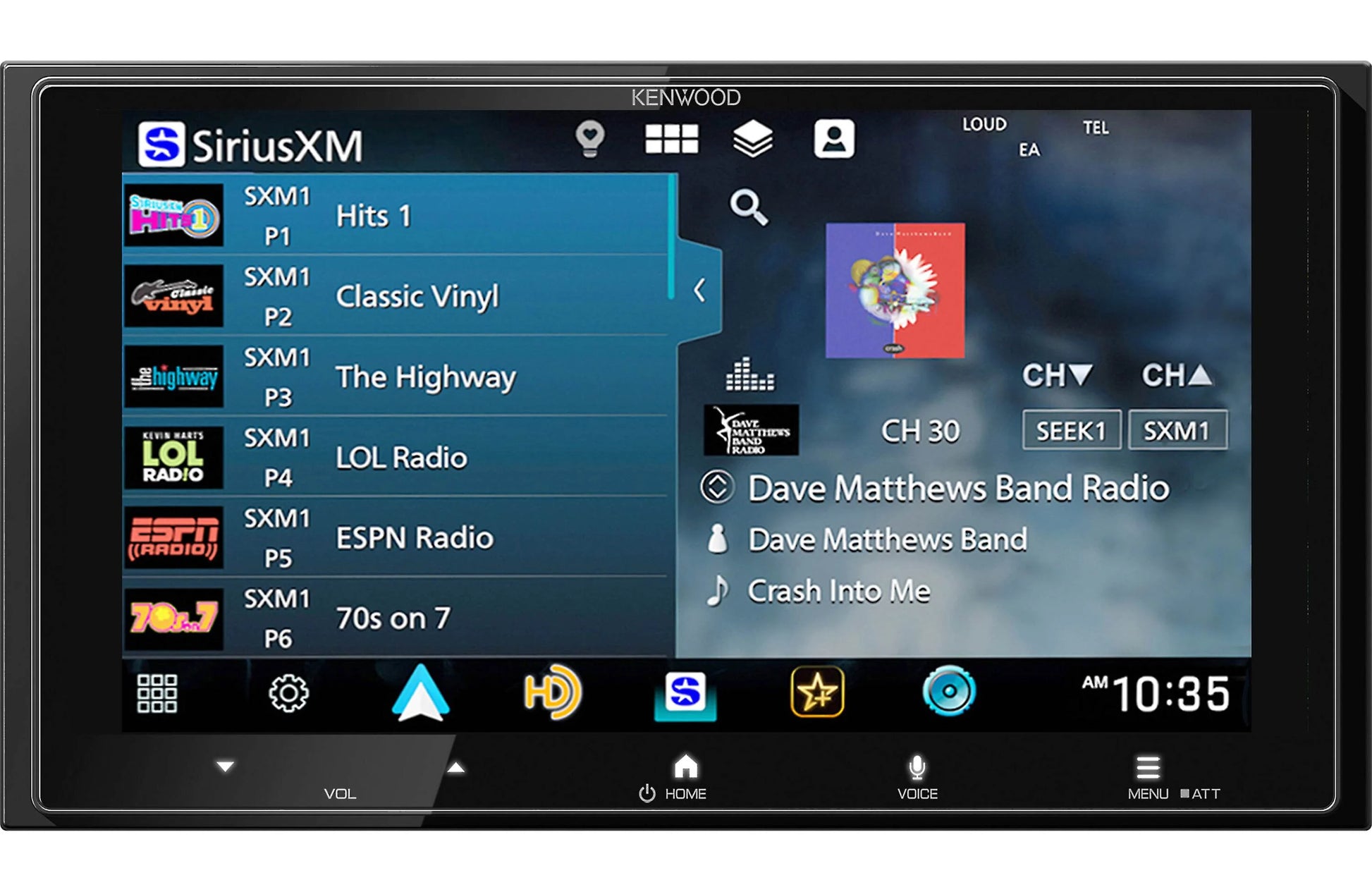

    SiriusXM Ready
    (optional SiriusXM tuner required, sold separately)

    Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

    SiriusXM READY

    High Current 2.1A Charging

    Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.

    *Compatibility depends on the smartphone.

    Remote Control (Optional)

    This receiver unit can be operated using the optional remote control KCA-RCDV340.

    Main Unit Monitor
    Section    		 Picture size 6.92 inches (diagonal)
    W x H 156.48 (W) x 80.136 (H) mm
    6.16 (W) x 3.16 (H) inch
    Display system LCD panel
    AHVA (advance hybrid view angle)
    Drive system TFT active matrix system
    Number of pixels 2,764,800
    1280H x 720V x RGB
    Pixel arrangement RGB striped arrangement
    Back lighting LED
    USB I/F
    Section    		 Connector Type Type-A
    USB Standard USB2.0 High Speed
    File System FAT 16/32, exFAT, NTFS
    Maximum Power Supply Current DC5V = 2.1A
    D/A Converter 24 Bit
    Audio Decoder MP3 / WMA / AAC / WAV / FLAC
    Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
    Frequency response
    192k Sampling 20 - 20,000 Hz
    96k Sampling 20 - 20,000 Hz
    48k Sampling 20 - 20,000 Hz
    44.1k Sampling 20 - 20,000 Hz
    Total harmonic distortion 1 kHz Typ: 0.05%
    Signal to Noise ratio Typ: 78 dB
    Dynamic range Typ: 89 dB
    Wi-Fi IEEE Standard 802.11 a/b/g/n/ac
    Frequency Range Dual Band ( 2.4 GHz / 5 GHz )
    Channels -
    Auto (149,153,157,161 ch)
    Transfer rates (MAX) 11a: 54 Mbps / 11b: 11 Mbps /
    11g: 54 Mbps / 11n: 130 Mbps /
    11ac: 390 Mbps
    Output Power
    2.4 GHz/SISO    		 11b: 15 dBm + 3 / -2 dBm /
    11g: 14 dBm + 3 / -0 dBm /
    11n (20 MHz) : 13 dBm + 4 / -1 dBm /
    Output Power
    5 GHz/SISO    		 11a: 12 dBm + 4 / -2d Bm /
    11n (20 MHz) : 12 dBm ± 4 dBm /
    11n (40 MHz) : 12 dBm ± 4 dBm /
    11ac (20 MHz) : 12 dBm ± 4 dBm /
    11ac (40 MHz) : 12 dBm ± 4 dBm /
    11ac (80 MHz) : 9 dBm ± 3 dBm /
    Bluetooth
    Section    		 Technology Bluetooth Ver5.3
    Frequency 2.402 - 2.480 GHz
    RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
    Maximum Communication range Line of sight approx.10m (32.8 ft)
    Audio Codec SBC / AAC
    Multi Profile Support Support
    Profile Support HFP v1.7
    Support SPP v1.2
    Support A2DP 1.4
    Support AVRCP v1.6
    Support PBAP v1.2
    HDMI Connector Type Type-D
    Input Resolution 640x480 60 Hz 4:3
    720x480 60 Hz 4:3
    720x480 60 Hz 16:9
    1280x720 60 Hz 16:9
    Input Audio Type 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
    DSP
    Section    		 Graphics equalizer
    BAND 13 Band
    frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
    Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
    2Way X'Over
    HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
    SLOPE -6/-12/-18/-24[dB/Oct.]
    LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
    SLOPE -6/-12/-18/-24[dB/Oct.]
    3Way X'Over
    HIGH PASS FILTER frequency Through/250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
    SLOPE -12/-18/-24[dB/Oct.]
    Band PASS FILTER frequency Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
    250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
    SLOPE -12/-18/-24[dB/Oct.]
    LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/Through[Hz]
    SLOPE -12/-18/-24[dB/Oct.]
    Position
    Front / Rear /Subwoofer Delay 0 - 20.01ft (0.03ft/tep)
    Gain -8 to 0 dB
    Subwoofer Level -50 to +10 dB
    FM Frequency Range 87.9～107.9 (MHz)
    (Frequency step) 200 kHz
    Usable sensitivity Typ: 8 dBf
    S/N 30 dB
    Frequency response 100 Hz - 10 kHz
    (±3.0dB)
    S/N (dB) Typ: 75dB
    Stereo separation Typ: 45 dB
    AM Frequency Range 530～1700 (kHz)
    (Frequency step) 10 kHz
    Usable sensitivity Typ: 29 dBu
    Video Color system of external video input NTSC/PAL
    External video input level (RCA jacks) Typ: 1 Vp-p / 75 Ohms
    External video input level (Mini jacks) Typ: 1 Vp-p / 75 Ohms
    External audio max input level (RCA jacks) -
    External audio max input level (Mini jacks) 1.1 VRMS / 10 kOhms
    Video Input level (RCA jacks) -
    Video Output level (RCA jacks) Typ: 100 IRE
    Audio Output level (RCA jacks) Typ: 3 V /10k ohms
    Audio Maximum Power Output (Front&Rear) 50Wx4
    Output frequency band 20 - 20,000 Hz
    Preout level (V) Typ: 3 V /10k ohms
    Preout impedance (Ω) =< 600 Ohms
    Speaker Impedance (Ω) 4-8 Ohms
    General
    Chassis Dimensions WxHxD 178 mm x 100 mm x 109 mm
    7 x 3-15/16 x 4-5/16 inch
    Weight 1.14 kg
    2.6 Ib
