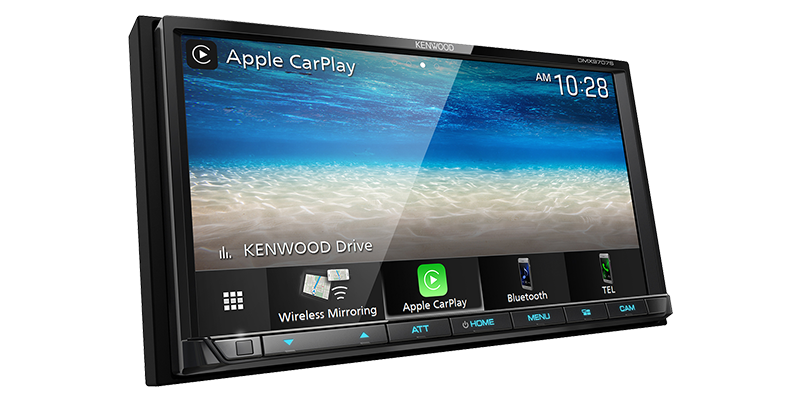

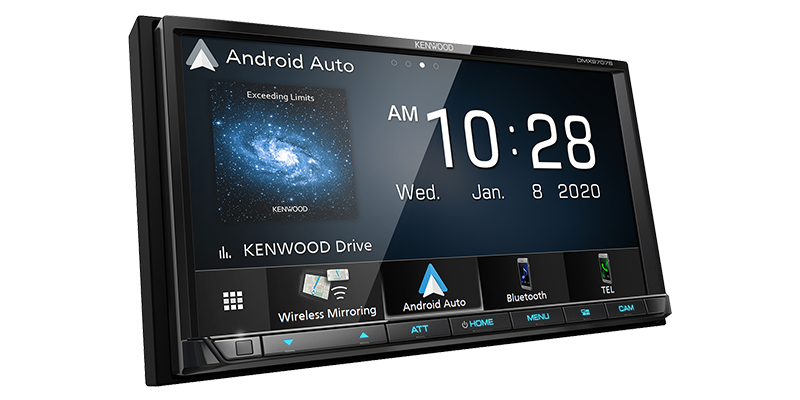

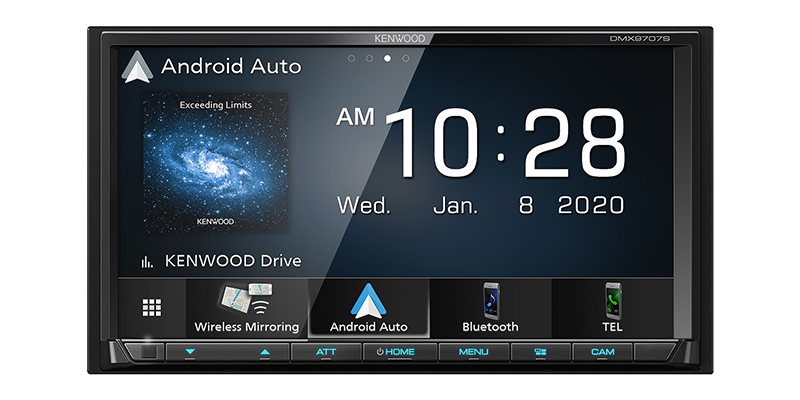

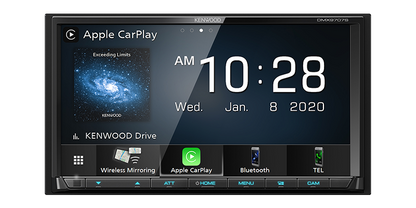

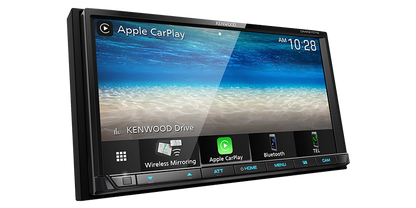

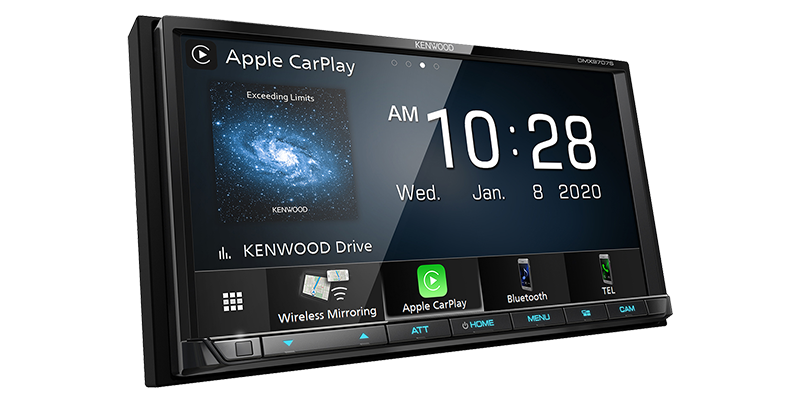

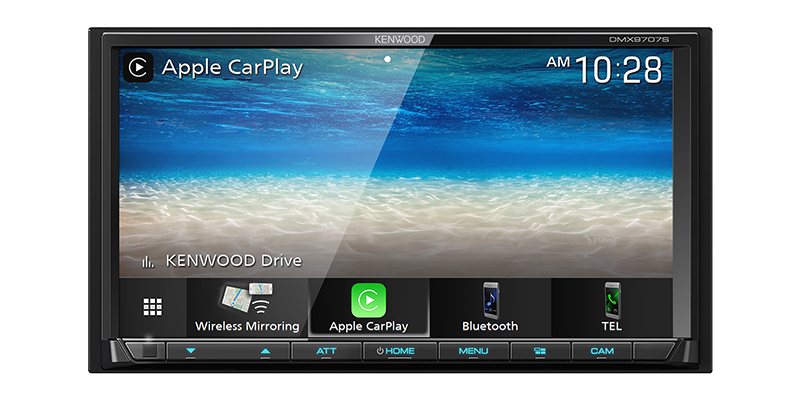

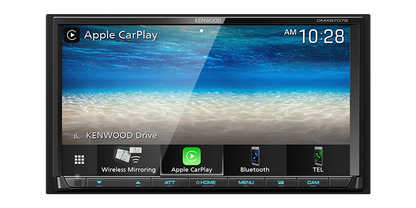

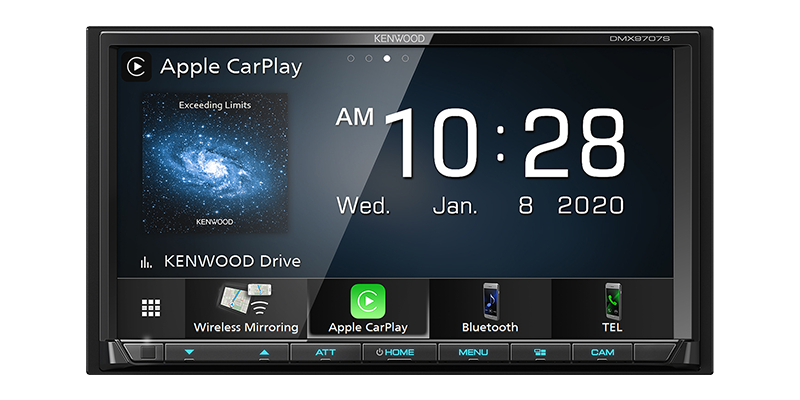

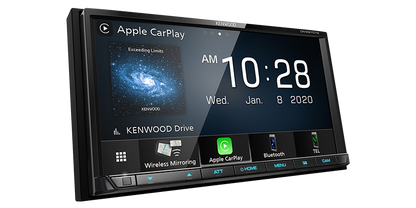

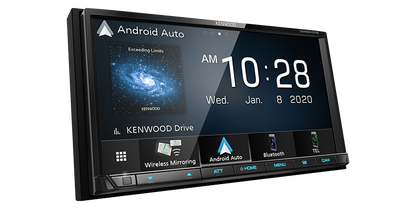

Kenwood DMX9707S 2-DIN 6.95" Touch Screen In Dash Media Receiver Bluetooth CarPlay Android Auto
Kenwood DMX9707S 2-DIN 6.95" Touch Screen In Dash Media Receiver Bluetooth CarPlay Android Auto
- 6.95" WVGA Monitor
- Android Auto™ & Android Auto™ Wireless
- Wired and Wireless Apple CarPlay™
- Wireless Mirroring for Android
- USB Mirroring for iPhone and Android
- High-Resolution Audio
- Dash Camera Link

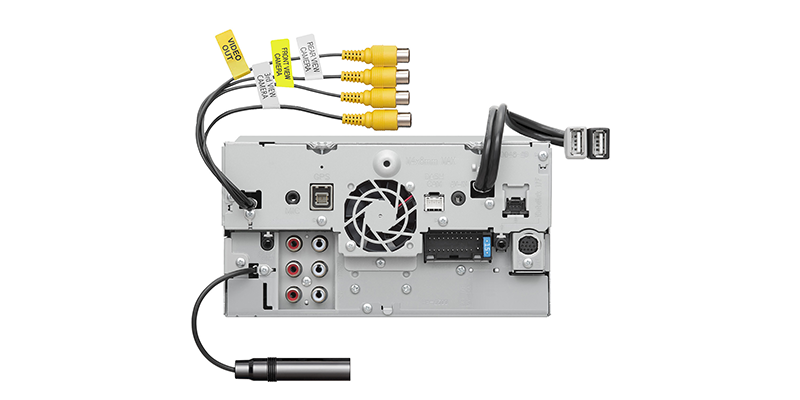

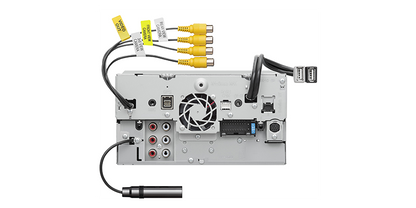

- 4 Camera Inputs
- 3 Preouts 4V
- (No CD or DVD Player)
-
Clear Resistive Touch Panel
A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation
-
Customizable Multi Widget
Customize your Home Screen by selecting four shortcut/ information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, and more.
-
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
-
USB Mirroring
USB Mirroring via USB for iPhone & Android, 2-way Touch Control for Android.
-
4 Camera Inputs
Optional camera connection method for up to 4 cameras in various configurations.
-
Parking Guide Lines
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
-
Dash Cam Link
Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.
-
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
-
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
-
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
-
FLAC Supported
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
-
DUAL USB
Multiple USB ports provide additional inputs for music sources or smartphone battery charging.
-
Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting
Safe, Smart and Comprehensive Control with Apple CarPlay™
Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze.
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
True Mirroring via USB for iPhone & Android, 2-Way Touch Control for Android
True Mirroring allows you to display and control your smartphone on the receiver screen via USB. You can enjoy your favorite apps on a large display with impressive sound quality. Before starting True Mirroring, just install the free app “Mirroring for KENWOOD” on your smartphone and connect it to the receiver via Bluetooth as well as a USB cable.
USB Mirroring with iPhone has the following restrictions:
- 1) During USB mirroring on iOS device, when a call is received, USB mirroring disconnects and needs to be manually reconnected.
- 2) USB Mirroring is not compatible with the original Music application on the iPhone.
- 3) USB Mirroring is disconnected when the iPhone goes to the sleep mode.
- 4) Some apps may have additional restrictions.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Control the Receiver from Your Smartphone with the KENWOOD Remote App S
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
FLAC Support
Compatible with a broad range of audio file formats such as FLAC and WAV, to MP3, WMA and AAC.
Enjoy the Many Infotainment Features Available on the iDatalink Maestro RR
When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Factory driver assistance systems and cameras are also retained and work as they did originally. Parking sensor display and dynamic parking guide lines are also added in supported vehicles on the rear camera screen. Vehicle information such as HVAC, performance information, and TPMS can also be displayed. Radar detector information can also be displayed on the screen when used with a compatible K40 or ESCORT* radar detector system. ESCORT compatible with Maestro RR2 only.
Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
4 Camera Inputs
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a front camera, a KENWOOD dashboard camera (DRV-N520 sold separately), and rear and side (blind spot) cameras. Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front camera, and a reverse camera. Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
Dash Cam Link Ready so You Can Drive with Maximum Comfort
Full HD video recording is available with a compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.
Customizable Multi Widget Screen
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more.
Equipped with Dual USB Ports
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Specs
Monitor Section | Picture size | 6.95 inches(diagonal) wide |
W x H | 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch | |
Display system | TN LCD panel | |
Drive system | TFT active matrix system | |
Number of pixels | 1,152,000 | |
800H x 480V x RGB | ||
Effective pixels | 99.99% | |
Pixel arrangement | RGB striped arrangement | |
Back lighting | LED | |
USB I/F Section | USB Standard | USB2.0 High Speed |
File System | FAT 16/32, exFAT, NTFS | |
Maximum Power Supply Current | DC5V=1.5A | |
D/A Converter | 24/32Bit | |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis | |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
Frequency response 192k Sampling | 20 - 88,000 Hz | |
96k Sampling | 20 - 44,000 Hz | |
48k Sampling | 20 - 22,000 Hz | |
44.1k Sampling | 20 - 20,000 Hz | |
Total harmonic distortion 1kHz | 0.010% | |
Signal to Noise ratio | 98.5dB | |
Dynamic range | 89dB | |
Wireless Mirroring Section | Mode | Sink |
Copyright protection | HDCP2.2 | |
Touch Control | UIBC | |
Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac |
Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | |
Channels | Auto(1-11ch) | |
Auto(149,153,157,161ch) | ||
Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | |
11g: 54 Mbps / 11n: 300 Mbps / | ||
11ac: 867 Mbps | ||
Output Power 2.4GHz/SISO | 11b:14dBm±2dB / 11g:13dBm±2dB / | |
11n(20MHz):12dBm±2dB | ||
Output Power 5GHz/SISO | 11a:9dBm±2dB / | |
11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / | ||
11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB | ||
Output Power 5GHz/MIMO | 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / | |
11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB | ||
Bluetooth Section | Technology | Bluetooth Ver5.0 |
Frequency | 2.402 – 2.480 GHz | |
RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
Maximum Communication range | Line of sight approx.10m(32.8ft) | |
Audio Codec | SBC / AAC | |
Multi Profile Support | Multi Profile | |
Profile | HFP (V1.7) (Hands Free Profile) | |
SPP (Serial Port Profile) | ||
A2DP (Advanced Audio Distribution Profile) | ||
AVRCP (V1.6) (Audio/Video Remote Control Profile) | ||
- | ||
PBAP (Phonebook Access Profile) | ||
DSP Section | Graphics equalizer | |
BAND | 13Band | |
frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | |
Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | |
2Way X'Over | ||
HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | |
SLOPE | -6/-12/-18/-24[dB/Oct.] | |
LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | |
SLOPE | -6/-12/-18/-24[dB/Oct.] | |
Position | ||
Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) | |
Gain | -8 to 0dB | |
Subwoofer Level | -50 to +10dB | |
FM | Frequency Range | 87.9MHz - 107.9MHz |
(Frequency step) | (200kHz) | |
Usable sensitivity | 9.3dBf | |
S/N30dB | 0.8μV/75Ω | |
Quieting sensitivity | 10.2dBf | |
DIN S/N 46dB | 1.13μV / 75Ohms | |
Frequency response | 30Hz - 15kHz | |
(±3.0dB) | ||
S/N (dB) | 65dB (MONO) | |
Selectivity | Over 80dB (±400kHz) | |
Stereo separation | 45dB (1kHz) | |
AM | Frequency Range | 530kHz - 1700kHz |
(Frequency step) | (10kHz) | |
Usable sensitivity | 28dBμ | |
Video | Color system of external video input | NTSC/PAL |
External video input level (RCA jacks) | - | |
External video input level (Mini jacks) | 1 Vp-p / 75 Ohms | |
External audio max input level (RCA jacks) | - | |
External audio max input level (Mini jacks) | 2 V / 25 kOhms | |
Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms | |
Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms | |
Audio Output level (RCA jacks) | - | |
Audio Output level (Mini jacks) | 0.9 V / 10 kOhms | |
Analog RGB input | - | |
Audio | Maximum Power Output (Front&Rear) | 50Wx4 |
Typical Power Output (Front&Rear) | Full Bandwidth Power | |
(at less than 1%THD) | ||
22Wx4 | ||
Output frequency band | 20 - 88,000Hz | |
Preout level (V) | 4V / 10kOhms | |
Preout impedance (Ω) | =< 300 Ohms | |
Speaker Impedance (Ω) | 4-8 Ohms | |
Navigation Section | ||
Installation Dimensions WxHxD | 178mm x 100mm x 155mm | |
7 x 3-15/16 x 6-1/8 inch | ||
(with Sleeve) | 182mm x 112mm x 153mm | |
7-3/16 x 4-7/16 x 6 inch | ||
Weight Main unit | 1.7 kg | |
3.8 lb | ||
(Excluding trim plate and sleeve) |
