Kenwood

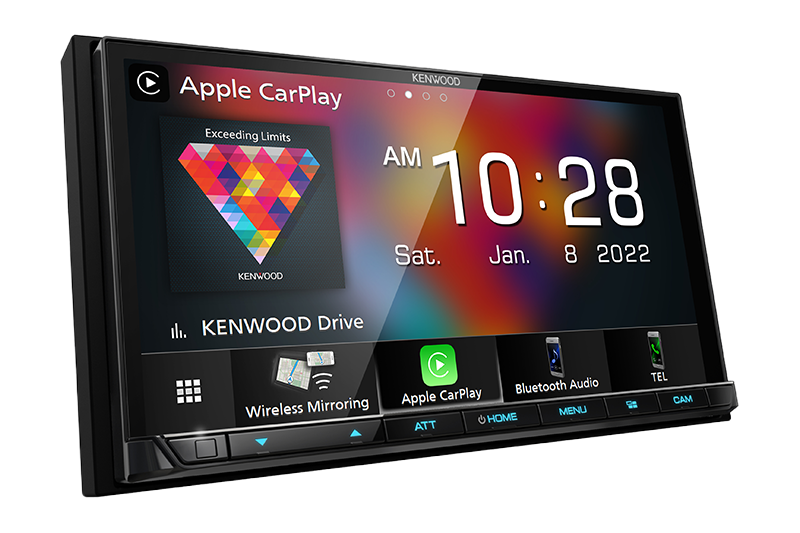

Kenwood DMX9708S 2-DIN Car Stereo, Wireless Apple CarPlay/Android A, SXM/Maestro
Kenwood DMX9708S 2-DIN Car Stereo, Wireless Apple CarPlay/Android A, SXM/Maestro
Regular price
$649.00
Regular price
Sale price
$649.00
Unit price
/
per
Couldn't load pickup availability
KENWOOD DMX9708S
6.95 Touch Screen In Dash Media Receiver with Android Auto & Android Auto Wireless
6.95" WVGA Monitor with Capacitive Touch Panel
Android Auto & Android Auto Wireless
Wired and Wireless Apple CarPlay
High-Resolution Audio
Wireless Mirroring for Android
USB Type-C
13 Band EQ & Digital Time Alignment
4 Camera Inputs
3 Preouts 4.0V
Wifi Certified
iDatalink Maestro Ready
Made for iPhone iPod
Bluetooth BUil-In
SiriusXM Ready
Hi-Res Audio
HDMI
Capacitive Touch Panel
Clear glass display with swipe functionality that provides superior picture and touch panel control.
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a
screen without cables on select Android devices.
4 Camera Inputs
Optional camera connection method for up to 4 cameras in various configurations.
Parking Guidelines
Parking guidelines (requires installation of compatible backup camera) that
enhance the effectiveness of a backup camera.
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time.
You can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Drive EQ
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
USB Type-C
USB Type-C cable and USB Type-A adapter are included to the set.
Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A
Variable Color Illumination
Bright variable color LEDs can be adjusted to match any
color dash lighting.
Short Chassis
With receivers shorter in depth than any of our previous models, installation is
made easier in a wider range of cars than ever before.
Smartphone Connectivity
Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri
or touch the receiver’s display to get directions from Apple Maps, make phone
calls, listen to voicemail, send and receive texts, and listen to music from Apple
Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a
way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps
like Google Maps™ and Waze™ are also supported.
KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).
Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions
and stay focused on the road. KENWOOD’s multimedia receivers combine an
intuitive voice controlled interface with a large touch screen and superior sound
quality, making it the perfect complement for your in-car life.
You can even listen to and control music from your favorite streaming
services like Pandora and Spotify. Navigate to where you need to with
Google Maps or Waze. KENWOOD Wi-Fi receivers also support
Android Auto wirelessly (compatible phone required).
- To use Android Auto on your car display, you’ll need an Android Auto compatible
vehicle or aftermarket stereo, an Android phone
running Android 6.0 or higher, and the Android Auto app.
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
HDMI Input
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the monitor. KCA-HD200 optional HDMI cable sold separately.
Bluetooth streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Bluetooth Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Control the Receiver from Your Smartphone with the KENWOOD Remote App S
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
KENWOOD Portal App
Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.
The Best Audio Experience
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24Bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.
Smooth waveforms
Loss of smoothness
Fine waveforms
* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.
Video Codec Playable up to
MPEG4 1920 × 1080p
H.264 1920 × 1080p
MKV 1920 × 1080p
WMV 1920 × 1080p
Music Codec Playable up to
FLAC ～192kHz / ～24bit
WAV ～192kHz / ～24bit
Safe Driving
ENHANCED VEHICLE INTEGRATION
Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, this model feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately).
*Available features vary by vehicle
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
4 Camera Inputs
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a front camera, a KENWOOD dashboard camera (DRV-N520 sold separately), and rear and side (blind spot) cameras. Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front camera, and a reverse camera. Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
Dash Cam Link Ready
Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.
| Monitor Section |
Picture size | 6.95 inches(diagonal) wide |
|---|---|---|
| W x H | 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch | |
| Display system | TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 1,152,000 | |
| 800H x 480V x RGB | ||
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| USB I/F Section |
Connector Type | Type-C |
| USB Standard | USB2.0 High Speed | |
| File System | FAT 16/32, exFAT, NTFS | |
| Maximum Power Supply Current | DC5V=3.0A | |
| D/A Converter | 24/32Bit | |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| Frequency response 192k Sampling |
20 - 88,000 Hz | |
| 96k Sampling | 20 - 44,000 Hz | |
| 48k Sampling | 20 - 22,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Total harmonic distortion 1kHz | 0.010% | |
| Signal to Noise ratio | 98.5dB | |
| Dynamic range | 89dB | |
| Wireless Mirroring Section |
Mode | Sink |
| Copyright protection | HDCP2.2 | |
| Touch Control | UIBC | |
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | |
| Channels | Auto(1-11ch) | |
| Auto(149,153,157,161ch) | ||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | |
| 11g: 54 Mbps / 11n: 300 Mbps / | ||
| 11ac: 867 Mbps | ||
| Bluetooth Section |
Technology | Bluetooth Ver5.0 |
| Frequency | 2.402 - 2.480 GHz | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC / AAC | |
| Multi Profile Support | Multi Profile | |
| Profile | HFP (V1.7) (Hands Free Profile) | |
| SPP (Serial Port Profile) | ||
| A2DP (Advanced Audio Distribution Profile) | ||
| AVRCP (V1.6) (Audio/Video Remote Control Profile) | ||
| PBAP (Phonebook Access Profile) | ||
| HDMI | Connector Type | Type-D |
| Input Resolution | VGA (640x480p @59.94Hz/60Hz) | |
| 480p (720x480p @59.94Hz/60Hz) | ||
| 720p(1280x720p @59.94Hz/60Hz) | ||
| Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM | |
| DSP Section |
Graphics equalizer | |
| BAND | 13Band | |
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | |
| 2Way X'Over | ||
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| Position | ||
| Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) | |
| Gain | -8 to 0dB | |
| Subwoofer Level | -50 to +10dB | |
| FM | Frequency Range | 87.9MHz - 107.9MHz |
| (Frequency step) | (200kHz) | |
| Usable sensitivity | 9.3dBf | |
| S/N 30dB | 0.8μV/75Ω | |
| Quieting sensitivity | 10.2dBf | |
| DIN S/N 46dB | 1.13μV / 75Ohms | |
| Frequency response | 30Hz - 15kHz | |
| (±3.0dB) | ||
| S/N(dB) | 65dB (MONO) | |
| Selectivity | Over 80dB (±400kHz) | |
| Stereo separation | 45dB (1kHz) | |
| AM | Frequency Range | 530kHz - 1700kHz |
| (Frequency step) | (10kHz) | |
| Usable sensitivity | 28dBμ | |
| Video | Color system of external video input | NTSC/PAL |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms | |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 |
| Typical Power Output (Front&Rear) | Full Bandwidth Power | |
| (at less than 1%THD) | ||
| 22Wx4 | ||
| Output frequency band | 20 - 88,000Hz | |
| Preout level (V) | 4V / 10kOhms | |
| Preout impedance (Ω) | =< 300 Ohms | |
| Speaker Impedance (Ω) | 4-8 Ohms | |
| General | Operating voltage | 12V DC Car Battery |
| Installation Dimensions WxHxD | ||
| (Main Unit Installation size) | 178mm x 100mm x 85mm | |
| 7 x 3-15/16 x 3-3/8 inch | ||
| (with Sleeve) | 182mm x 112mm x 85mm | |
| 7-3/16 x 4-7/16 x 3-3/8 inch | ||
| Weight Main unit | 1.5 kg | |
| 3.2 lb | ||
| (Sleeve included) | ||
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.
Customizable Multi Widget Screen
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more.
USB Type-C
USB Type-C cable and USB Type-A adapter are included to the set.Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Short Chassis Design
Less than 3.5"(85mm) of depth for more flexible installation
Remote Control (Optional)
This receiver can be operated using the optional remote control KCA-RCDV340.
