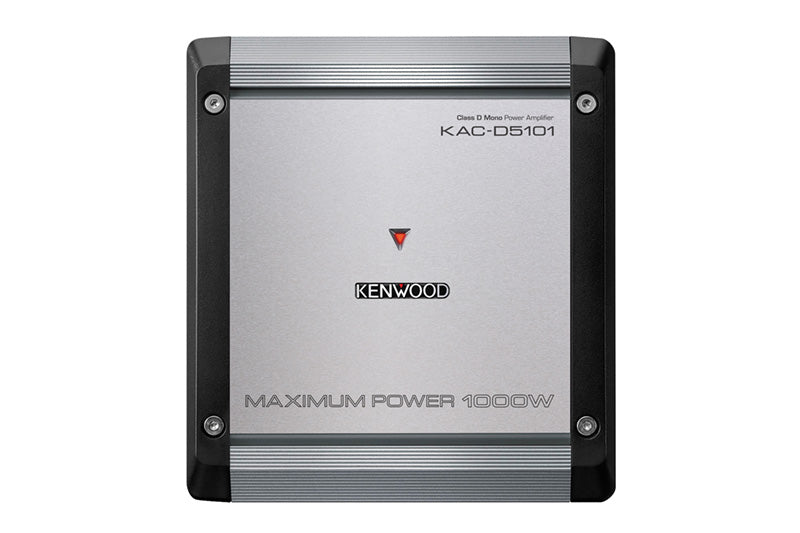

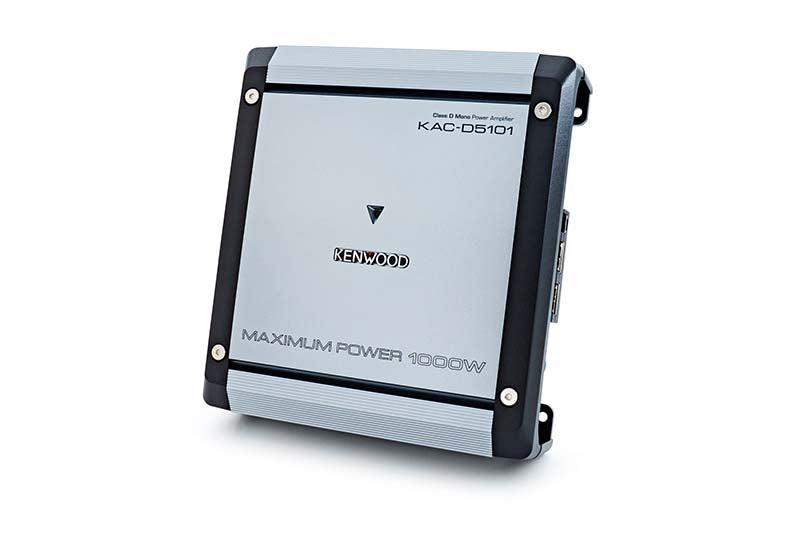

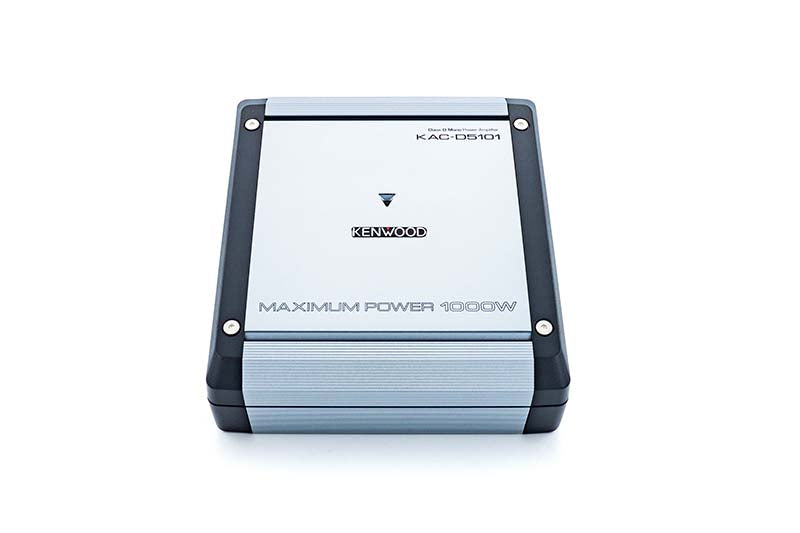

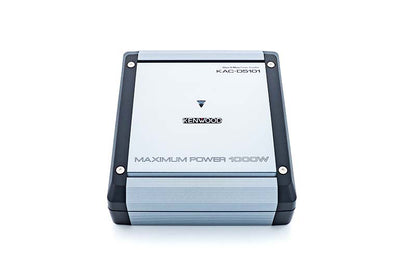

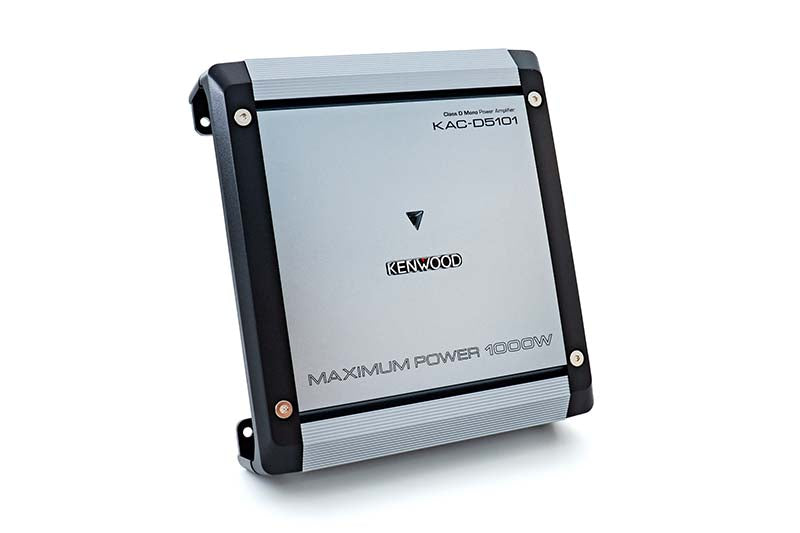

Kenwood KAC-D5101 Class D Mono Car Audio Amplifier 1000 Watts Max Power

KAC-D5101Class D Mono Power Amplifier

• Max Power 1000W
• RMS 300W (4Ω)
• RMS 500W (2Ω)
• Size (inch) (W) 6-11/16" x (H) 2-3/16" x (D) 7-3/8"
• Variable Low Pass Filter
• Bass Boost

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.



Small Size Big Power

The KAC-D5101 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.

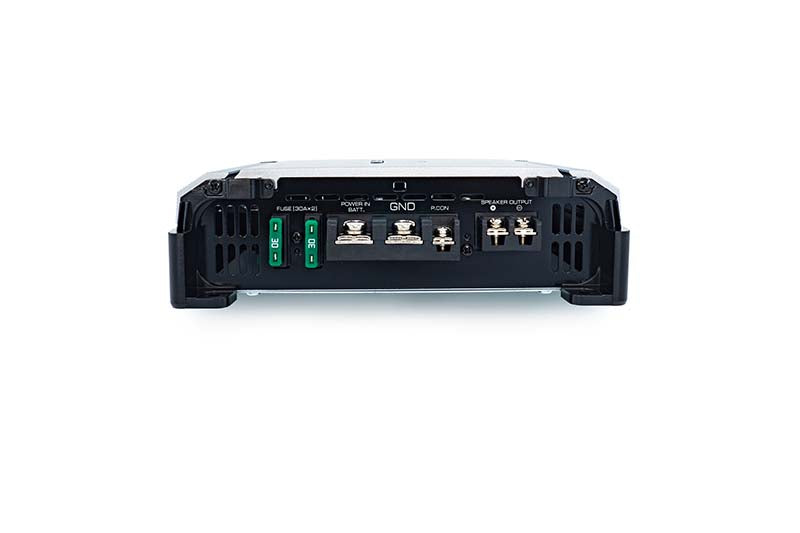

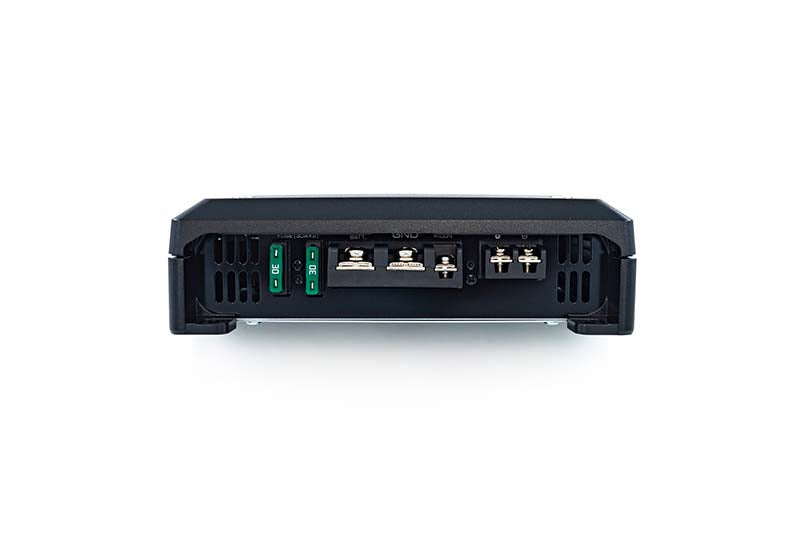

• ① Fuse (30A x 2)
• ② Battery Terminal (Power IN BATT.)
• ③ Ground Terminal (GND)
• ④ Power Control Terminal (P.CON)
• ⑤ Speaker Output Terminals

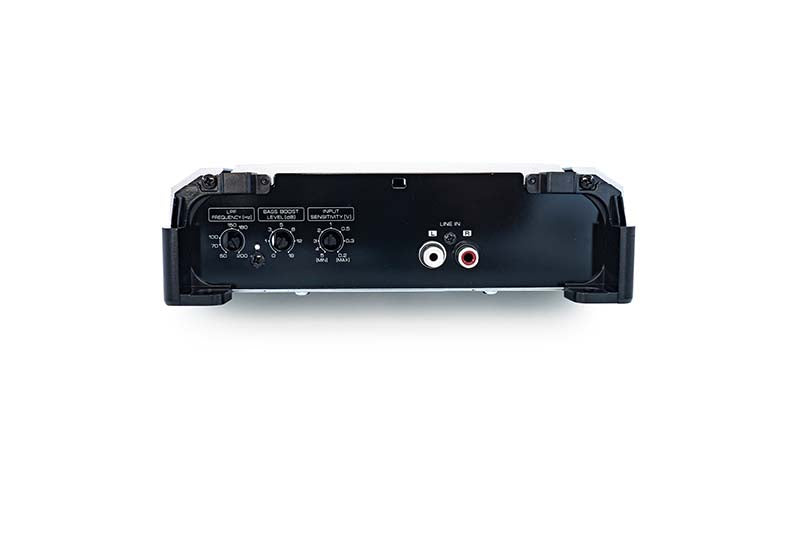

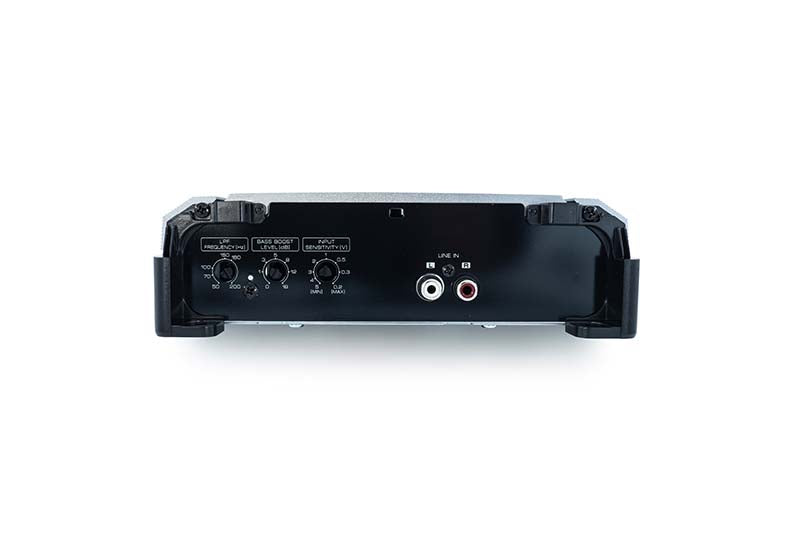

• ⑥ LPF Frequency Control
• ⑦ Bass Boost Level Control
• ⑧ Input Sensitivity Control
• ⑨ Line In Terminal
