Kenwood KAC-D8105 Class D 5-Chanell Car Audio Power Amplifier 1600 Watts Max Power

Kenwood KAC-D8105 Class D 5-Chanell Car Audio Power Amplifier 1600 Watts Max Power

$419.00
$419.00
Sale Sold out

KAC-D8105  Class D 5-Channel Power Amplifier

  • Max Power 1600W
  • RMS 50W x4 + 300W (4Ω)
  • RMS 75W x4 + 500W (2Ω)
  • Size (inch) (W) 9" x (H) 2-3/16" x (D) 7-3/8"
  • Variable High & Low Pass Filter
  • Bass Boost



D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.

Expanded Frequency Response

Supporting Hi-Res Audio, KAC-D8015 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

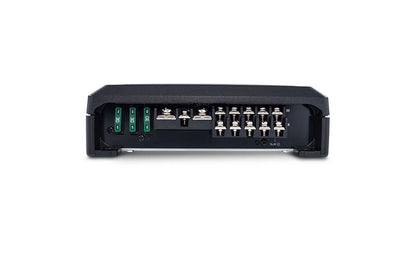

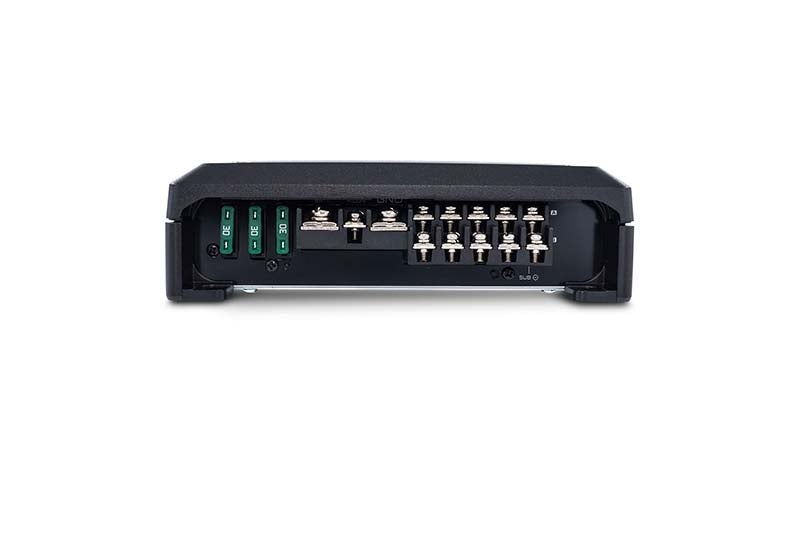

  • ① Fuse (30A x 3)
  • ② Battery Terminal (Power IN BATT.)
  • ③ Power Control Terminal (P.CON)
  • ④ Ground Terminal (GND)
  • ⑤ Speaker Output Terminals (A.ch / B.ch)
  • ⑥ Speaker Output Terminals (SUB)

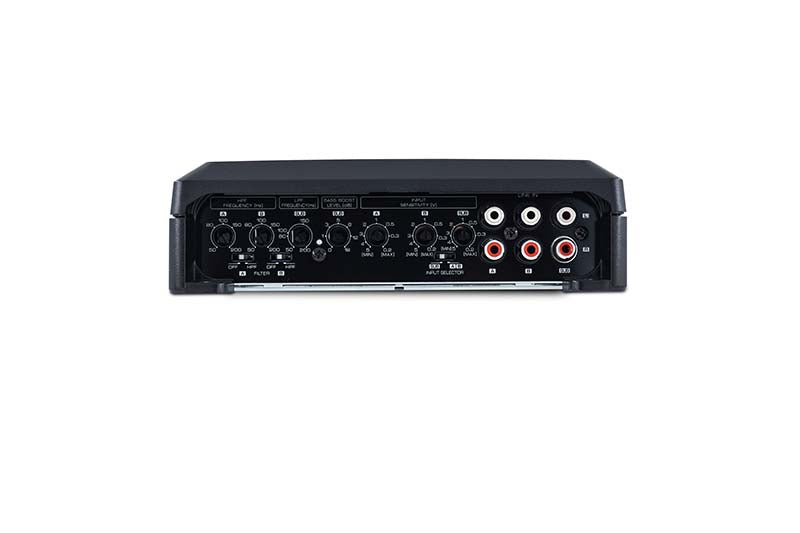

  • ⑦ HPF Frequency Control (A.ch / B.ch)
  • ⑧ Filter Switch (A.ch / B.ch)
  • ⑨ LPF Frequency Control (A.ch / B.ch)
  • ⑩ Bass Boost Level Control (SUB)
  • ⑪ Input Sensitivity Control (A.ch / B.ch / SUB)
  • ⑫ Input Selector Switch
  • ⑬ Line In Terminal

General Features

KAC-D8105 KAC-D5101 KAC-D3104
MAX POWER 1600W 1000W 600W
RMS POWER OUTPUT (4Ω) 50W x 4 + 300W 300W 50W x 4
RMS POWER OUTPUT (2Ω) 75W x 4 + 500W 500W 75W x 4
RMS POWER OUTPUT Bridged 150W x 2 (Bridged) + 300W - 150W x 2 (Bridged)
Features Speaker Level Input Speaker Level Input Speaker Level Input
Signal Sensing Turn-On Signal Sensing Turn-On Signal Sensing Turn-On
Variable High Pass Filter Variable Low Pass Filter Variable High Pass Filter
Variable Low Pass Filter Bass Boost Variable Low Pass Filter
Bass Boost - Bass Boost
Dimensions (W)9” x (H)2-3/16” x (D)7-3/8”  (W)6-11/16” x (H)2-3/16” x (D)7-3/8”  (W)6-11/16” x (H)2-3/16” x (D)7-3/8”
Weight 4.5 lbs (2.0kg) 2.9 lbs ( 1.3kg) 2.9 lbs ( 1.3kg)
