Kenwood

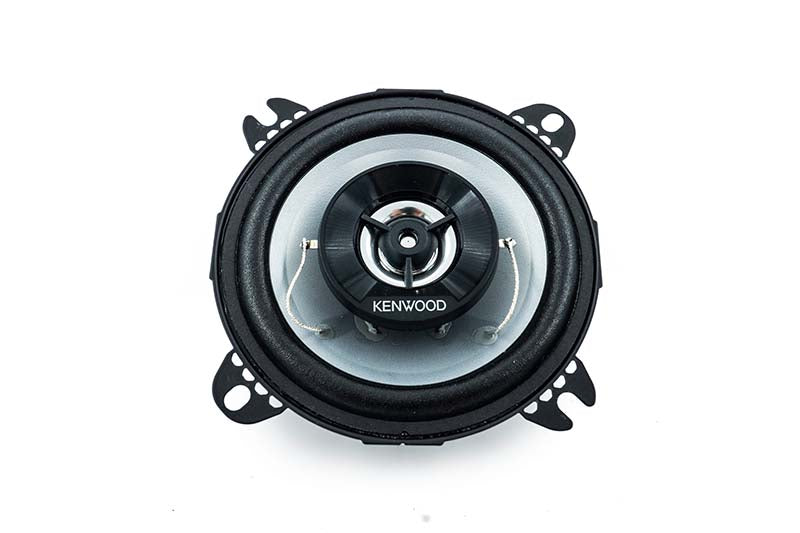

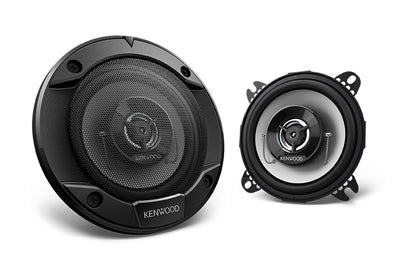

Kenwood KFC-1066S 4" Coaxial Speakers for Car Audio 220W Peak - Pair
Kenwood KFC-1066S 4" Coaxial Speakers for Car Audio 220W Peak - Pair
Regular price
$49.00
Regular price
Sale price
$49.00
Unit price
per
Couldn't load pickup availability
KENWOOD AUTHORIZED RETAILER
KFC-1066S 4" Coaxial Speakers - PAIR
- Frequency Response 50Hz - 22kHz
- Mounting Depth 1-11/16”
-
Sound Field Enhancer
-
To improve sound quality
-
Enlarged magnet circuit
-
To realize clear sound
-
Only 5/16"of mounting height
-
To fit for wider car selection
FEATURES LIST
-
Peak Input Power
-
- 220W
-
Rated Input Power
-
- 21W Impedance 4 ohms
-
Woofer Features
-
- 4inch PP Cone
-
Tweeter Features
-
- 1inch Balanced Dome Tweeter
-
Specifications
-
- Sensitivity: 88dB / W / m
- Frequency Response: 50Hz - 22kHz
- Cutout Diameter: 3-5/8inch
- Mounting Depth: 1-11/16inch
- Gross Weight: 2.0lbs
- Weight of Magnet (Woofer): 0.35lbs
SPECS
| Electrical | ||
|---|---|---|
| Impedance (Ω) | 4Ω | |
| Peak Input Power (W) | 220W | |
| RMS Input Power (W) | 21W | |
| Sensitivity (dB at 1m) | 88dB | |
| Frequency Response (Hz) | 50-22000Hz | |
| Woofer | ||
| Diaphragm | PP | Silver |
| Size | 100mm | 4in |
| Surround | Cloth | |
| Magnet | Ferrite | φ70xt10 |
| Tweeter | ||
| Diaphragm | Balanced Dome | Silver |
| Size | 25mm | 1 in. |
| Magnet | Neodymium | |
| Dimension | ||
| Width (w_Gr) | 134.0 mm | 5-1/4 in. |
| Width (w/o_Gr) | 104.0 mm | 4-1/8 in. |
| Height (w_Gr) | 134.0 mm | 5-1/4 in. |
| Height (w/o_Gr) | 104.0 mm | 4-1/8 in. |
| Cutout Diameter | Φ92.6 | Φ3-5/8 |
| Tweeter Height | 8 mm | 5/16 in. |
| Mounting Depth | 43 mm | 1-11/16 in. |
| Weight | ||
| with Grille (pc.) | 437 g | 1.0 lbs. |
| without Grille (pc.) | 391 g | 0.9 lbs. |
| Weight of Woofer Magnet | 160 g | 5.6 oz. |
| Gross Weight | 930 g | 2.0 lbs. |

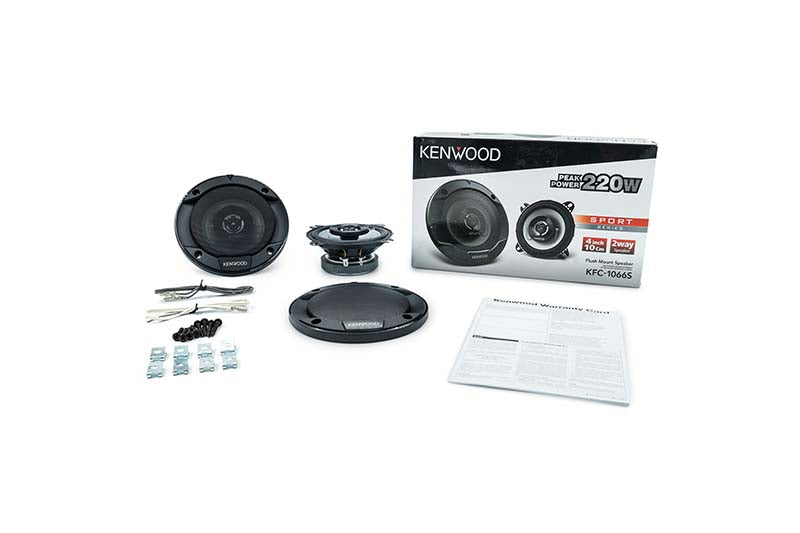

| Accessory | ||
| Grille Assy | 2pcs | |
| Screw sets | Tapping Screw | φ4x25*8pcs |
| Speed Nut | 8pcs | |
| Speaker Cord | 0.3m*2pcs | |
| Warranty Card | 1pcs | |
