Kenwood

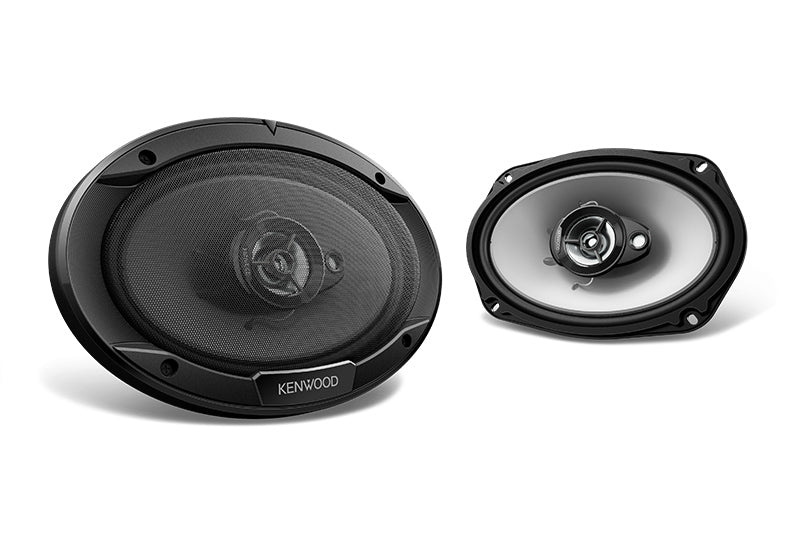

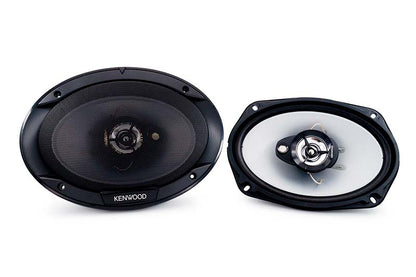

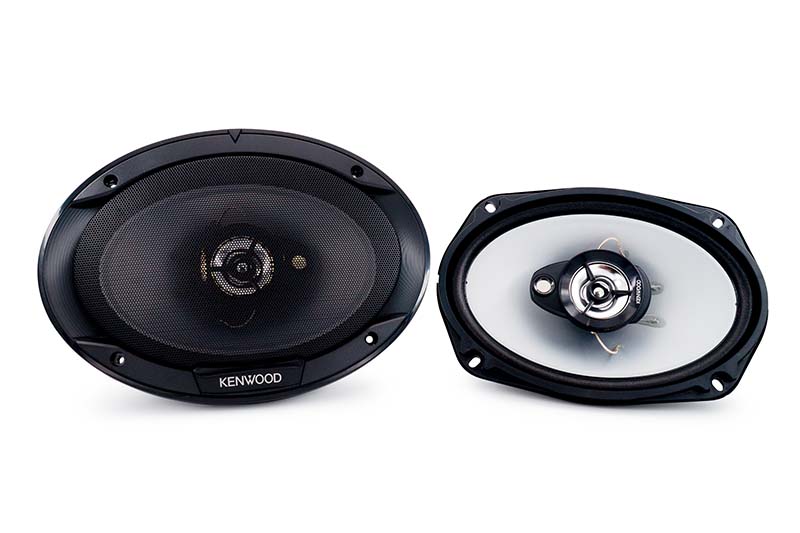

Kenwood KFC-6966S Pair 6 x 9" Coaxila Car Speakers 400 Watts Peak Power

Kenwood KFC-6966S Pair 6 x 9" Coaxila Car Speakers 400 Watts Peak Power

$69.00
$69.00
Sale Sold out

KENWOOD AUTHORIZED RETAILER

KFC-6966S   6 x 9" Coaxial Speakers


  • Frequency Response 35Hz - 20kHz
  • Mounting Depth 3”

Sound Field Enhancer

To improve sound quality

Enlarged magnet circuit

To realize clear sound

Only 7/16"of mounting height

To fit for wider car selection

FEATURES LIST

Peak Input Power

  • 400W

Rated Input Power

  • 45W Impedance 4 ohms

Woofer Features

  • 6 x 9inch PP Cone

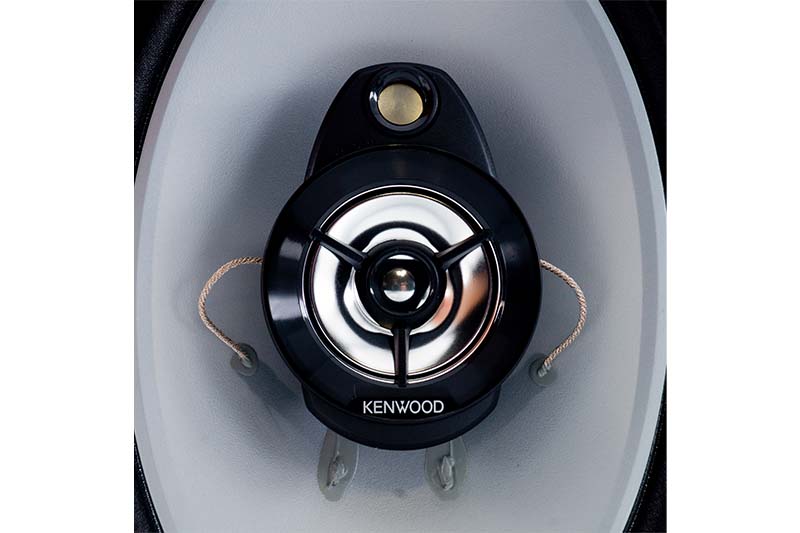

Tweeter Features

  • 2inch PEI Balanced Dome Tweeter

Super Tweeter Features

  • 1/2inch Ceramic Tweeter

Specifications

  • Sensitivity: 91dB / W / m
  • Frequency Response: 35Hz - 20kHz
  • Cutout Diameter: 6-1/16 , 8-3/4inch
  • Mounting Depth: 3inch
  • Gross Weight: 4.1lbs
  • Weight of Magnet (Woofer): 0.49lbs



Specs

Electrical
Impedance (Ω) 4Ω
Peak Input Power (W) 400W
RMS Input Power (W) 45W
Sensitivity (dB at 1m) 91dB
Frequency Response (Hz) 35-20000Hz
Woofer
Diaphragm PP Silver
Size 153x299mm 6x9in
Surround Cloth
Magnet Ferrite φ80xt10
Tweeter
Diaphragm Cone Silver
Size 50mm 2 in.
Magnet Material Ferrite
Super Tweeter
Diaphragm Cermic Silver
Size 12mm 1/2 inch
Dimension
Width (w_Gr) 268 mm 10-9/16 in.
Width (w/o_Gr) 235 mm 9-1/4 in.
Height (w_Gr) 193 mm 7-5/8 in.
Height (w/o_Gr) 164 mm 6-7/16 in.
Cutout Diameter 154ｘ222 mm 6-1/16ｘ8-3/4 in.
Tweeter Height 11.5 mm 7/16 in.
Mounting Depth 76.8 mm 3 in.
Weight
witho Grille (pc.) 908 g 2.0 lbs.
without Grille (pc.) 796 g 1.8 lbs.
Weight of Woofer Magnet 220 g 7.8 oz.
Gross Weight 1870 g 4.1 lbs.

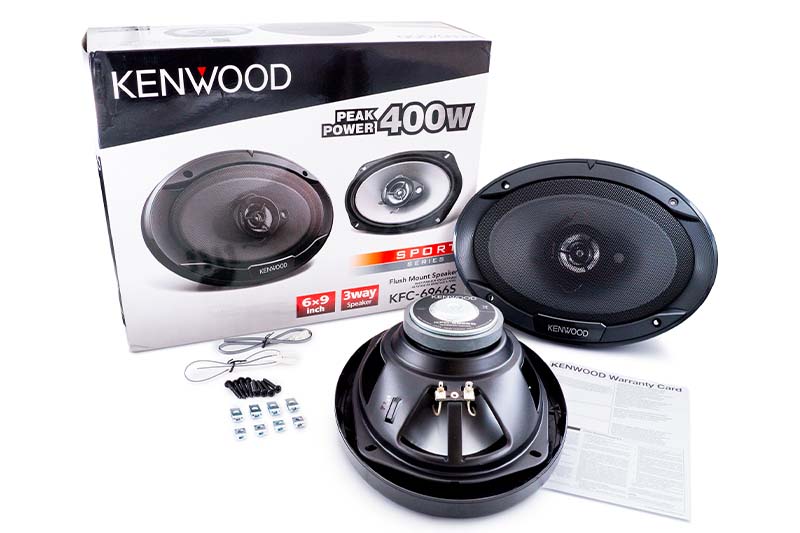

Accessory
Grille Assy 2pcs
Screw sets Tapping Screw φ4x30*8pcs
Speed Nut 8pcs
Speaker Cord 0.3m*2pcs
Warranty Card 1pcs



View full details
