FULL SPECIFICATIONS
| Spec | Detail |
|---|---|

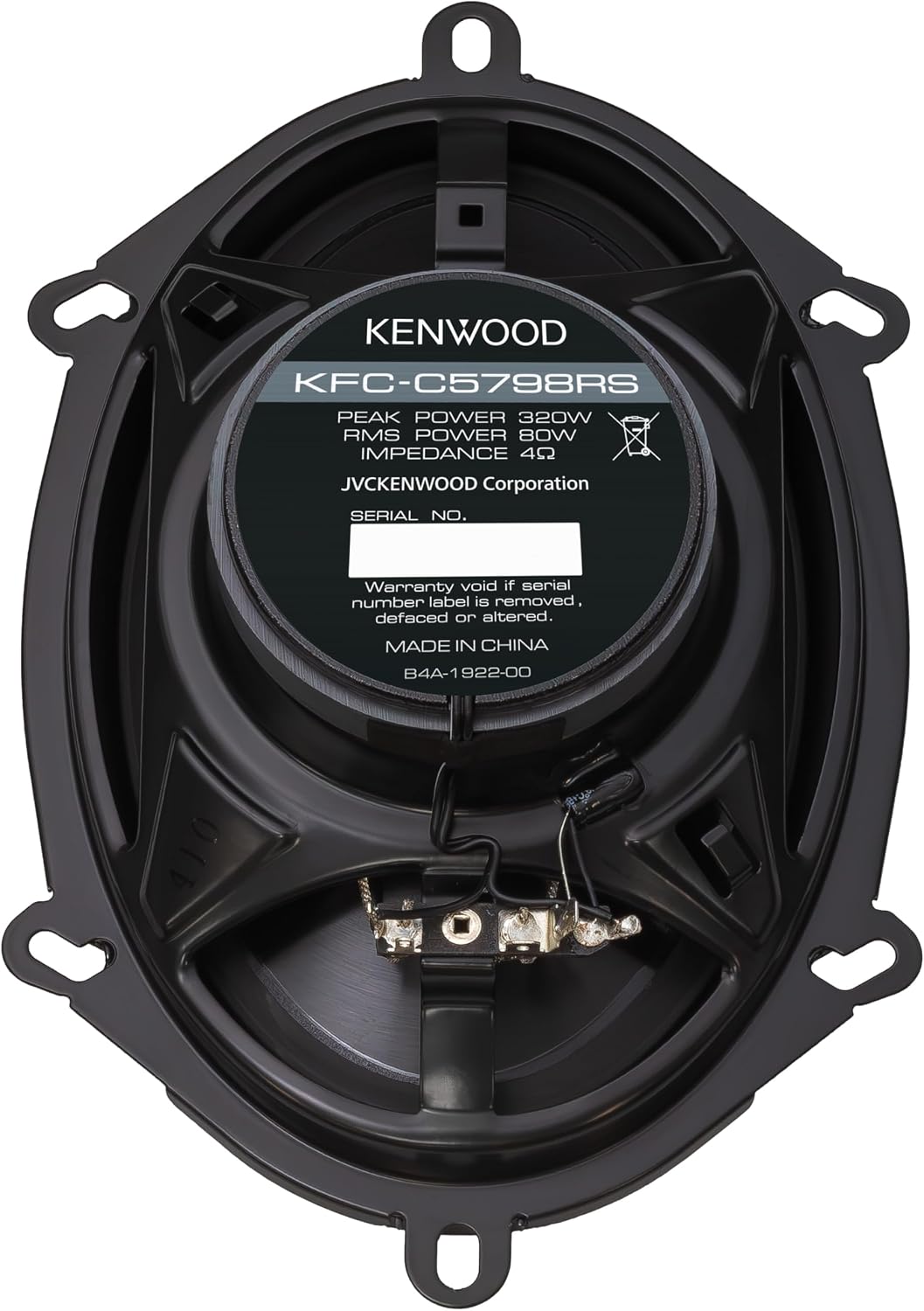

| Brand / Model | Kenwood / KFC-C5798RS |
| Series | RS Series |
| Speaker Type | 2-Way Coaxial (Custom Fit) |
| Size | 5" x 7" Oval |
| Peak Power | 320W (per speaker) |
| RMS Power | 80W (per speaker) |
| Impedance | 4 Ohms |
| Sensitivity | 88 dB (1W/1m) |
| Frequency Response | 69 Hz – 20 kHz |
| Woofer Cone | Polypropylene with Diamond Array Pattern |
| Tweeter | 1-3/16" Balanced Dome Tweeter |

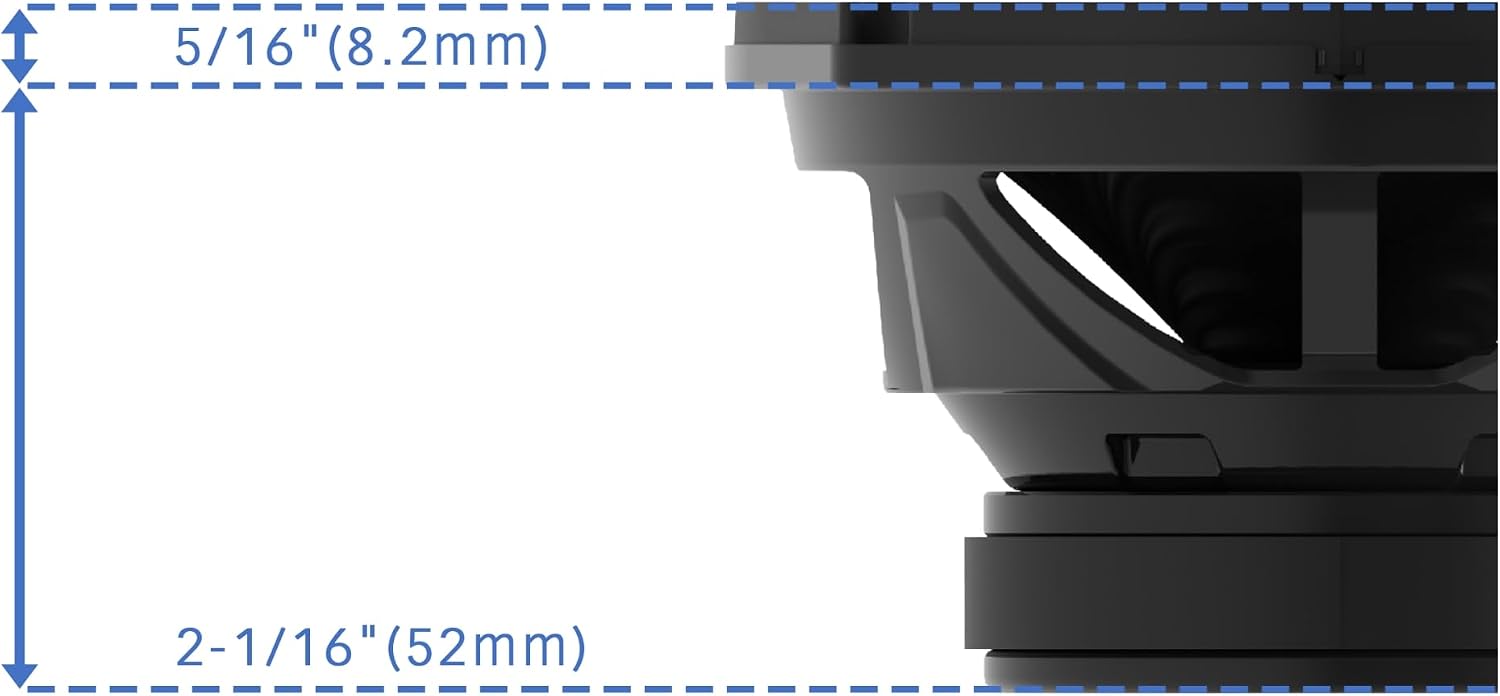

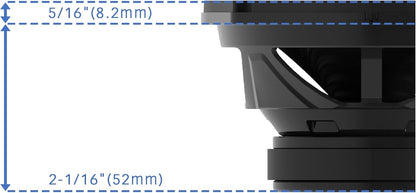

| Tweeter Height | 5/16" (low-profile) |
| Mounting Depth | 2-1/16" |
| Cutout Diameter | 4-7/8" x 7-3/16" |

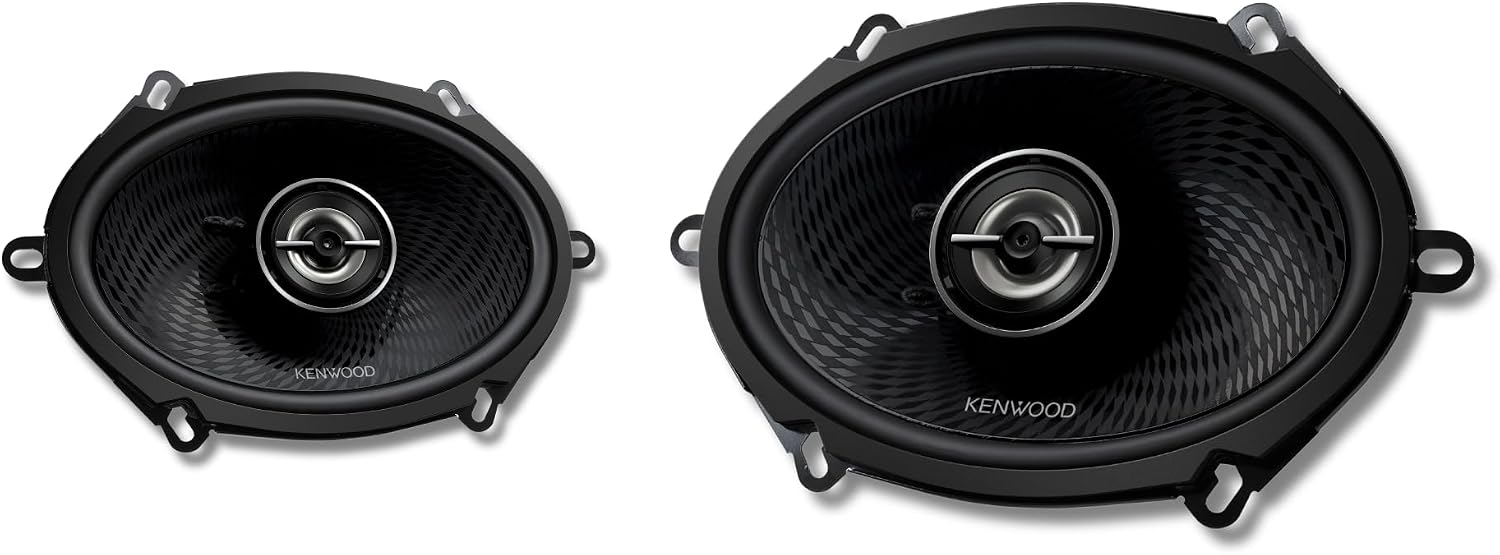

| Sold As | Pair (2 speakers) |
| UPC | 0019048241788 |
KEY FEATURES

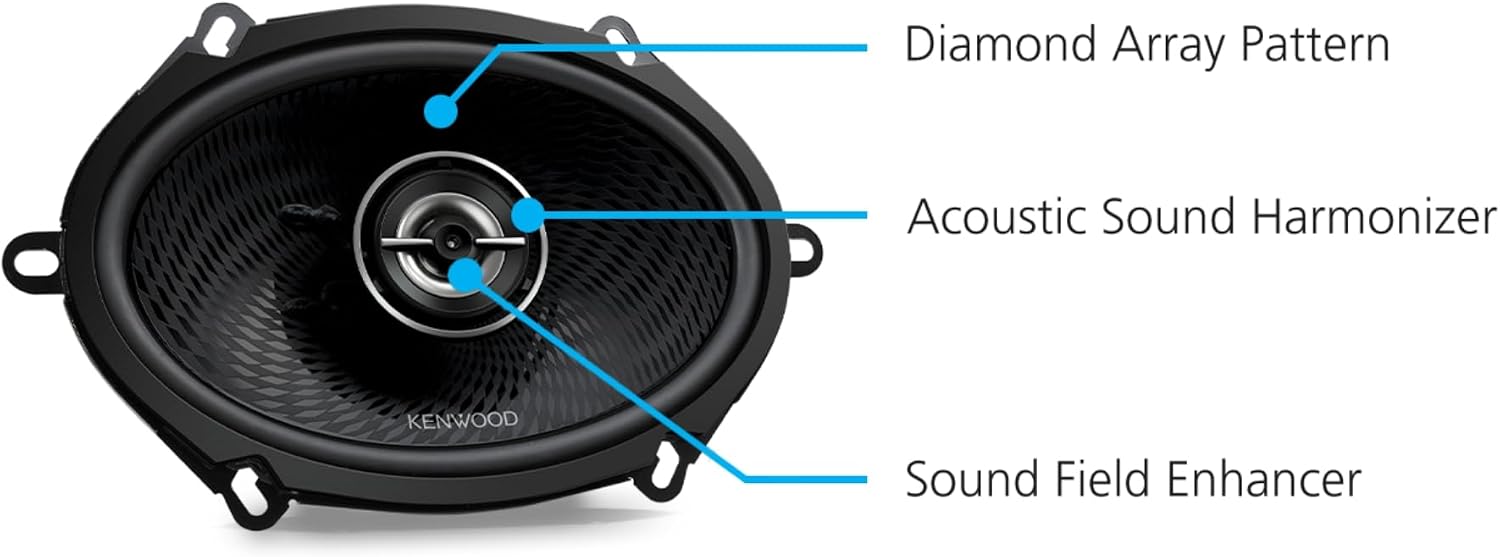

- Diamond Array Pattern Woofer Cone – A textured polypropylene cone design that increases rigidity, reduces distortion, and sharpens sound detail.
- Acoustic Sound Harmonizer – Controls woofer sound waves and filters frequencies through holes in the tweeter panel for a smoother, more natural sound.
- Sound Field Enhancer – The tweeter's unique shape projects sound forward and widens the sound field above 5kHz for a more immersive listening experience.
- Low-Profile Tweeter Design – Tweeter height is minimized so the speaker fits into most OEM/factory mounting locations without modification.
- Black-Painted Yoke and Plate – Improves heat dissipation in the magnetic circuit, lowering voice coil temperature and boosting long-term durability.
- Stress Leveling Points – Structural reinforcement points that increase durability and produce a smoother, more consistent sound response.
- Reduced Chassis Depth – Cuts down speaker weight and simplifies installation in tight factory spaces.
- Shallow Mount, No Cutting Required – Drops into most factory dash, door, and rear-deck locations for a true plug-and-play upgrade.
DESCRIPTION

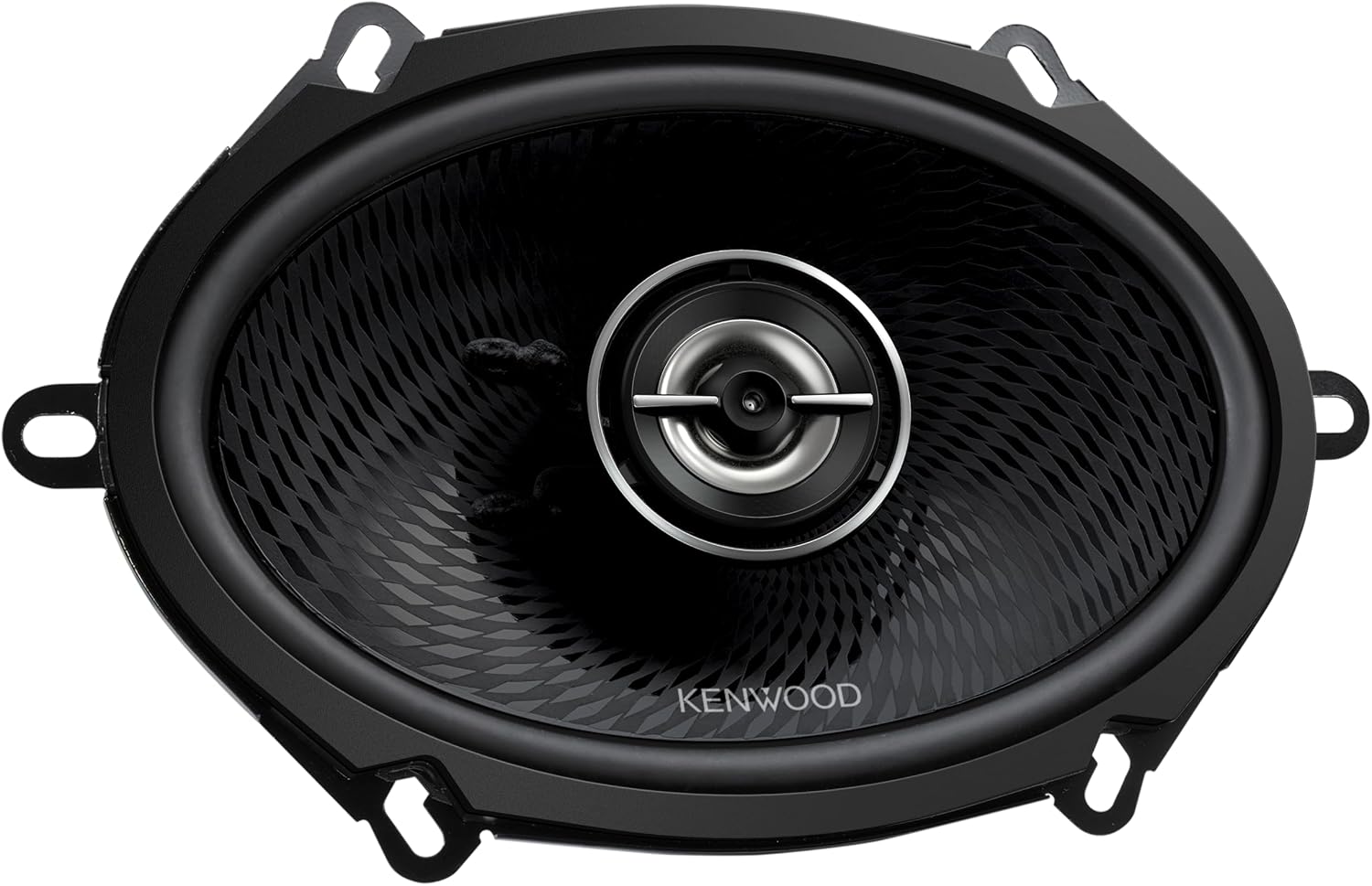

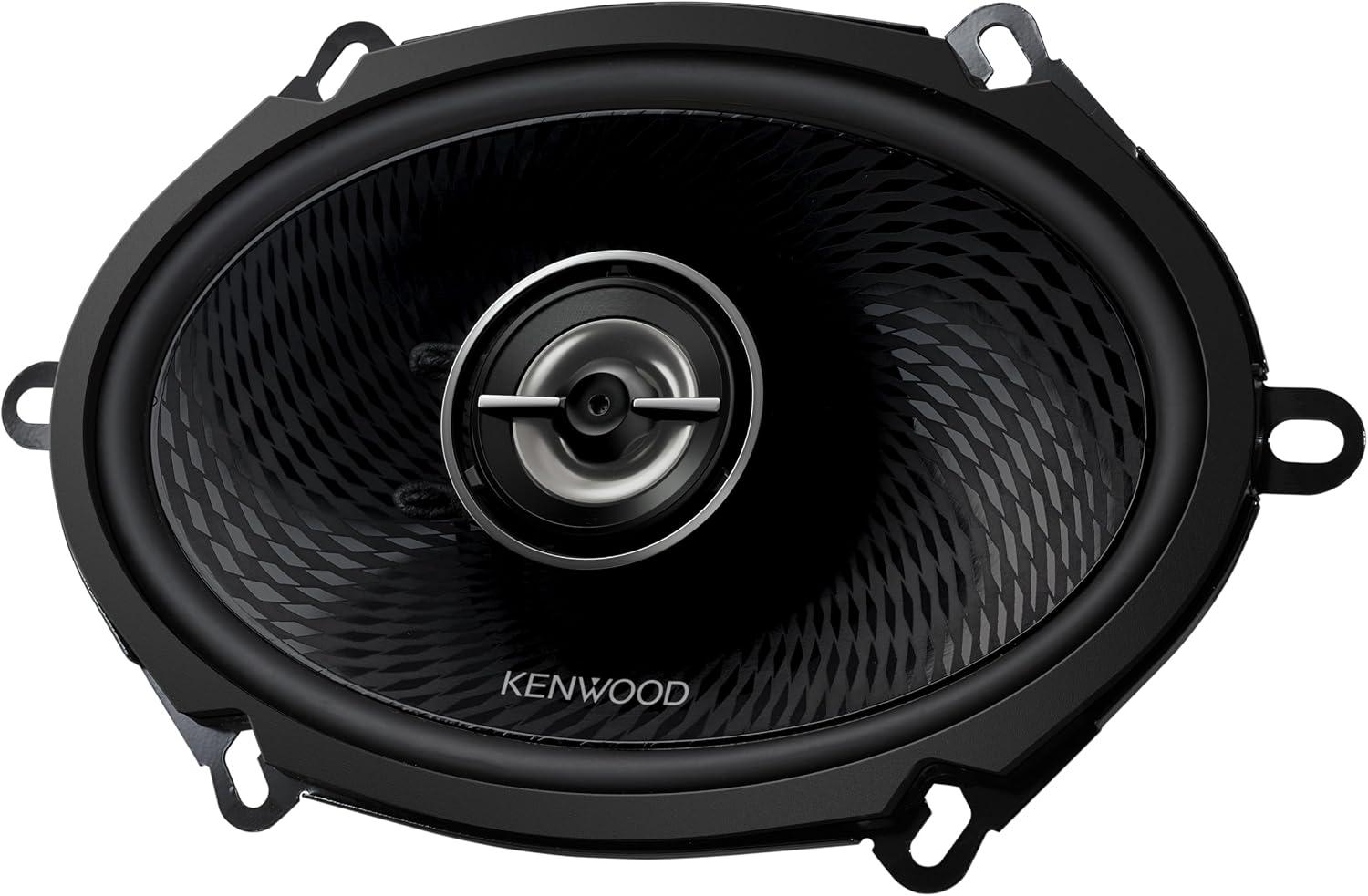

Upgrade your factory car audio with the Kenwood KFC-C5798RS RS Series 5"x7" 2-way coaxial speakers. Engineered as a direct custom-fit replacement for OEM speakers, this pair delivers 320 watts of peak power and 80 watts RMS per speaker, producing clear, punchy sound without needing an aftermarket amp — though it will run cleanly off one if you have it.
The Diamond Array polypropylene woofer cone fights distortion and adds crisp low-end detail, while the 1-3/16" balanced dome tweeter — powered by Kenwood's Sound Field Enhancer technology — casts a wide, immersive soundstage throughout the cabin. The Acoustic Sound Harmonizer smooths transitions between frequencies for natural, well-balanced audio across the board.

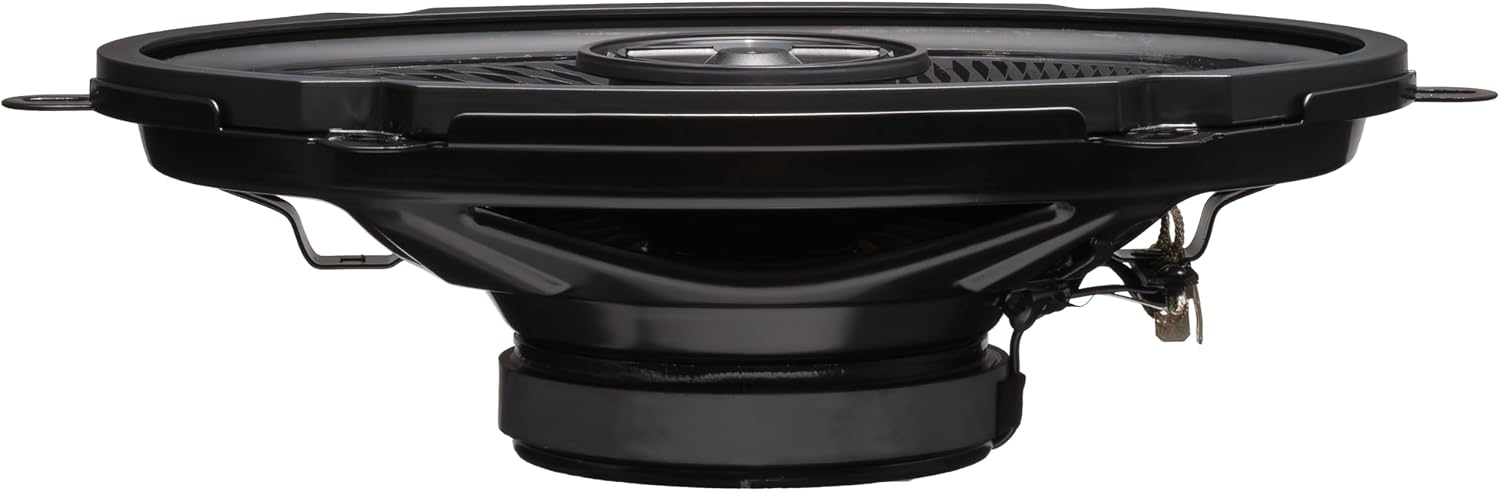

With a shallow 2-1/16" mounting depth and a low-profile tweeter, the KFC-C5798RS drops into most factory 5x7" (and many 6x8") locations with no cutting or modification required, making installation fast and hassle-free.
USES / APPLICATIONS
- Factory speaker replacement in cars, trucks, and SUVs with 5x7" or 6x8" factory speaker openings (dash, front door, or rear deck locations)
- Daily-driver audio upgrade for drivers wanting clearer vocals, tighter bass, and reduced distortion over stock speakers
- Budget-friendly system upgrade for users running a factory head unit or a basic aftermarket stereo without external amplification
- Amplified systems — compatible with small aftermarket amps for users seeking added power and headroom
- DIY installations — ideal for owners who want a straightforward, no-modification speaker swap
