Kenwood STZ-RF200WD Motorsports Action Camera System Front & Rear Recording

Catch ALL of the ACTION

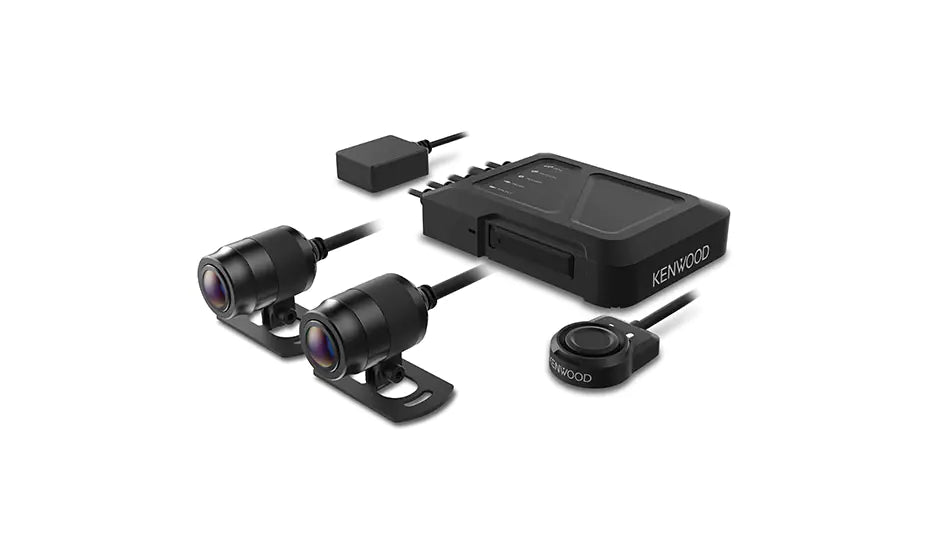

Introducing a motorsports-grade Dual Camera recording system with hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTV's, ATV's, watercraft & more.

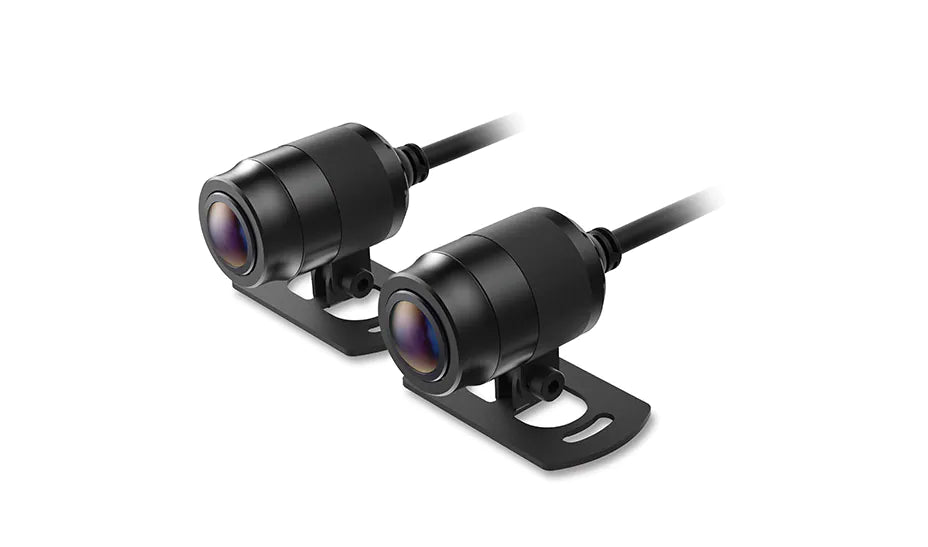

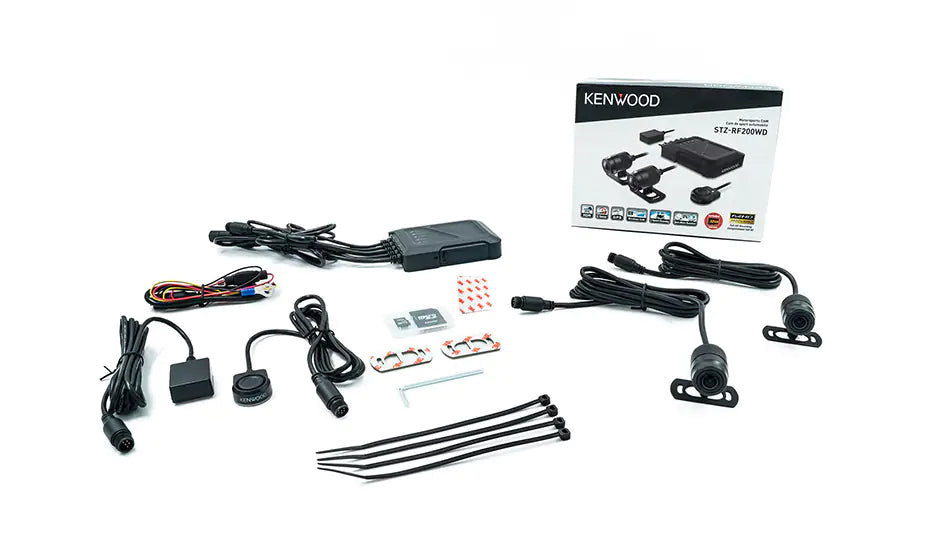

Includes 2 Cameras - Front and Rear

Motorsports Action Camera System, IPX67 Waterproof Cameras for Front & Rear Recording (Full HD),

2 Meter cable length for F&R Cameras,

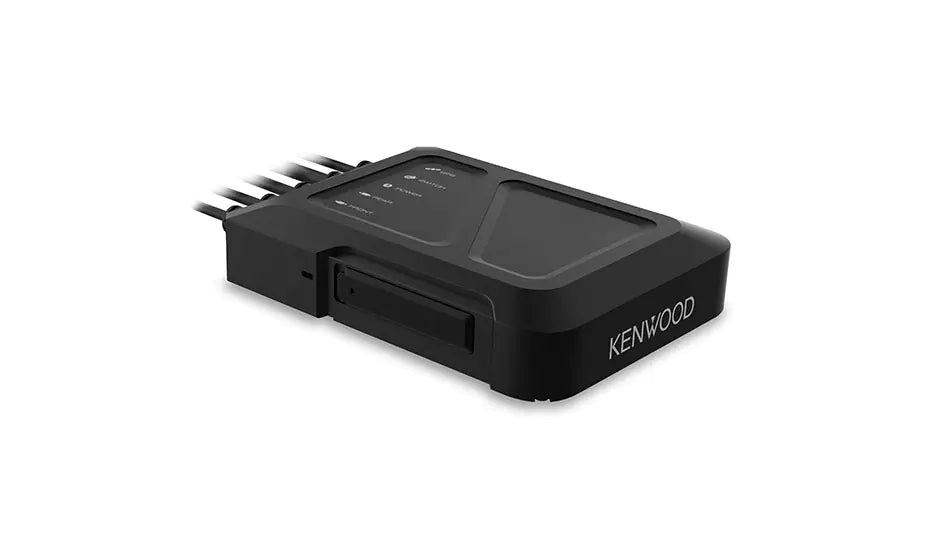

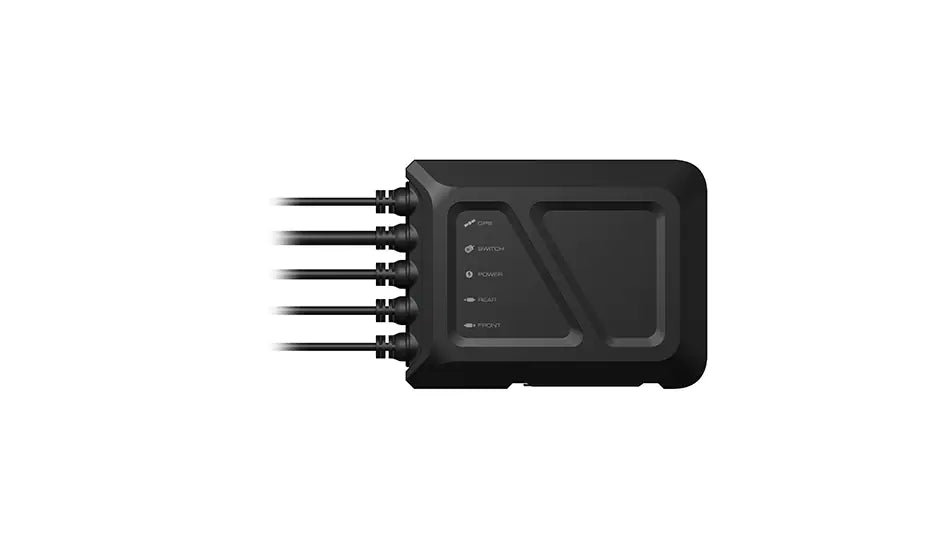

Compact hideaway Black Box with GPS,

WiFi connection for Phone App (IOS or Android),

Easy setup with Live Camera View, Impact detection,

Compact, Event/Operation Switch with Status LEDs,

Desktop Application for PC Viewing shows Video, Location,
Speed, G-Force.

Full HD Recording

HDR High Dynamic Range

STZ-RF200WD received the "Editor's Choice" award from Stereowise Plus

2 Megapixel HIGH DEFINITION Recording

Full HD 1920 x 1080

Captures clear video from both directions.

FRONT & REAR View Recording

The STZ-RF200WD includes 2 cameras: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.

EXTRA WIDE VIEW Camera Coverage

Both cameras cover a 195° (diagonal) extra wide range field of view.

HDR (High Dynamic Range) for Backlighting

Built-in HDR easily records clear images in dark or well lit environments without underexposing or overexposing the image, ensuring superior night vision recording.

EIS (Electronic Image Stabilization)

Bumpy roads and surfaces have met their match! Count on smooth and steady images with effective compensation for camera shakes with its Built-in image stabilization.

3-axis G-sensor & GPS

The STZ-RF200WD is equipped with a 3-axis G-Sensor designed to detect a collision and GPS that records speed, latitude, and longitude.

Waterproof & Dustproof

The cameras, GPS, and switch all carry an IP66/67, meaning that they can resist high-pressure, heavy sprays of water. They are also fully sealed against dust entry. The main unit carries an IP55 rating, meaning that it is protected against dust ingress and low pressure water jets.

MEMORY Included

A 32GB microSD card is included so that you can be ready to catch all of the action right out of the box. The system supports up to a 256GB microSD card (sold separately).

SUPER Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.

WIRELESS Link

Enables video playback, file transfer, and easy setup via the KENWOOD Motorsports CAM smartphone app (*Device Requirement OS: Android 7.0 or later, OS: iOS 11.0 or later).
Once files are transferred to device, you can easily share recorded videos.

Review the ACTION

KENWOOD Motorsports CAM Viewer is a desktop software for displaying video recorded with this system. Simply download the installer from https://www.kenwood.com/car/app/kenwood_motorsports_cam_viewer/eng/index.html, then install according to the on-screen instructions.
*PC Requirement
Microsoft Windows 10 (32-Bit / 64-Bit). Mac OS-X 10.14 or later.

---

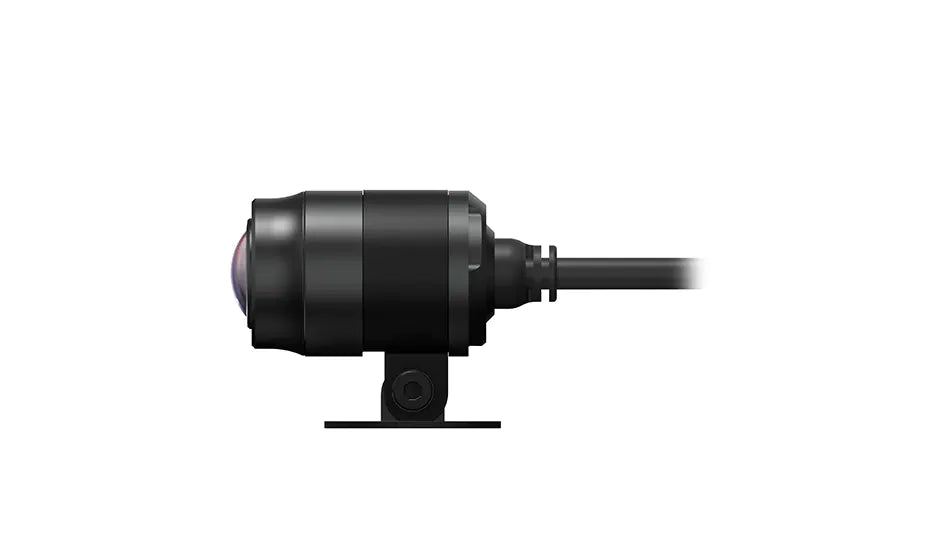

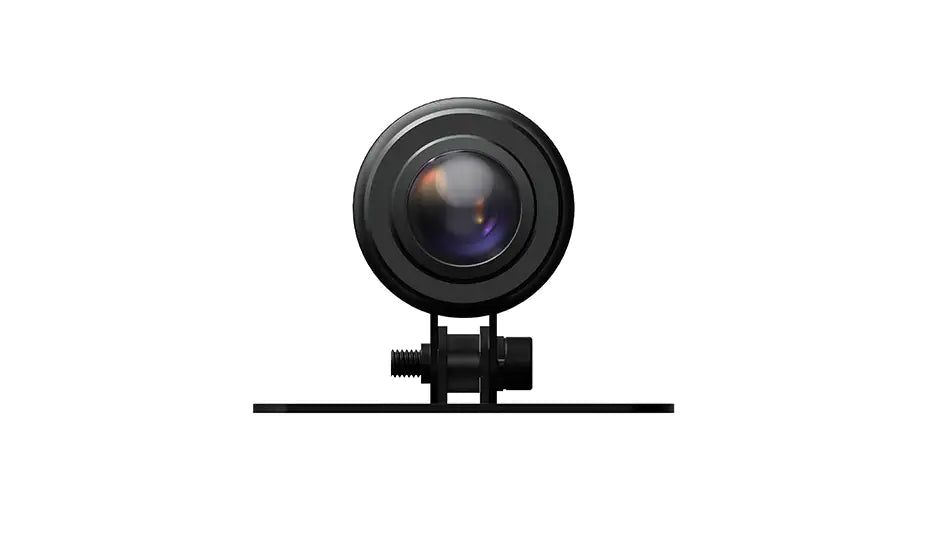

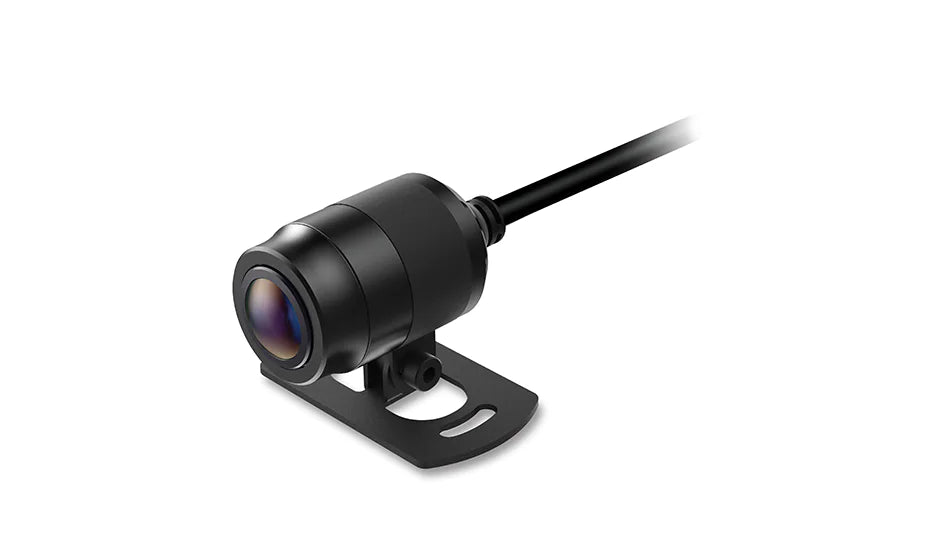

Compact Front & Rear Cameras

Small camera size provides for a stealthy look and easier installation in various locations.

---

YOU are in CONTROL

Multi-function control switch for simplified system control.

---

System Installation Example

Cable Length
(Total connected length from main unit)

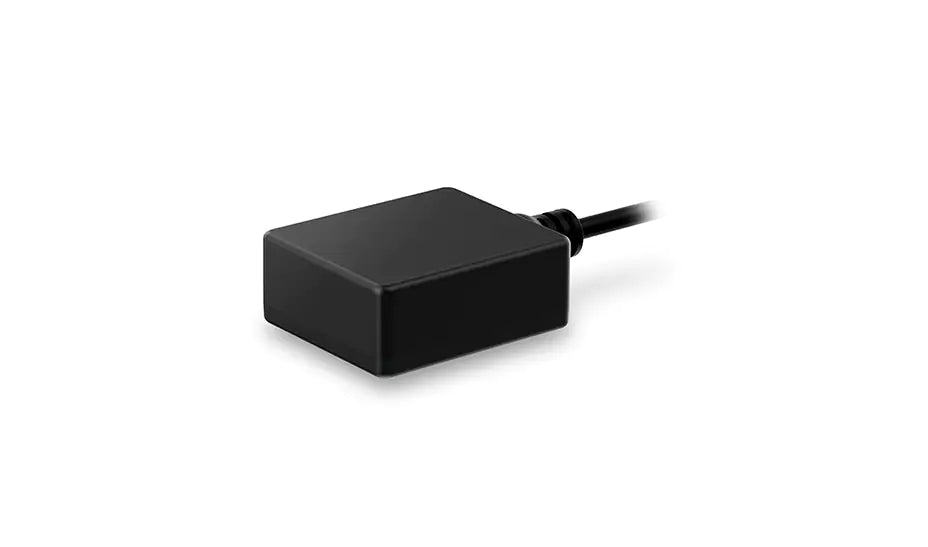

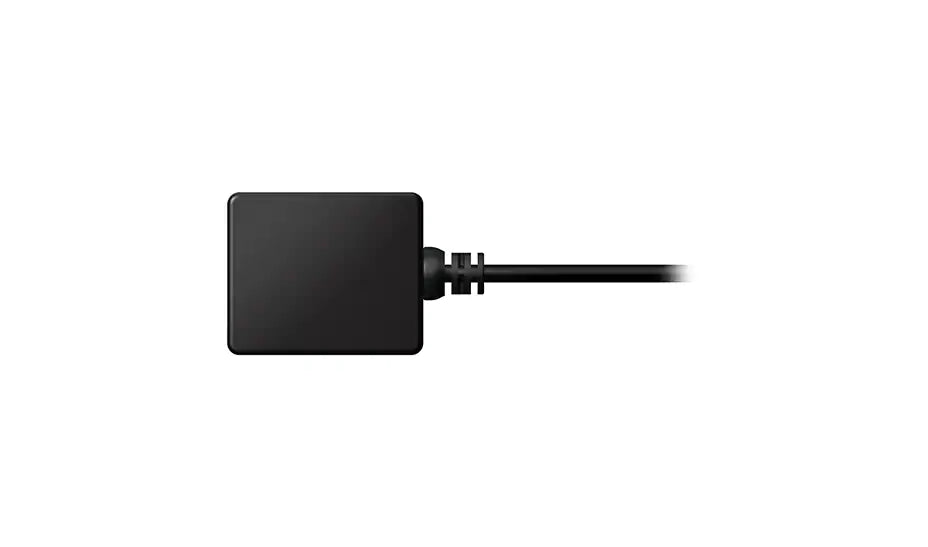

• GPS Antenna : 6.6ft / 2m
• Switch : 6.6ft / 2m
• Front Camera : 6.6ft / 2m
• Rear Camera : 6.6ft / 2m
• Power Cable : 3.3ft / 1m

Waterproofing/ Dustproofing	Main Unit	IP55
	Cameras	IP66/67
	GPS/GLONASS Antenna	IP66/67
	Control Switch	IP66/67
Front & Rear Camera Units	Image Sensors	2 Megapixels ( effective pixels : 1.86 megapixels)
	Lens Viewing Angle	195° Diagonal (effective angle: 181°)
	Frame Rate	27.5 fps
	F-number	2.2
Recording Resolution	1920 x 1080
Video Quality	Fine / Normal
Video File Format	MP4 ( Video format : H.264 audio format : AAC)
Recorded File Length	30 seconds / 1 minute / 3minutes (Recording time for one file)
Recording Mode	Continuous recording, event recording, manual recording
Data Recorded	Video file, time and date, speed, location information
Audio Recording	ON / OFF
HDR	Yes
G-sensor	Yes (5 impact sensitivity settings / OFF)
GPS	Yes
Electronic Image Stabilization	Yes
Positioning Satelites	GPS / GLONASS
Storage Media	microSDHC, microSDXC Class 10 UHS-I
	16GB to 256GB
Recorded video Playback Methods	KENWOOD Motorsports CAM App
	-iOS 11 or later
	-Android 7 or later
	KENWOOD Motorsports CAM Viewer
	- Apple Mac OS 10.14(Mojave) or later
	- Microsoft Windows 10
Power Supply	DC 12V
Power Consumption	0.48 A
Measurement ( W x D x H)	Main unit	79 × 104 × 22.5 mm 3-1/8 x 4-1/8 x 7/8 inches
	Camera /pc	23.5 (Φ) × 34.4 mm 15/16(Φ) x 13/8 inches
	GPS/GLONASS Antenna	27.4 × 33 × 13 mm 1-1/8 x 1-5/16 x 1/2 inches
	Control Switch	25.8 × 36.9 × 9.5 mm 1 x 1-7/16 x 3/8 inches
Weight (Excluding Cable)	Main unit	105 g (0.2315 lb)
	Camera / pc	42 g (0.0926 lb)
	GPS/GLONASS Antenna	14 g (0.0309 lb)
	Control Switch	9 g (0.0918 lb)
Operating Temprature	-20 °C to +60 °C (-4 °F to 140 °F)
Warrantly	1year
