MB Quart

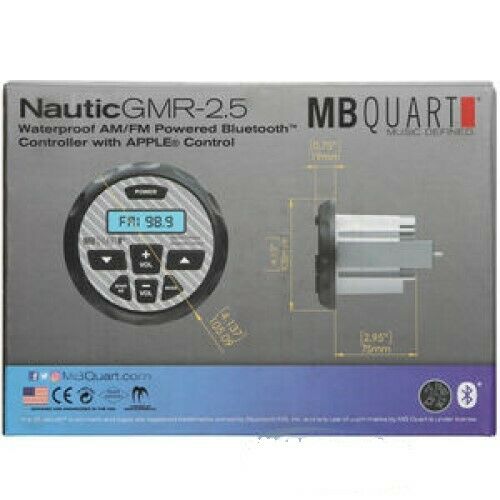

MB Quart GMR-2.5 160W Powered Bluetooth Gauge Mount Radio with Carbon Fiber Look
MB Quart GMR-2.5 160W Powered Bluetooth Gauge Mount Radio with Carbon Fiber Look
MB Quart GMR-2.5 160W Powered Bluetooth Gauge Mount Radio with Carbon Fiber Look
Description
MB Quart GMR-2.5, Bluetooth AM/FM gauge mount
radio features Apple® control which brings more
control between your Apple devices. Internal 4 channel amplifier delivers 160
watts, including aux input and pre-amp outputs.
MB
Quart has been Defining Music for years. Our engineering and design teams now
push the envelope on audio designed for Marine and Powersports applications
even further. At MB Quart, we have pushed our NAUTIC line, typically thought of
as marine products, into a full blown powersports line up. Now, we can think of
NAUTIC from MB Quart as the best there is for SAND & SEA.
MB Quart offers several solutions to put music
into an audio system including the GMR line; the most technically advanced
AM/FM source unit ever conceived by the MB Quart engineering team. MB Quart
Nautic GMR Marine & Powersports source units are the perfect solutions for
any vehicle that will be exposed to the elements. MB Quart Nautic source units
have been extensively tested to be waterproof, dust proof and UV stable.
Features:
·
MAINE GRADE PROTECTION
Meets or excceds IPX67 requirments for water and dust proofing
·
LIFE SHIELD
This product has been designed and tested against the elements. Waterproof,
dustproof, snowproof or shockproof. Built to handle the outdoors
·
APPLE® CONTROL
Quick control and access of iTunes collection with iPhone, iPod and iPad
·
SOURCE TYPE
AM/FM/Bluetooth® Enabled Gauge
Mount Radio allows all access to radio stations and content from Bluetooth
enabled devices
·
INPUT TYPES
Bluetooth, RCA, USB nearly nothing the device can not play
·
CONTROL BUTTONS
Large & Waterproof Play/Pause, Tracks Forward/Back, Volume Up/Down and
Power On/Off are all protected from the elements with the large waterproof
button. Their size and space also makes them easy to operate with riding gloves
on
·
BLUETOOTH® CONNECT
Bluetooth® Connect allows
your phone or other Bluetooth enabled device to be quickly paired to the
controller without a complicated pairing process
·
SECURE SIMPLE PAIRING™
Quick and secure wireless connection between your Bluetooth enabled device.
This reliable connection is impervious to outside interference, providing a
lock-tight connection to your audio system
·
QUICK PAIR™
No more frustration with trying to pair. When the unit powers up, it
immediately connects to the last device connected. For a first time connection,
you only have to select "MB Quart" from your Bluetooth menu and you
are connected, QUICKLY
·
BUILT-IN POWER
Four channels with 40 watts of output. These channels remain active when
running external amplifiers (RCA Output) to run additional speakers in the
cabin
·
CONTROL METHOD
Large waterproof rubber buttons
·
AM/FM TUNER PRESETS
AM: 12 station | FM: 18 station | AM1, AM2, FM1, FM2, FM3 each memorize 6
stations each
·
FREQUENCY RANGE
FM: 87.5 - 108 | AM: 530 - 1710
·
USB / APPLE® /
CHARGING PORT
Rear access cable USB / Apple® Charging Port
·
BLUETOOTH
Bluetooth version 2.0
·
MAIN CONNECTOR TYPE
MOLEX connector for simple installation and removal of unit when needed
Line output, 2 volts
Specs:
·
RMS POWER OUTPUT
4 x 20 Watts
·
PEAK POWER OUTPUT
4 x 40 Watts
·
MAXIMUM THD+N AT 4 OHMS
0.00013
·
EFFECIENCY AT FULL POWER 4 OHM
(1KHZ)
0.618
·
IDLE CURRENT
0.3A
·
MAXIMUM UNDISTORTED PREAMP VOLTAGE
(WITH 20K OHM LOAD)
2.6 Volts
·
SIGNAL TO NOISE (CTA-2006B)
Bluetooth: -78.1 dBa | Aux: -86.7 dBa
·
SIGNAL TO NOISE RATIO OF LINE LEVEL
OUTPUTS (AT MAX VOLUME)
Bluetooth: -78.2 dBa | Aux: -87.1 dBa
·
PREAMP FREQUENCY RESPONSE (+/-
3.0DB)
Bluetooth: 20Hz-20KHz | Aux: 20Hz-20KHz
·
AMPLIFIER FREQUENCY RESPONSE (+/-
3.0DB)
Bluetooth: 20Hz-20KHz | Aux: 20Hz-20KHz
·
STEREO SEPARATION (AUX INPUT)
-61.3dB @ 5kHz
·
FM MONO USABLE SENSITIVITY
13.2dBf / 2.4μV
·
AM MONO USABLE SENSITIVITY
14 - 16μV
·
MINIMUM IMPEDENCE
4 Ohms
·
PRE-AMP OUTPUTS
1 Pair RCA
·
AUDIO INPUTS
Aux Input through RCA
·
DISPLAY TYPE
LCD
·
DISPLAY BACKLIT
Yes
·
LCD FONT SIZE
Medium
·
DIMENSIONS MOUNTING HOLE
3.12 inches | 7.93 cm
·
DIMENSIONS MOUNTING DEPTH
2.87 inches | 7.30 cm
·
DIMENSIONS MOUNTING BEZEL WIDTH X
HEIGHT X DEPTH
4.15 inches | 10.5 cm
·
TUNER SECTION FM STEREO FREQUENCY
RANGE
87.5MHz-108MHz
·
TUNER SECTION SIGNAL TO NOISE
RATIO
>55dB
·
BLUETOOTH RANGE
32 Feet (10 Meters)
