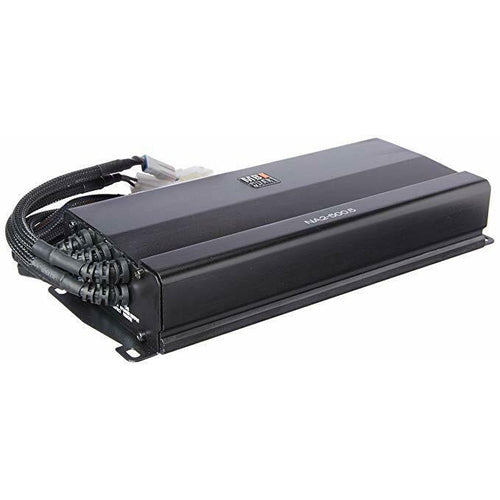

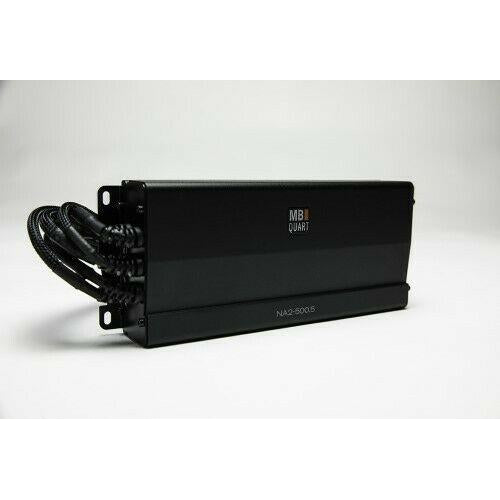

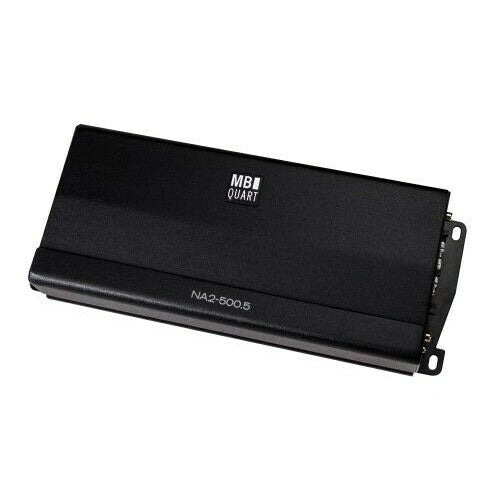

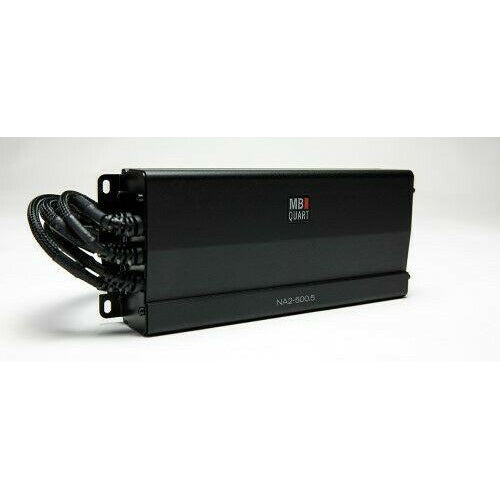

MB Quart NA2-500.5 Marine Grade compact 500 watt mono Powersports amp for Sub.

MB Quart NA2-500.5 Marine Grade compact 500 watt mono Powersports amplifier for Subwoofer

Description
MB Quart compact 400 watt mono Powersports amplifier for a subwoofer with on-board equalization and simple installation with quick release connectors. Bass remote included.

Features:

· MARINE GRADE PROTECTION: YES
Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.

· PRE-AMP CIRCUITRY: Q-Stasis Pre Amplifier Stage
The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality

· INPUTS:
2 Pair, RCA (Front/Rear)
1 Pair RCA (Subwoofer) Nickel-Plated
High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant

· OPERATION MODE:Four channel and with dedicated subwoofer channel
Unique design allows this amplifier to power full range speakers with a dedicated channel for a subwoofer.

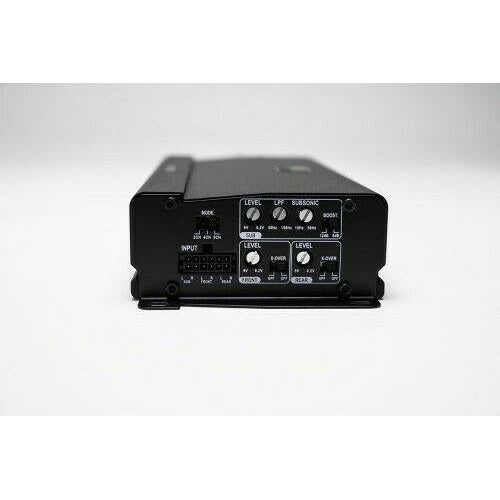

· CROSSOVER / SIGNAL SHAPING: Switched FULL / LPF / HPF
Complete control of amplifier signal, essential when using two or more amplifiers

· CLASS / TOPOLOGY: Full Range Class D
Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.

· OUTPUT DEVICES TECHNOLOGY: PWM MOSFET Power Supply
Stable power through the PC board with minimal heat generation

· HEAT SINK: Aluminum
Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration

· POWER SUPPLY: Simpatico Coil Design
The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices

· BASS REMOTE:Included
Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.

· OUTPUT CONNECTIONS: Quick Dissconect Wires, RCA Connections
Quickly remove amplifer when you are putting machine up for the winter of as a security precaution

· CONNECTIONS TYPE: Nickel-plated connections
Nickel plated corrosion resistant connections

· DIAGNOSTICS: Three-stage protection circuits
Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel

· MARINIZED / WATERPROOF: YES
Water resistant for durability in any environment

Specs:

· CLASS
Full Range Class D

· VARIABLE VOLTAGE
0.2V~9V

· SIGNAL TO NOISE RATIO
>90dB

· FREQUENCY RESPONSE
20Hz-20kHz

· CROSSOVER TYPE
N/A

· CROSSOVER FREQUENCY RANGE
CH1 & CH2
Switched HP/ Full

· CROSSOVER FREQUENCY RANGE
CH3 & CH4
Switched HP/ Full

· CROSSOVER FREQUENCY RANGE
CH5
LPF 50Hz-150Hz

· BASS BOOST
0-12dB@45Hz

· SUBSONIC FILTER
60Hz

· POWER @ 2-OHMS
4 x 80W + 1 x 200W

· POWER @ 4-OHMS
4 x 40W + 1 x 100W

· TOTAL CHANNELS
5

· AUDIO INPUTS
RCA

· POWER TERMINAL 12V/GND
Molex 10 ga

· SPEAKER TERMINAL WIRE GAUGE
Molex Plug Connector

· FUSING
1 x 40 Amps

· CERTIFICATIONS
Marine & Powersports

· DIMENSIONS
3.70 X 8.46 X 1.77 in
9.4 X 21.5 X 4.5 cm

· WEIGHT
3.35 lbs (1.52 kg)
