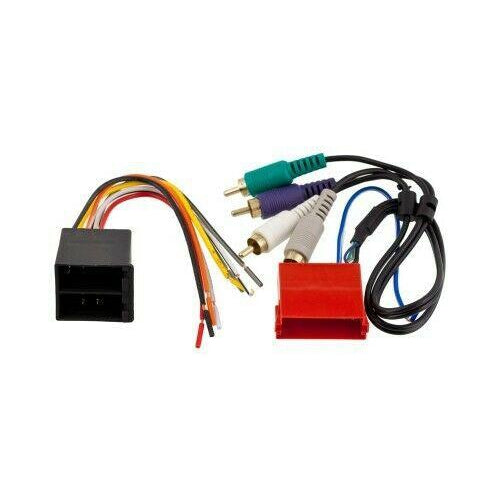

METRA 70-1787 Radio Multi Purpose Connector For AUDI VW 1993-04 AMP INTEGRATION

METRA 70-1787

Aftermarket Radio Wiring Harness (70-1787) by Metra®, with OEM Plug and Amplifier Integration. For aftermarket stereo. Metra preassembled

wiring harnesses can make your car stereo installation seamless, or at least a lot simpler. With precrimped ends and prepopulated connectors,

your wiring task will be highly simplified. These harness connectors will mate with your components exactly like the OEM connectors.

Features:

Mates the aftermarket stereo with car wiring harness

Allow seamless integration of custom stereo with vehicle

Secure connection to existing connectors avoids splicing

Pin-to-pin compatibility

Color-coded wires

Amplified and bose systems

20 way connector plugs into multi colored harness in car with RCA plugs

4 RCA Plugs to mate to aftermarket radio's pre-amp output

One 16-Pin connector and one 20-Pin connector (plugs into multi-colored connectors in vehicle)

Allows for the installation of an aftermarket radio using the existing factory wiring and connectors

No cutting of factory wiring needed

Uses the power wire side of the 70-1784 front speaker output only on some models

Connections:

Yellow - 12V Constant

Red - 12V Accessory

Black - Ground

Orange - Dash Light Dimmer/Illumination

White - Left Front Speaker (+)

White with Black Stripe - Left Front Speaker (-)

Gray - Right Front Speaker (+)

Gray with Black Stripe - Right Front Speaker (-)

Blue with White Stripe - Amp Turn-on Wire

Vehicle Compatibility:

For Audi

A4 1996-2001

A6 1997-2003

A8 1997-2003

S4 2002-2008

S6 2001

For Porsche

911 Series 1999-2001

Boxster 1997-2004

For Volkswagen

Beetle 1998

Golf 1986-1997

Jetta 1993-1997
