Metra 95-5817 2 DIN Install Stereo Dash Kit For 1995-2008 Ford Lincoln Mazda

Metra 95-5817 Double DIN Install Stereo Dash Kit

Install a double DIN (2DIN) radio or a single DIN radio and EQ combo into

select 1995 and up Ford, Lincoln, Mercury, and Mazda vehicles using the Metra 95-5817.

Made of high-grade, paintable ABS construction and built to precision tolerances to result in a gapless fit.

FEATURES:

· Designed specifically for the installation of double DIN radios or two singleDIN radios

· High grade ABS plastic contoured and textured to compliment factory dash

· All necessary hardware to install an aftermarket radio

· Comprehensive instruction manual

· Double DIN unit provision

· Stacked ISO mounts units provision

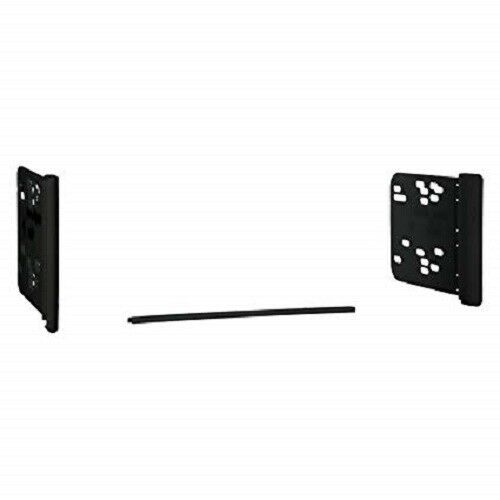

· Includes: • A) Double DIN trim brackets • B) Filler bar

NOTE: Sub dash modifications are necessary to use
this dash kit. You will need to trim the sub dash to
gain suitable depth and height.

NOTE: Once the kit is snapped in it cannot be
removed without dash panel removal.

· WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness: 70-1770 Ford harness 1985-2004
70-1771 Ford harness 1998-up
70-5520 Ford harness 2003-up
70-5521 Ford amp harness 2003-up
70-5601 Ford tuner bypass harness 1995-1998
70-5600 Ford harness 1995-1998
Antenna Adapter: Not required
