Metra XSVI-6523-NAV 2013 - and Up Chrysler CAN Bus interface with Navigation outputs

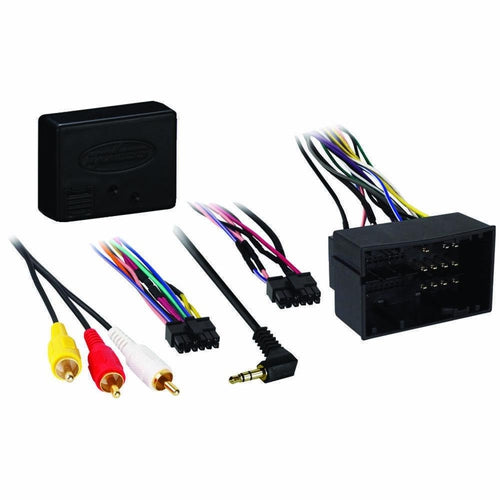

Unit includes: A) Interface, B) 16-pin to 12-pin Power and speaker harness, and
Instruction manual
Interface Features:
Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2013 - and Up Can-Bus Chrysler vehicles
Provides accessory output for databus signals (12-volt 10-amp capable output)
Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
Interface is designed to be used with factory amplified and non-amplified systems
Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
Retains back-up camera (if through the OE radio)
Retains the use of the 3.5mm AUX jack
USB firmware up-datable
Retains balance and fader
Connections:
Yellow - 12V Constant
Red - 12V Accessory
Black - Ground
Orange - Radio illumination (+)
Blue with White stripe - Amplifier turn on
Light Green - Parking brake
Blue with Pink Stripe - VSS (Vehicle speed sensor)
Green with Violet Stripe - Reverse trigger (+)
Green - Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White - Left Front Speaker (+)
White with Black Stripe - Left Front Speaker (-)
Purple - Right Rear Speaker (+)
Purple with Black Stripe - Right Rear Speaker (-)
Gray - Right Front Speaker (+)
Gray with Black Stripe - Right Front Speaker (-)
Yellow RCA - Factory back up camera input to aftermarket radio
White RCA - Factory 3.5mm Left audio jack to aftermarket radio input
Red RCA - Factory 3.5mm Rightt audio jack to aftermarket radio input
Kit Components:
A) XSVI-6523-NAV interface
B) 16-pin to 12-pin Power and speaker harness
C) Instruction manual
Vehicle Applications:
FOR Chrysler:
2015 - and Up 200 LX
FOR Dodge:
2013 - and Up Dart with small factory screen
FOR Fiat:
2014 - and Up 500L
FOR Jeep:
2014 - and Up Cherokee Sport
FOR Ram:
2013 - and Up Ram 1500 with small screen
2013 - and Up Ram 2500 with small screen
2013 - and Up Ram 3500 with small screen
2013 - and Up Ram 3500 Chassis Cab with small screen
2013 - and Up Ram 4500 Chassis Cab with small screen
2013 - and Up Ram 5500 Chassis Cab with small screen
2014 - and Up Promaster with 5 inch screen or factory navigation
2015 - and Up Promaster City
FOR Volkswagen:
2009 - 2013 Routan
