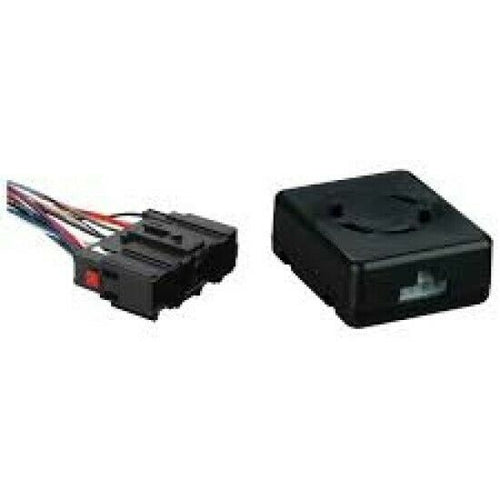

METRA LC-GMRC-LAN-03 Radio Module Interface Interface For HHR / SOLSTICE

AXXESS LC-GMRC-LAN-03

Chime Retention Interface with Built-In Speaker (LC-GMRC-LAN-03) by Axxess®. Replacing the stereo in a late-model

GM car has a down side: the seatbelt chime and the turn signal click are actually piped through the stereo and into the speakers.

New stereo = no chime. This module uses a speaker built into the module to generate the chime sound.

Features:

Provides Aaccessory Power (12-volt 10-amp)

Retains R.A.P. (Retained Accessory Power)

Provides NAV outputs (parking brake/reverse/speed sense(V.S.S.))

Used in non-amplified models or when bypassing a factory amplifier

Used in models without OnStar

Retains all warning chimes

High-Level speaker input

Retains balance and fade

Micro B USB updatable

Connections:

Yellow – 12V Constant

Red – 12V Accessory

Black - Ground

Orange – Dash Light Dimmer/Illumination

Green – Left Rear Speaker (+)

Green with Black Stripe Left Rear Speaker (-)

White – Left Front Speaker (+)

White with Black Stripe – Left Front Speaker (-)

Purple – Right Rear Speaker (+)

Purple with Black Stripe – Right Rear Speaker (-)

Gray – Right Front Speaker (+)

Gray with Black Stripe – Right Front Speaker (-)

Includes:

GMRC-LAN-03 Interface

10 pin to 30 pin GM harness

VEHICLE COMPATIBILITY:

FOR Chevy

Cobalt 2007-2010

HHR 2006-2011

Malibu 2008-2012

FOR Pontiac

G5 2007-2009

G6 2009-2010

Solstice 2006-2009

FOR Saturn

Aura 2007-2009

Sky 2007-2009
