NEW METRA GMOS-MOST-01 Axxess Most Amp Retention Interface For Select Gm 2014 &

Axxess GMOS-MOST-01 MOST-Bus Interface for 2014 - and Up GM Vehicles

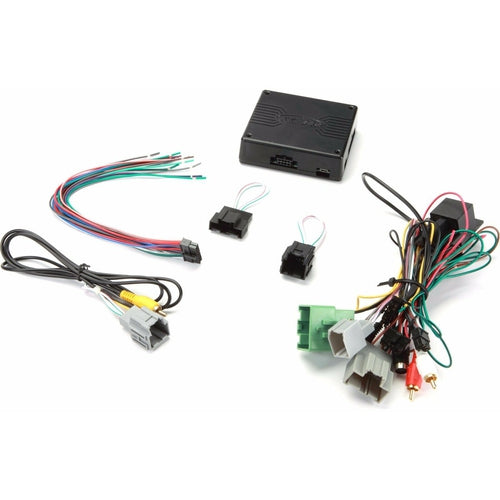

Unit includes: GMOS-LAN-09 Interface control box

GMOST-MOST-01 harness

16 pin wire harness with stripped leads

12-pin harness with a yellow RCA jack

10-pin jumper harness

12-pin jumper harness and Instruction manual

The GMOS-LAN-09 interface is designed to allow you to install an aftermarket radio and have it interface with the OEM vehicle

and M.O.S.T. Data-bus system. The GMOS-LAN-09 is designed for 2014 and Up GM vehicles that use the M.O.S.T. bus system.

The interface retains full functionality of the OnStar and Bluetooth system as well as all safety and warning chimes.

The GMOS-LAN-09 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio

after the vehicle is turned off as long as you don't open the doors. This interface has the capability of adjusting the overall output volume.

In addition to these features, the GMOS-LAN-09 now has the ability to retain the 3.5mm auxiliary input jacks and the factory back

up camera and even has required outputs for the installation of a navigation radio.

Features:

Easily remove the factory stereo in an otherwise impossible situation

and replace it with an aftermarket stereo and retain all of the factory functions

Provides accessory (12-volt 10-amp)

Retains R.A.P. (retained accessory power)

Retains the factory OnStar system

Retains the factory Bluetooth system

Retains the factory back up camera if equipped

Used in M.O.S.T. amplified audio systems

Retains chimes

Retains factory 3.5 mm auxiliary input

Provides NAV outputs (parking brake, reverse, mute, V.S.S.)

ASWC-1 harness included (ASWC-1 not included)

Retains OnStar and OE Bluetooth if equipped

Adjustable volume for chimes and OnStar

Interface is designed for non-amplified audio systems

High level speaker input

USB updatable

Retains balance and fade

Connections:

Yellow – 12V Constant

Red – 12V Accessory

Black - Ground

Orange/White – Dash Light Dimmer/Illumination

Blue/White – Amplifier turn on

Brown - Mute connection

Light green – (-) Parking brake lead

Blue/Pink – VSS (Vehicle speed sensor)

Black/Yellow - OnStar volume adjustment

White RCA - Left Auxiliary input

Red RCA - Right Auxiliary input

Green/Purple – (+) Reverse trigger

Green – Left Rear Speaker (+)

Green with Black Stripe Left Rear Speaker (-)

White – Left Front Speaker (+)

White with Black Stripe – Left Front Speaker (-)

Purple – Right Rear Speaker (+)

Purple with Black Stripe – Right Rear Speaker (-)

Gray – Right Front Speaker (+)

Gray with Black Stripe – Right Front Speaker (-)

Fitments:

for Chevrolet:

2014 - and Up Silverado 1500

2015 - and Up Silverado 2500

2015 - and Up Silverado 3500

2015 - and Up Suburban

2015 - and Up Tahoe

for GMC

2015 - and Up Canyon

2014 - and Up Sierra 1500

2015 - and Up Sierra 2500

2015 - and Up Sierra 3500

2015 - and Up Yukon
