Rolls SX21 Tiny Two-Way Crossover w/Level Controls NEW
Rolls SX21 Tiny Two-Way Crossover w/Level Controls
The SX21 is a 24dB/Octave two-way frequency crossover intended for sound reinforcement applications. It has a 1/4" input,

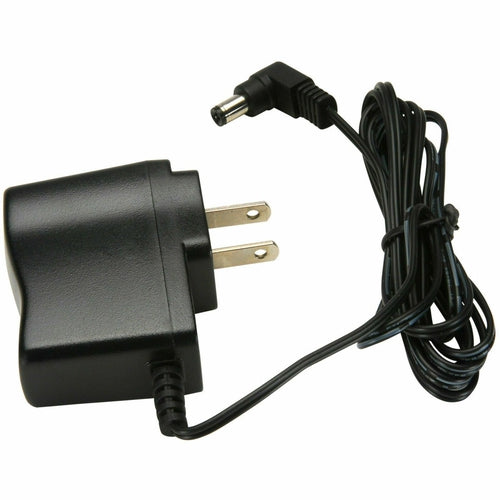

Low and High frequency 1/4" Outputs, a single variable Crossover Frequency, separate Low and High Output level controls. It is powered by an included adapter.
Input Impedance: 10K Ohms
Output Impedance: 1K Ohms
Headroom: +10 dBV
Power Requrements: 12 - 16 VDC 150 mA (Rolls part number PS27)
Size: 4.25" x 3.625" x 1.5"
Weight: 1 lb.
24 dB/Octave rolloff
Mono 2-Way crossover
50Hz - 2.5kHz range
1/4" unbalanced Input and Outputs
External power supply for low noise operation
