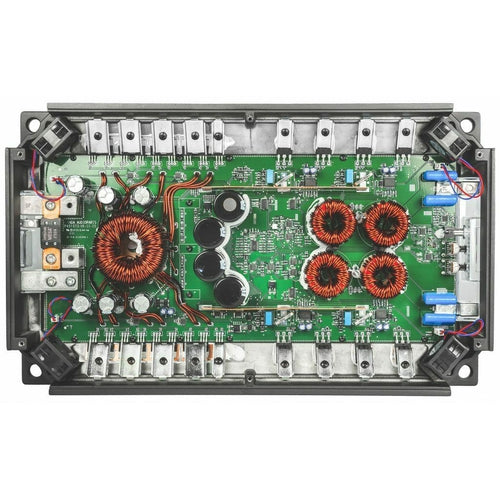

VIKING8800.1 BANDA One Channel 9500 Watts Max @ 1 Ohm Car Audio Mono Amplifier
VIKING8800.1 BANDA One Channel 9500 Watts Max @ 1 Ohm Car Audio Mono Amplifier
Regular price
$599.00
Regular price
Sale price
$599.00
Unit price
/
per
Couldn't load pickup availability
BRAND NEW
| VIKING8800.1 |
@ 1 Ohm Car Audio Mono Amplifier w/Highpass Filter and Low Pass Filter
Class - D
Total Power 14,4 @ 1 Ohm - 9500 WRMS
Total Power 14,4 @ 2 Ohms - 7400 WRMS
Total Power 12,6 @ 1 Ohm - 8000 WRMS
Total Power 12,6 @ 2 Ohms - 6100 WRMS
Efficiency @ 2 Ohms - 83%
Efficiency @ 1 Ohm - 73%
Input Voltage -9 – 15V
Input Impedance - 22K Ohms
THD+Noise -<1%
Input Sensitivity -160 to 600mV
SNR -80dB
Frequency Response -18 to 8kHz (-3dBs)
HPF (High Pass Filter) -20 – 80Hz @ 12dB/octave Linkwitz-Riley
LPF (Low Pass Filter) -80 – 8kHz @ 12dB/octave Linkwitz-Riley
Recommended Fuse - 400 A
Current at Rest - 4.5 A
Average Current Draw (Sinusoidal) - 920 A
Average Current Draw (Music) - 400 A
Power Wire Gauge (min. Recommended) - 50mm / 0 AWG
Speaker Wire Gauge (min. Recommended) - 2 x 6mm / 2 x 3 AWG
Weight (Lb) -16.9
Height (in) -2.4
Width (in) -10.6
Depth (in) -17.7
BRAND NEW
FREE GROUND SHIPPING
