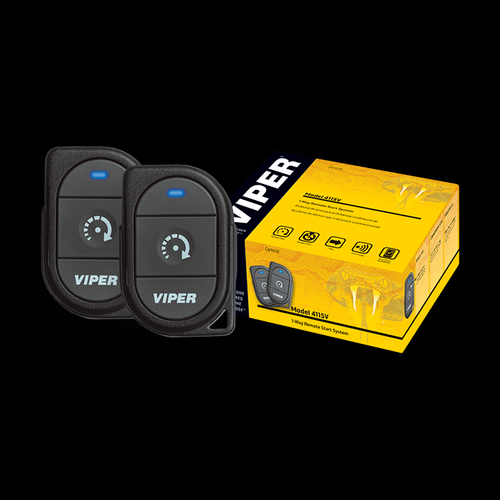

Viper 4115V Basic 1-Way One Button Remote Start System With Directed DB3

Viper 4115V With DB3

The convenience of remote start in one of the smallest Viper remotes ever. Perfect for use with OEM keyless

remotes integrated into the OEM key. Get the longer remote start range you’ve been looking for!

Specifications:

· Remotes: 2 1-button 1-Way
The number and type of remotes that come with the system.

· Range: Up to 1/4 Mile
Viper systems use Radio Frequency (RF) technologies to communicate with your vehicle, and these technologies

each have a typical operating range. Range varies by the technology used, but also because of environmental factors

such as interference from other RF sources. Currently Viper systems with the longest range use Spread Spectrum Technology (SST) with range up to 1 mile.

· Remote Start:
Remote Start allows you to start your engine by remote control, allowing your vehicle's climate control system

to warm up or cool down the cabin before you get in. Range is important with remote start (your vehicle might be

parked down the street, or at the far end of a parking lot) and 2-Way remote start systems are preferred (because they confirm that your vehicle has started.)

· SmartStart Compatible
A Viper SmartStart module can be added to this system to make your vehicle SmartStart ready.

· Encryption: 66-Bit
Clone-safe, anti-Code Grabbing technology comes standard on every Viper system.

· Domelight Supervision
A great safety feature: illuminates your vehicle's dome light for 30 seconds when you disarm your security system or unlock the doors of your remote start system.

· # of Auxiliary Channels: 0
Auxiliary channels are electrical outputs controlled by your keychain remote, which your installer can interface

with systems in your car to allow you to operate them by remote control. Additional parts or labor will be required.

Directed DB3

Description:

Get more control over your vehicle's security system

Many cars today feature an immobilizer security system that won't allow the car to start without first sensing the presence of a chip imbedded

in the key or key fob. Directed's DB3 module tells your vehicle through its databus that it's okay for an aftermarket remote start or security

system to start the engine or unlock the doors without that chip.

The Directed DB3 module works in even more vehicles than the original DB-ALL module or its successor the DBALL2, and is compatible

with all Viper, Directed, and Python security systems, as well as most other brands.

Simplifies your security wiring

A single data-to-data harness connects your Viper (or other Directed) system to the DB3, so you don't have to hard wire your security

system to a lot of door locks, solenoid releases, and other sensors — you'll save a huge amount of installation time. The DB3 module

usually connects to your vehicle through 2 to 6 hardwired data connections, but we do carry some vehicle-specific T-Harnesses that

make that connection much easier (call for details). Your DB3 will come pre-programmed for your specific vehicle, so you'll have total

control over locking and unlocking doors, starting the engine, arming and disarming the factory alarm,

and any other computerized function your vehicle can perform.

Even simpler installation for remote start-ready vehicles

Many vehicles are remote-start-ready. If you own one of these, you probably won't even need a separate remote start system

— just use a Directed DB3 and a T-Harness (if available). To activate the remote start, you'll need to press "Lock" three times

on your factory remote. For extended range, add a Viper SmartStart module to control your vehicle remotely by smartphone.

Product highlights:

remote start/security integration module

requires splicing into vehicle's factory wiring (generally 2-6 connections)

allows easier interface with over 3000 different vehicles

Whats in the box:

DB3 Data-bus interface module

25" Harness (Red 12-pin Molex connector on one end)

26" Harness (Red 4-pin Molex connector on one end and a white 4-pin Molex connector on other end)

25" Harness (Blue 14-pin Molex connector on one end)

25" Harness (Black 10-pin Molex connector on one end)

Warning sticker
