ZMX52 ALTO 5-CHANNEL COMPACT MIXER NEW

ZMX52 ALTO 5-CHANNEL COMPACT MIXER NEW

Regular price $78.50
Regular price Sale price $78.50
Sale Sold out
BRAND NEW

ZMX52 ALTO

5-CHANNEL COMPACT MIXER

  • Professional Mixing Features
The ZEPHYR ZMX52 is a 5-channel mixer with all the essential inputs, outputs, and EQ for solo gigs and multimedia studios. It features one mono channel with a microphone input (with Phantom Power), balanced TRS input, and a two-band EQ. It also delivers two stereo channels with two balanced TRS inputs each. There's even two-track inputs for things such as audio playback. The ZMX52 is the perfect compact take-anywhere professional mixer.
  • Versatile Inputs and Outputs
The ZMX52 is the perfect mixer for quick, easy setups with no hassle. Not only can you can plug dynamic, condenser, and wireless microphones into the first channel, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. What's more, you can easily plug in your MP3 player, CD players, or audio from a DVD player into the CD/TAPE input. But, you also have a dedicated stereo output to send to a recorder in addition to the main stereo outputs. Choose the ZMX52 as the audio central command for your live performances, home studio, or video suite.
  • High headroom, low noise
Just because the ZMX52 is the smallest, most affordable mixer we make doesn't mean you have to make sacrifices. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. All Alto Professional ZEPHYR ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time.
  • Visualize your mix
We designed every ZEPHYR ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.
  • Six total inputs with a phantom powered XLR jack on channel 1
  • 1/4” Main, Tape, Headphone & Aux outputs for flexible signal routing
  • Perfect for musicians looking for a compact, capable mixer
  • Mic input channel with gold plated XLR and balanced line input
  • Two stereo input channels with balanced TRS jack
  • High headroom circuitry offering extra dynamic range
  • Ultra-low-noise discrete mic preamp with Phantom power
  • Balanced inputs for highest signal integrity and low-noise operation

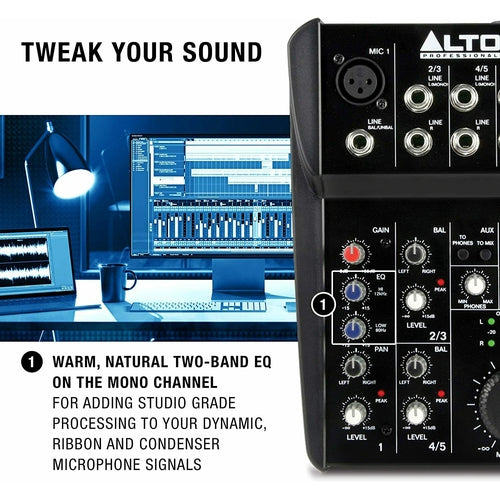

  • Warm, natural two-band EQ on mono channel
  • 2-Track inputs w/assignable bus: main mix or headphone out
  • Highly accurate four-segment bar graph meters
  • Aux inputs/outputs for external audio source integration
  • Peak LEDs on each channel
Mono channel (Ch. 1)
  • Microphone Input: Electronically balanced, discrete input configuration
  • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
  • Distortion( THD&N): ≦0.005% at +4 dBu, 1 kHz
  • Gain range: 0 dB to 44 dB (Mic)
  • Maximum Voltage Gain: 74 dB
  • SNR (Signal to Noise Rate): ≧110 dBu
  • Phantom power (Mic Pin2/Pin3 and Pin1): +18 V
  • Line Input: Electronically balanced
  • Frequency Response: 20 Hz to 22 kHz, +/- 1 dB
  • Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
  • Gain range: 15 dBu to 30 dBu
Stereo channels (Ch. 2 - 5)
  • Line Input: Electronically balanced
  • SNR (Signal to Noise Ratio): ≧110 dBu
  • Frequency Response: 20 Hz to 22 kHz, +/- 1dB
  • Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
  • Gain range: 0 dBu
  • Maximum Voltage Gain: 30 dB Ch. Line → Main Mix out
Impedance
  • Microphone Input: 3.9 kOhms
  • All Other Input: 10 kOhms or Greater
  • Tape Out: 1 kOhms
  • All Other Outputs: 120 Ohms
Equalization
  • Mono channel: High ±15 dB @ 12 kHz, Low ±15 dB @ 80 Hz
Crosstalk
  • Adjacent Input: ≦-80 dB @ 1KHz (Ch. 1 - 6)
  • Input to Output: ≦-75 dB @ 1KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right)
Main Mix Section
  • Output level: 0dBu Unbalanced, 1/4" Jacks
  • Max out: +22dBu Unbalanced, 1/4" Jacks
  • Noise (Bus noise): ≦-90 dB @ 20 Hz - 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)
Power and Dims
  • Power Supply: 18 V, 500 mA
  • Rated Power Consumption: 9 W
